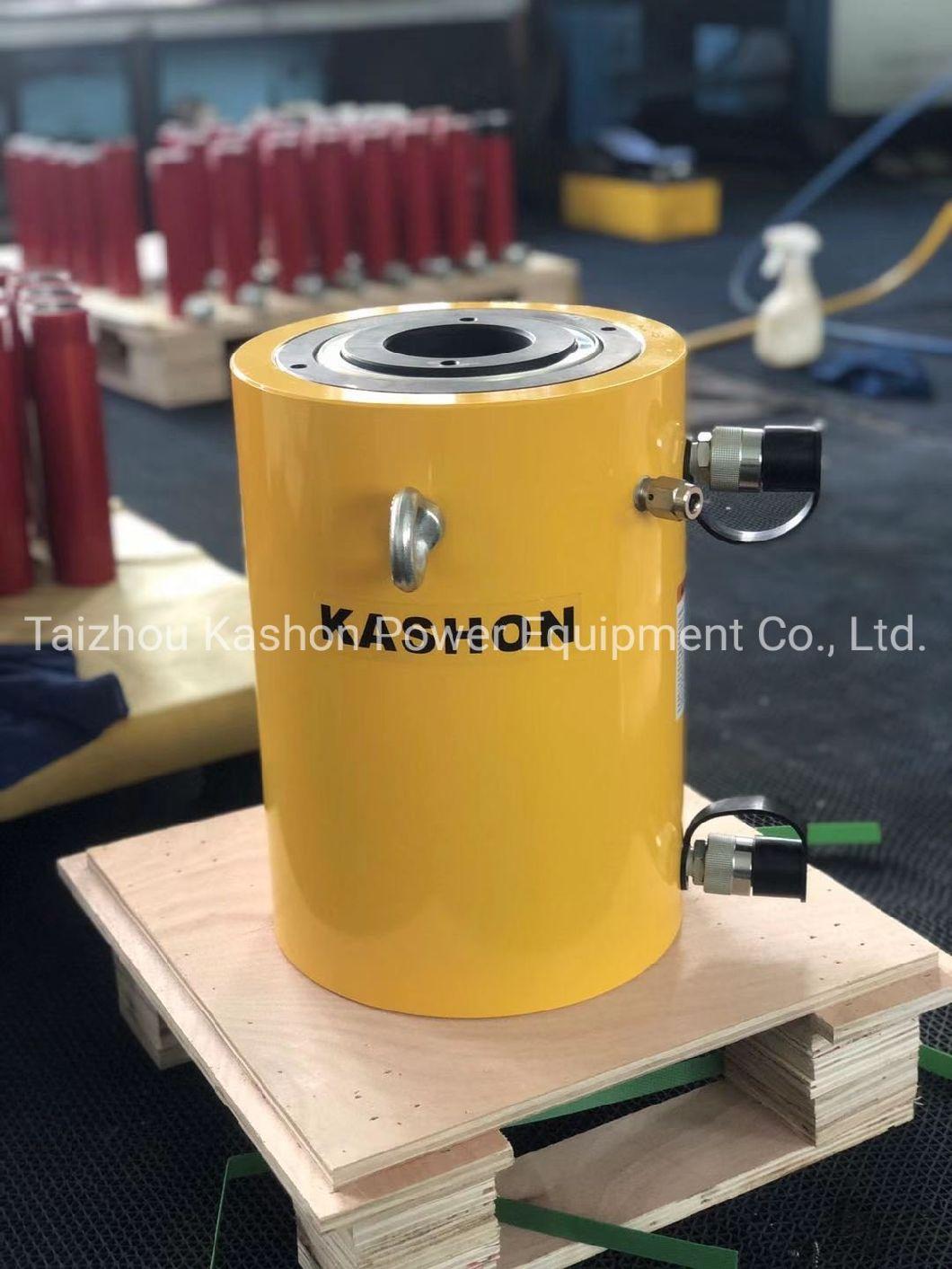

Double Acting Hollow Plunger Hydraulic Cylinder
Taizhou Kashon Power Equipment Co., Ltd.- After-sales Service:1 Year
- Warranty:1 Year
- Type:Hydraulic Cylinder Jack
- Structure:Hydraulic Cylinder Jack
- Capacity (Load):Max.150 Ton
- Power Source:Hydraulic
Base Info
- Model NO.:KSRRH
- Max Height:>400mm
- Certification:CE, ISO 9001:2008, TUV
- Condition:New
- Color:Follow Customer(Yellow,Red,Green)
- Working Pressure:700 Bar
- Coll Height:3165-460mm
- Stoke:38-257mm
- Characterstic:Double Acting
- Application:Lifting, Pushing, Pulling
- OEM Service:Can Put Customers′ Brand
- Transport Package:Plywood Case
- Specification:Steel
- Trademark:Kashon
- Origin:Jiangsu, China (Mainland)
- Production Capacity:50 Sets,Month
Description
Model NumberCylinder
Capacity Stroke Cylinder
Effective Area Oil
Capa-
city Coll.
Height Ext.
Height Out-
side
Dia. Center Hole
Dia. Weight cm2 cm3 ton mm Adv. Retr. Adv. Retr. mm mm mm mm kg RRH-307 30 178 46,6 30,4 829 541 330 508 114 33,3 21 RRH-3010 258 46,6 30,4 1202 784 431 689 114 33,3 27 RRH-603 60 89 82,3 54,2 733 482 247 336 159 53,8 28 RRH-606 166 82,3 54,2 1366 900 323 489 159 53,8 35 RRH-6010 257 82,3 54,2 2115 1393 438 695 159 53,8 45 RRH-1001 95 38 133 87,4 505 333 165 203 212 79,2 33 RRH-1003 76 133 87,4 1011 666 254 330 212 79,2 61 RRH-1006 153 133 87,4 2035 1337 342 495 212 79,2 79 RRH-10010 257 133 87,4 3420 2246 460 717 212 79,2 106 RRH-1508 145 203 204,1 102,6 4144 2083 349 552 247 79,2 111 Photos:
