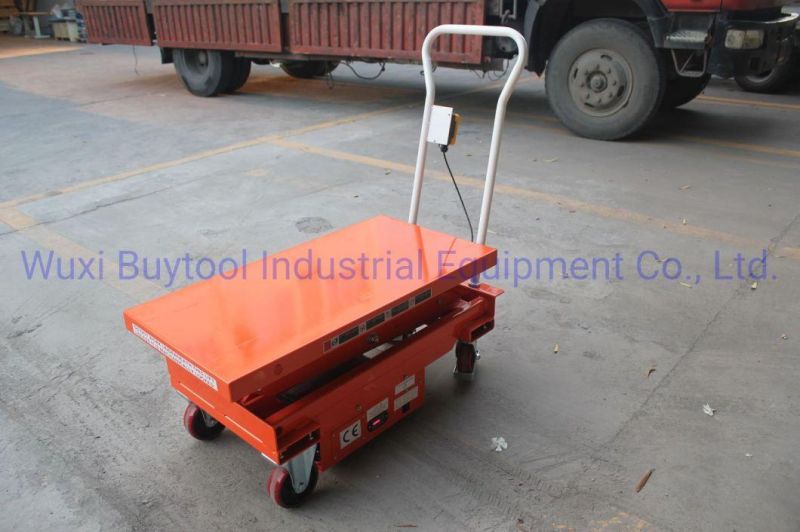

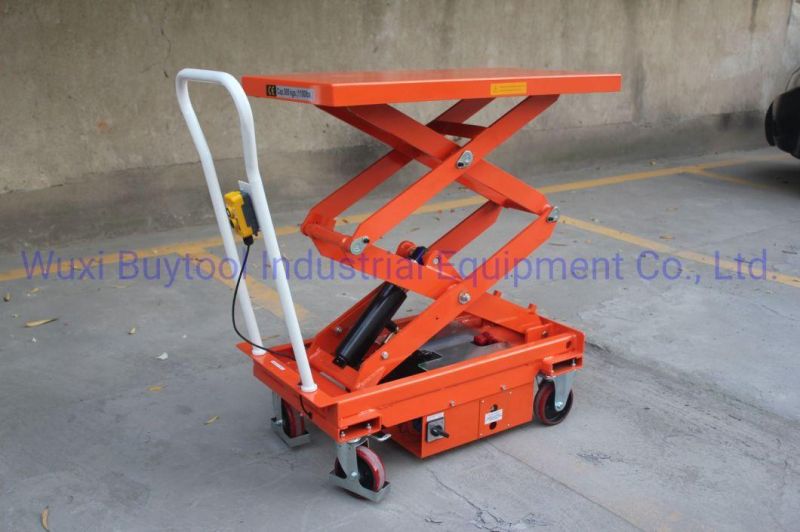

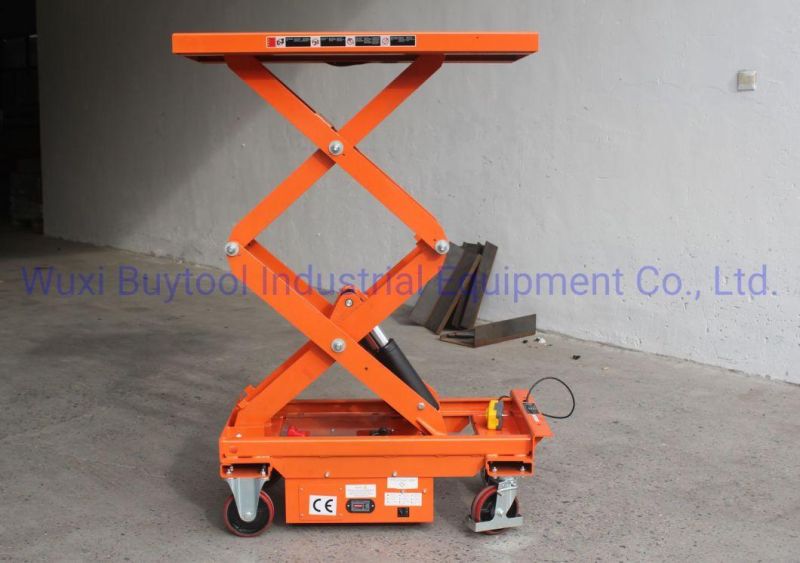

800W Mobile Lift Tables Portable Material Handling Lift Table Electric DC 1010X520mm

Wuxi Buytool Industrial Equipment Co., Ltd.
  • After-sales Service：One Year
  • Warranty：One Year
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
  • Lift Mechanism：Scissor Lift
  • Carrying Capacity：Middle-Level
  • Moves：Moving

Base Info

  • Model NO.：ES30D, ES50D
  • Driven Type：Hydraulic
  • Running Mode：Moving
  • Certification：CE, ISO 9001
  • Capacity：800kg
  • Min. Height：495mm
  • Max. Height：1618mm
  • Table Size：1010*520mm
  • Color：Customizable
  • Net Weight：198kg
  • Type：Mobile Lift Table
  • Certificate：CE Approved
  • Battery：12V,54ah
  • Transport Package：1PC,Wooden Case
  • Specification：customizable
  • Trademark：Buytool
  • Origin：Made in China
  • HS Code：8428909090
  • Production Capacity：3000PCS,Month

Description

ModelES30ES50ES75ES100ES30DES50DES80DCapacitykg(lb.)300(660)500(1100)750(1650)1000(2200)300(660)500(1100)800(1760)Table sizemm(in.)1010*520(40*20)Table height(Min./Max.)mm(in.)450/950



(19.5/37.4)

480/950



(19/37)

495/1600



(20/63)

495/1618



(20/64)

510/1440



(20.1/57)

Lifting Cycle Fully Charged 655545404540Wheel Dia.mm(in.)150(6)Lifting/Lowering Timesecond15/2215/1815/20Overall sizemm(in.)520*1230(20*50.2)Net Weightkg(lb.)140(308)148(325.6)154(338.8)169(371.8)183(402.6)198(435.6)215(473)800W Mobile Lift Tables Portable Material Handling Lift Table Electric DC 1010X520mm800W Mobile Lift Tables Portable Material Handling Lift Table Electric DC 1010X520mm800W Mobile Lift Tables Portable Material Handling Lift Table Electric DC 1010X520mm800W Mobile Lift Tables Portable Material Handling Lift Table Electric DC 1010X520mm800W Mobile Lift Tables Portable Material Handling Lift Table Electric DC 1010X520mm
FAQ:

Q: What about the quality of the products?
A: Our products are CE approved, and we have five inspection steps before shipment:
1. Inspect the raw material in accordance with ISO9001;
2. Strict inspection in the whole production process;
3. Load limit test when assembling finished;
4. 100% strict inspection of products before shipment;
5. If needed, inspection by buyer.

Q: How long is the quality guarantee?
A: All of our products carry one-year warranty.

Q: What's the leadtime?
A: Normally 30 days.
If you order more than 5 itmes mixed in one container, it will be 45 days.
If you order one item in one container, it will be 20 days.
