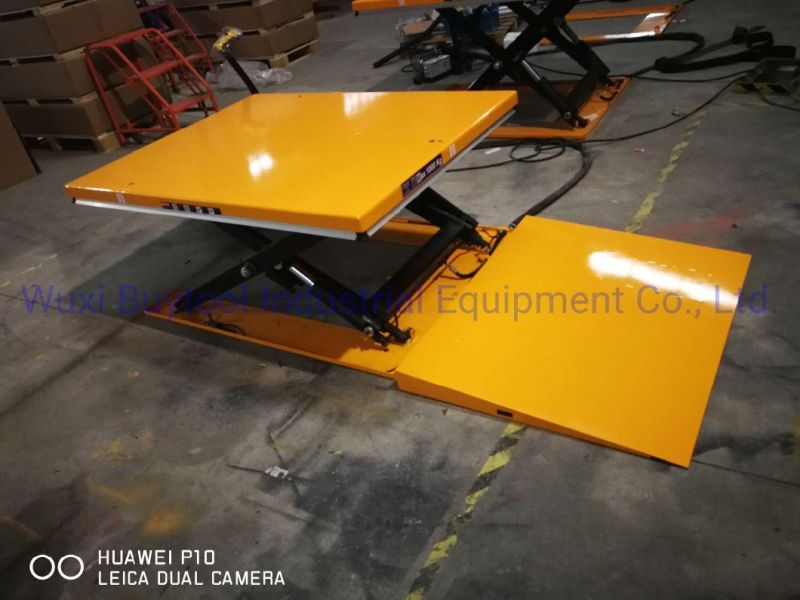

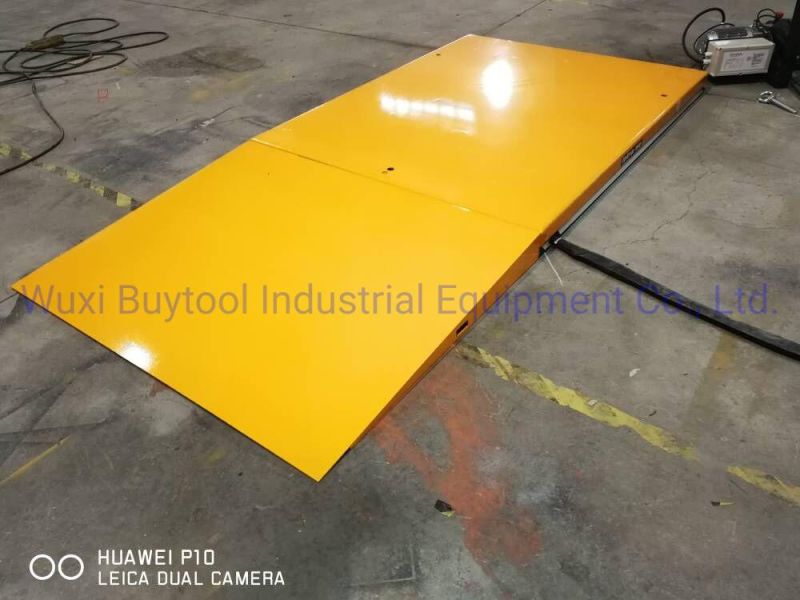

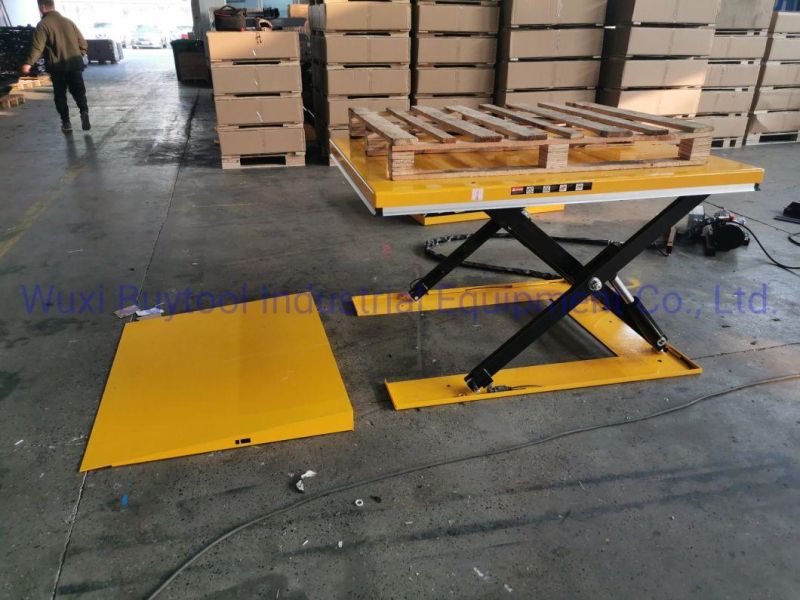

775mm Height Low Profile Lift Tables Mobile Low Profile Pallet Lift Table Safety

Wuxi Buytool Industrial Equipment Co., Ltd.
  • After-sales Service:More Than 5 Years
  • Warranty:1 Year
  • Application:Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
  • Lift Mechanism:Scissor Lift
  • Carrying Capacity:Weight Level
  • Moves:Stationary

Base Info

  • Model NO.:HY
  • Driven Type:Hydraulic
  • Running Mode:Stationary
  • Feature:Explosion-Proof
  • Certification:CE
  • Capacity:1000kg, 1500kg, 2000kg
  • Min. Height:85mm
  • Max. Height:860mm
  • Lift Time:25-35s
  • Color:Customizable
  • Net Weight:300-505kg
  • Scissor:Single Scissor Lift Table
  • Type:Stationary Lift Table
  • Accessories:Ramp
  • Power:115V,220V,380V
  • Product Name:Pallet Lift Table
  • Delivery Time:One Month
  • Transport Package:1PC,Wooden Case
  • Specification:customizable
  • Trademark:Buytool
  • Origin:Made in China
  • HS Code:8427900000
  • Production Capacity:3000PCS,Month

Description

ModelCapacityMin. /Max. HeightPlatform Sizes (LxW)Base Sizes (LxW)Lift TimePower PackNet Weight (Kg)(mm)(mm)(mm)(s) (Kg)HY1001100085/8601450×11401325×107425115V/220V/380V/460V357HY1002100085/8601600×11401325×107425115V/220V/380V/460V364HY1003100085/8601450×8001325×73425115V/220V/380V/460V326HY1004100085/8601600×8001325×73425115V/220V/380V/460V332HY1005150085/8601600×10001325×73425115V/220V/380V/460V352HY15011500105/8701600×8001325×73425115V/220V/380V/460V302HY15021500105/8701600×10001325×73425115V/220V/380V/460V401HY15031500105/8701600×12001325×73425115V/220V/380V/460V415HY20012000105/8701600×12001427×111425115V/220V/380V/460V419HY20022000105/8701600×10001427×73425115V/220V/380V/460V405775mm Height Low Profile Lift Tables Mobile Low Profile Pallet Lift Table Safety775mm Height Low Profile Lift Tables Mobile Low Profile Pallet Lift Table Safety775mm Height Low Profile Lift Tables Mobile Low Profile Pallet Lift Table Safety775mm Height Low Profile Lift Tables Mobile Low Profile Pallet Lift Table Safety



775mm Height Low Profile Lift Tables Mobile Low Profile Pallet Lift Table Safety

FAQ:

Q: What about the quality of the products?
A: Our products are CE approved, and we have five inspection steps before shipment:
1. Inspect the raw material in accordance with ISO9001;
2. Strict inspection in the whole production process;
3. Load limit test when assembling finished;
4. 100% strict inspection of products before shipment;
5. If needed, inspection by buyer.

Q: How long is the quality guarantee?
A: All of our products carry one-year warranty.

Q: What's the leadtime?
A: Normally 30 days.
If you order more than 5 itmes mixed in one container, it will be 45 days.
If you order one item in one container, it will be 20 days.
