• Model NO.：DH-9T
• Maximum Lifting Height：1.5m
• Chain Falls：Lever
• Certification：CE
• Condition：New
• Color：Yellow
• Product Name：Manual Lever Hoist
• Name：Lever Hoist
• Transport Package：Carton, Wooden Case
• Specification：0.5-9 TON
• Trademark：DELE
• Origin：Zhejiang
• HS Code：84251900
• Production Capacity：10000,Year

Basic Info.

Model NO. DH-9T Maximum Lifting Height 1.5m Chain Falls Lever Certification CE Condition New Color Yellow Product Name Manual Lever Hoist Name Lever Hoist Transport Package Carton/ Wooden Case Specification 0.5-9 TON Trademark DELE Origin Zhejiang HS Code 84251900 Production Capacity 10000/Year

Product Description

Hand Operated lever block Lifting Chain Block Manual Chain Hoist
Make by standard:EN13157

1)lever hoist capacity range from 0.75ton to 9 ton.
2)Ergonomic handle design so that the hoist is easy to operate,product suitable for all application.
3)Suspension and load hooks are made of alloy steel 35CRMO,heat treated and fitted with heavy duty safety latches,fitting groove and inspection points.
4)Machined chain sprocket and gears provide smoother,more efficient operation.
5)Hook with safety latch securely can rotate freely 360 degrees.
6)Gears are made of 20CRMNTI,material which ensures toughness and better strength.
7)Fitted with high strength grade 80 alloy steel load chain with galvanized finish for corrosion resistance.(comply with EN
818,safety factor4)
8)Load chain marked with T8 marks as per EN 818-7.
9)Heavy duty guide rollers for avoiding slippage of load chain.
10)Nylon pull ring.
11)All hoists tested at 1.5 times of WLL




Model	HSH	DH0025	DH005	DH0075	DH015	DH030	DH060	HSH-DC090
Capacity	(kg)	250	500	750	1500	3000	6000	9000
Standaed lift	(m)	1.5
Load chain Number of falls		1	1	1	1	1	2	3
Effort requied to lift max load	(n)	260	260	220	240	330	360	380
Runing testload	(kg)	375	750	1125	2250	4500	9000	13500
Load chain diameter × Number of falls	(mm)	4×12	4×12	5.6×16.7	7.1×21.2	9×27	9×27	9×27
Net weight	(kg)	2.2	3.2	5.3	8.6	15.2	23	43
G.W	(kg)	2.4	3.4	5.6	8.9	15.6	23.5	44.5
PACJING SIZE	(cm)	21×12×11	23×13×12	31.5×16×12	35×18×13	48×20×13.5	48×21.5×17	53×28×25
ADD 1M WEIGHT	(kg/m)	0.346	0.346	0.7	1.1	1.8	3.6	5.4

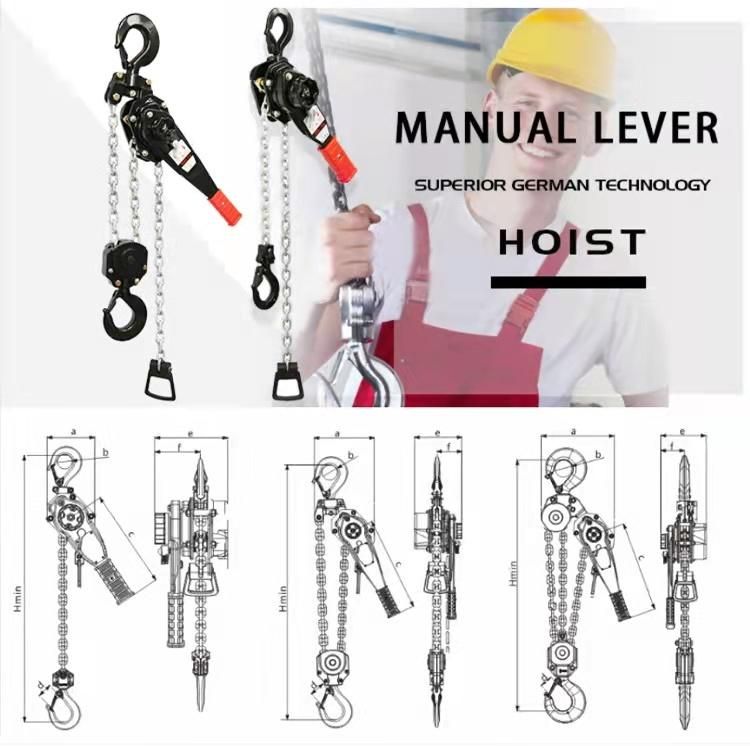

Dimensions(mm)	a	86	95	115	137	169	238	300
	b	155	178	35	42	48	60	70
	c	170	170	239	259	374	374	374
	d	30	35	35	38	46	59	54
	e	79	87	146	162	187	187	187
	f			91	67	98	98	98
	hmin	245	285	320	360	431	500	635

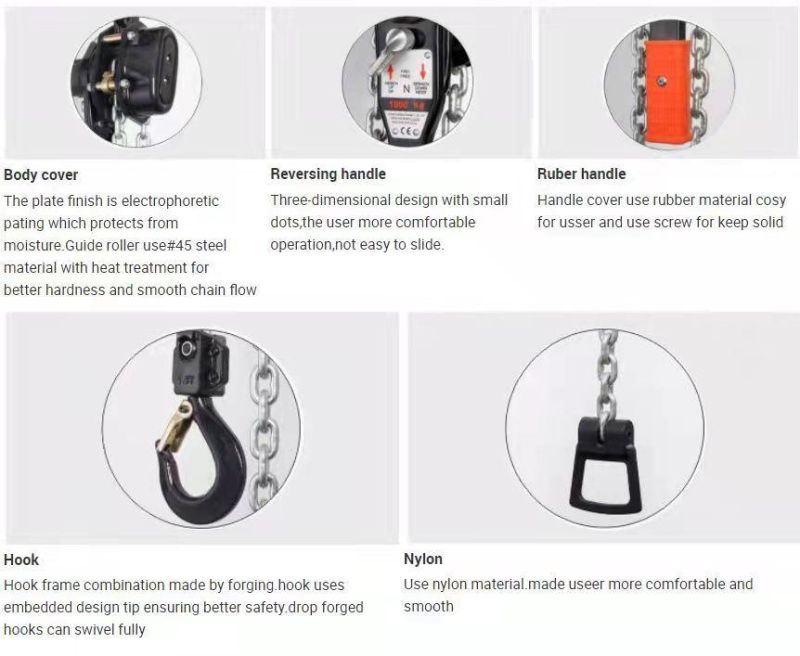

 Details Images

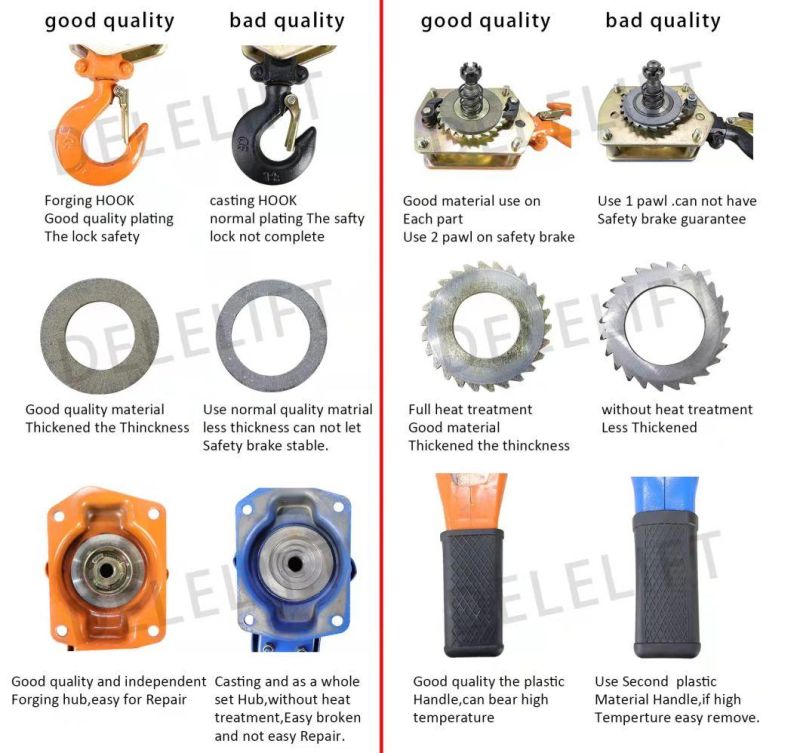

The Quality comparison of spare parts

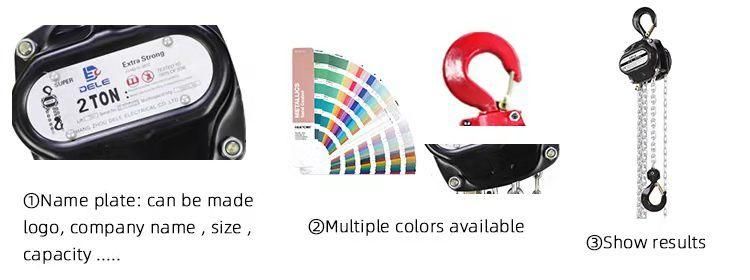

Customized Service

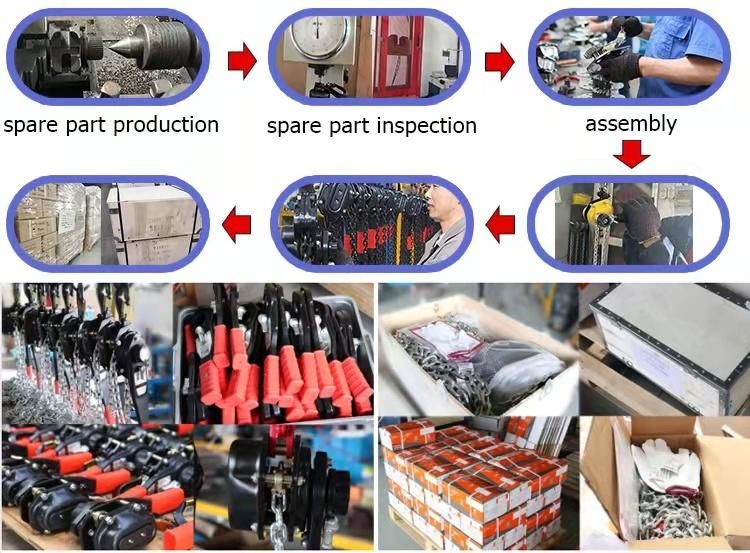

Production process

Certifications

PaymentOur ServiceFAQ

Q1. What's information should I provide to get the price?
A:1. Chain quality? 2.the chain size? 3. the working voltage? 4. the machine frequency?

Q2. What's the lead time for regular order?
A: The normal delivery time is 60-120 days. If you have special needs or if the quantity is greater than 1 set, please explain
when making an inquiry. When we quote, we will provide you with accurate delivery time according to the actual situation.

Q3. The space of my workshop is limited, can the machine is ok for me?
A: We have been specializing in European machines for 20 years. Machines are one of the biggest features of our products.According to your needs, our designers will tailor-made products suitable for your use.

Q4.Can you provide lifting tools?
A: Yes, we can provide any type of lifting tools such as Manual chain hoists, manual lever chain hoist, electric chains
hoists,chains, slings, hooks, electromagnetics, grabs, beams, etc.non-standard fixtures, etc... Welcome to consult

Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q6. Are there any professional technicians to assist our installation?
A: Yes. We have a professional installation team, who has already been to many countries to assist the installation. If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.

Q7. How do you ship the goods and how long does it take to arrive?
A: Small products can be transported by air, and large products can be transported by sea. According to different countries and regions, the specific time will be confirmed according to the actual situation.

Q8. What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment. We'll show you the photos or videos of the products and packages before you pay the balance.

Q9. What is your terms of packing?
A: Generally, we pack our goods in neutral wooden boxes. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters. There is no package of big machines,there are just protective covers.

Q10. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q11. How to proceed an order for hoist?
A: Firstly let us know your requirements or application:Hoists capacity, chains length and others? Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.

Q12. Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.
