• Model NO.：JMC
• Running Mode：Stationary
• Feature：Antiseptic
• Certification：CE, ISO 9001
• Standard：Nonstandard
• Application：Cranes,Construction Site,Boat,Vessel,Shipyard,etc
• Warranty：12 Months
• Motor Type：Yzr225m-6
• Voltage：380V 50Hz 3p or Customized
• Color：Customized
• Transport Package：Wooden Package & Container
• Specification：1900*1620*985mm
• Trademark：NYBON
• Origin：Henan Province, China
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. JMC Running Mode Stationary Feature Antiseptic Certification CE, ISO 9001 Standard Nonstandard Application Cranes,Construction Site,Boat/Vessel,Shipyard,etc Warranty 12 Months Motor Type Yzr225m-6 Voltage 380V 50Hz 3p or Customized Color Customized Transport Package Wooden Package & Container Specification 1900*1620*985mm Trademark NYBON Origin Henan Province, China Production Capacity 100 Sets Per Month

Product Description

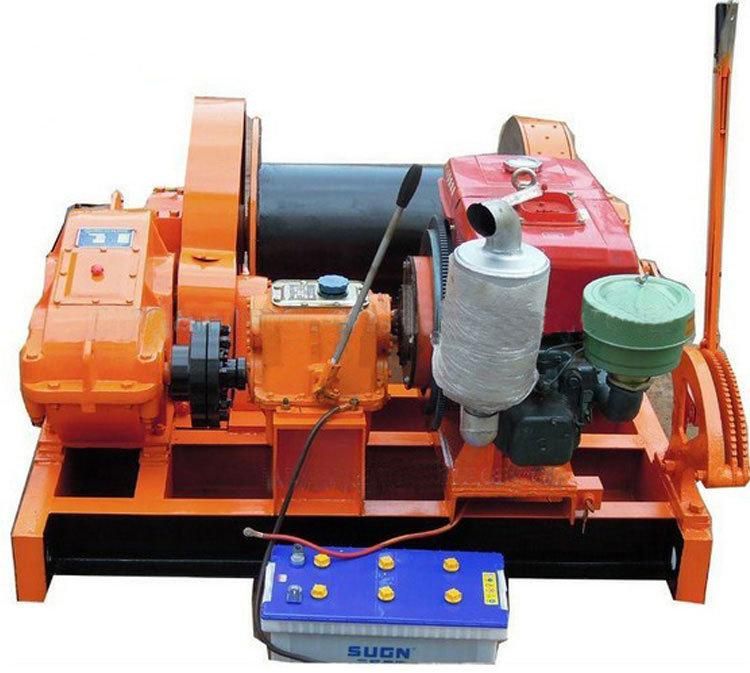

China motor YZR diesel drive winch with 500m ropeChina motor YZR diesel drive winch with 500m rope ,which is drum winding wire rope, is one kinds of small lifting equipment.
It can be vertical, horizontal and inclined lifting or pulling heavy objects.Not only be used alone but be used for crane
manufacturing as main hoisting mechanism .Reasonable designed structure ,easy operation and excellent working
performance .Electric winch be widely used in construction site, mine, factory, port pier, crane manufacturing ,etc material
ifting or traction.

Basic Parameters	Rated Load	Average Speed of Rope	Capacity of Rope	Rope Diameter	Diesel Power	Dimension	Weight
Model	KN	m/min	m	mm	KW	mm	kg
JMC1	10	15	100	9.3	3	620×701×417	270
JMC1.6	16	16	150	12.5	5.5	945×996×570	500
JMC2	20	16	150	13	7.5	945×996×570	550
JMC3.2	32	9.5	150	15.5	7.5	1430×1160×910	1100
JMC3.2B	32	12	195	15.5	7.5	1082×1014×610	536
JMC5	50	10	270	21.5	11	1235×1230×805	1560
JMC5B	50	9.5	200	21.5	11	1620×1260×945	1800
JMC5C	50	9.5	350	21.5	11	1235×1230×805	1800
JMC5D	50	15	350	21.5	15	1235×1230×805	1850
JMC5E	50	20	350	21.5	22	1235×1230×805	2000
JMC6	60	9.5	270	24	15	1235×1509×805	1800
JMC8	80	8	250	26	15	2090×1475×956	2900
JMC8B	80	9.5	350	26	15	1075×1598×985	2650
JMC10	100	8	170	30	22	2090*1475*956	3000
JMC10B	100	9.5	250	21.5	22	1705*1598*985	3500
JMC12.5	125	8	300	34	30	2880*2200*1550	5000
JMC13.5	135	8	290	28	22	2990*2362*1650	6500
JMC16	160	10	500	37	37	3750*2400*1850	8800
JMC20	200	10	600	43	45	3950*2560*1950	9900
JMC25	250	9	700	48	55	4350*2800*2030	13500
JMC32	320	9	700	56	75	4500*2850*2100	14800
JMC50	500	9	800	65	90	4930*3050*2250	19500
JMC65	650	10.5	3600	64	160	5900*4680*3200	46000

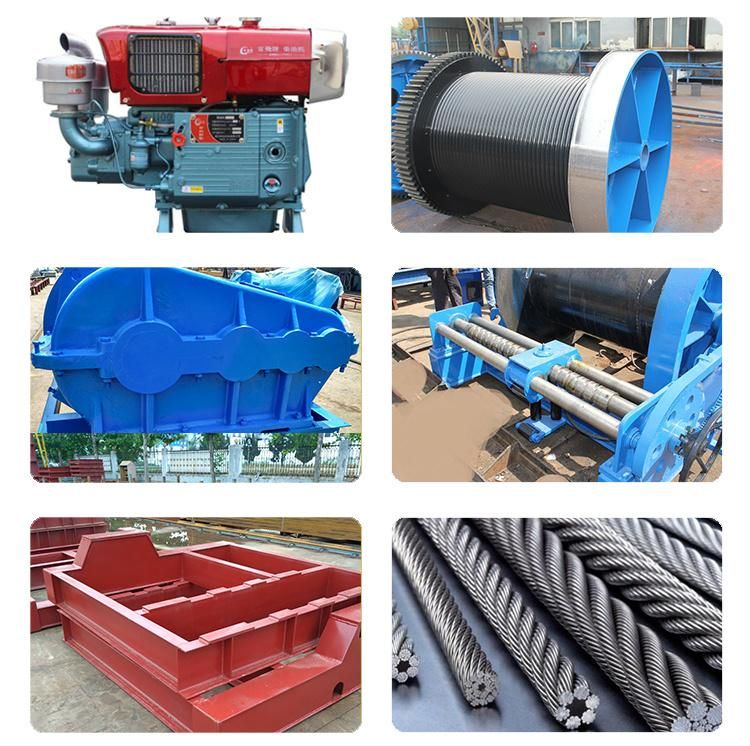

Conponents of China motor YZR diesel drive winch with 500m rope

1. Q: What's your MOQ?

  A: 1 Set;

2. Q: What's your package?

  A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;

3. Q: What's your delivery period?

  A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements
and actual period;

4. Q: What's your warranty period?

  A: 12 months from winches accepted;

5. Q: Do you have engineer oversea installation service?

   A: Yes; We have;

6. Q: What kinds of products do you have?

    A: All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist;
Screw Hoist; Radial/Flat Gate Hoist; Steel Gate; etc.

7. Q: Could we buy spare parts in local once they are out of work?

    A: Our main electrical parts brand is Siemens or Schneider brand; it's very easy to buy all the world.
But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.

8. Q: Do you provide lift tools?

    A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook,
lock catch, wire rope, fiber rope, etc.

9. Q: Could your winches drag inclined?

    A: Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical.
