• Model NO.：SJG
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Warranty：5 years for main structure, 1 year for parts
• Platform Size：1200mm(L)* 900mm(W) or Customized
• Min Platform Height：80mm
• Hydraulic Drive：Smooth and Safe Lifting
• Load Capacity：200-450kg
• Power Output：1.5kw
• Speed：80-100mm
• Platform：Stainless Steel Platform
• Noise：50dB
• Control Mode：Button,Remote Controls
• Transport Package：Standard Exporting Plywood Package
• Specification：CE, ISO, SGS
• Trademark：Moral
• Origin：China(Mainland), Shandong, Jinan
• HS Code：842890
• Production Capacity：100sets Per Month

1200mm(L)* 900mm(W) or  customizedMax Platform Height6000mm/CustomizedMin Platform height80mmSpeed80-100mm/sLoad capacity250KG~350KGControl voltage24V/DCPower Output1.5KWPower Input220V/50HZ/25A (or customized for local power supply)Drive SystemHydraulic or screwControl ModeInching Switch or AutomaticDrive ControlSelf-resetting systemOverloadProtection Over current relayMaterial of PlatformCheckered slip-proof aluminum alloyPaintingPlastic electrostatic sprayingGuard panel & drive cabinet (framework)Aluminum Alloy / 304 stainless steel
 Operation PanelPolished aluminum AlloyWorking ConditionBoth indoors and outdoorsWorking temperatureFrom -50°~60°CInstallation
 Non-pit installation, directly fixed to concrete floor (the concrete
floor below the platform shall not be lower than the ground)Emergency Stop
 The lifting and lowering process can be stopped immediately
by pressing the emergency button.Safety deviceSafety InterlockLock the platform when it is out of control
 Safety SensorThe operation must be stopped immediately the safety edge meets obstacles during operation.
 Emergency loweringThe platform can be lowered by opening
hydraulic valve manually or rolling screw rod.
 Auto-flapTurn up after lifting

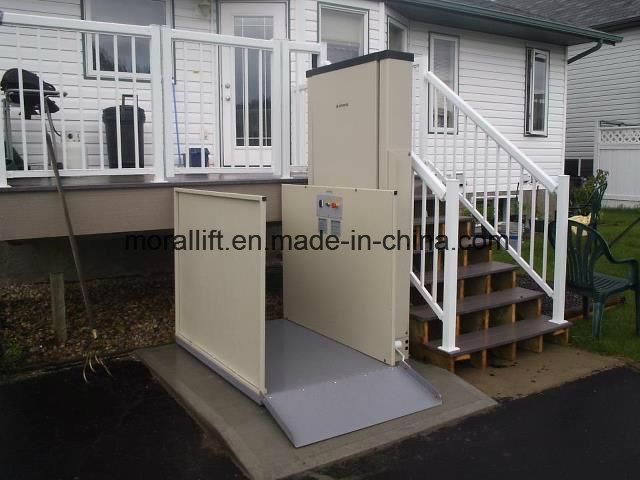

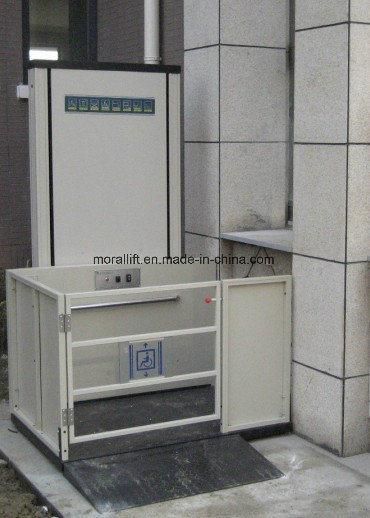

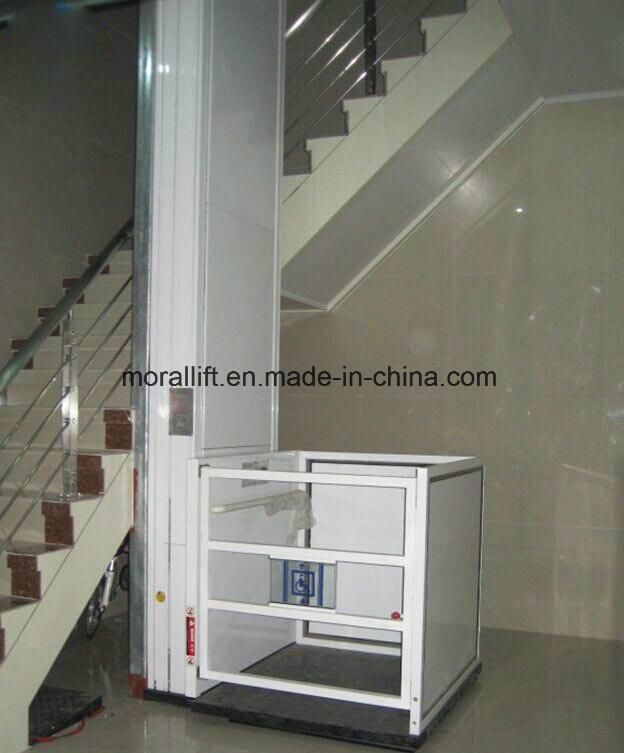

Photos:







Company Information:
Welcome to Moral lift,we are professional manufacturer for SCISSOR LIFT,FREIGHT LIFT,DISABLED LIFT,CAR TURNTABLE,PARKING LIFT,LOADING RAMP AND WORK PLATFORM.  We are a member company of China's Association of Warehouse and Storage. We have fine equipment,advanced technology and complete testing equipment. Welcome to your inquiry,pls tell us your load capacity, platform size and travel height,we can customize for you,thanks!

Look forward to having opportunity to cooperate with all of you around the world!


FAQ:
A This is the first time I use this kind of machine, is it easy to operate?
There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.

B If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.

C MOQ ?
The minimum order is 1 set machine, if you order more one time, the price will be better.

D How can I buy this machine from you?   ( Very easy and flexible !)
1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.

E10 good reasons why you should buy from us?
1  we are a real factory offering products
2  free technical advice by QUALIFIED MECHANICAL ENGINEERS
3  company in business for many years
4  over 50 countries customers served!
5  buy direct saving your money!
6  all machine with CE, ISO certificate.
7  machine and spindle warranty 1 year.
8  our engineer can go to your country to provide technical guidance
9  we have phone support in English, if you have any questions, you can call it,
we can give you a best solution within 24 hours
10  fast delivery, save your time.


Our Services:
1)All machines sold will be tested before shipment;
2)One year warranty without man-made fault;
3) 24hours technical support by email, telephone or video online.
4) User-friendly English manual for machine using and maintain.
5) Spare parts will be offered for free within warranty.
6)Professional consulting services team
7)Experienced product testing team
8)Advanced Technology team on the product line
9)After-sales Service Provided
10)Standard export packaging
11)Fast handling after confirmed order


We assure you of our best services at all times.
Your inquiry will be highly appreciated!
