• Model NO.：SJG
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Max Platform Height：6000mm
• Platform Size：1300mm(L)* 900mm(W) or Customized
• Min Platform Height：80mm
• Hydraulic Drive：Smooth and Safe Lifting
• Load Capacity：200-450kg
• Power Output：1.5kw
• Speed：80-100mm
• Platform：Stainless Steel Platform
• Noise：50db
• Control Mode：Button,Remote Controls
• Transport Package：Standard Exporting Plywood Package
• Specification：CE, ISO, SGS
• Trademark：Moral
• Origin：China(Mainland), Shandong, Jinan
• HS Code：842890
• Production Capacity：100sets Per Month

1300mm(L)* 900mm(W) or  customizedMax Platform Height6000mmMin Platform height80mmSpeed80-100mm/sLoad capacity250KG~350KGControl voltage24V/DCPower Output1.5KWPower Input220V/50HZ/25A (or customized for local power supply)Drive SystemHydraulic or screwControl ModeInching Switch or AutomaticDrive ControlSelf-resetting systemOverloadProtection Over current relayMaterial of PlatformCheckered slip-proof aluminum alloyPaintingPlastic electrostatic sprayingGuard panel & drive cabinet (framework)Aluminum Alloy / 304 stainless steel
 Operation PanelPolished aluminum AlloyWorking ConditionBoth indoors and outdoorsWorking temperatureFrom -50°~60°CInstallation
 Non-pit installation, directly fixed to concrete floor (the concrete
floor below the platform shall not be lower than the ground)Emergency Stop
 The lifting and lowering process can be stopped immediately
by pressing the emergency button.Safety deviceSafety InterlockLock the platform when it is out of control
 Safety SensorThe operation must be stopped immediately the safety edge meets obstacles during operation.
 Emergency loweringThe platform can be lowered by opening
hydraulic valve manually or rolling screw rod.
 Auto-flapTurn up after lifting

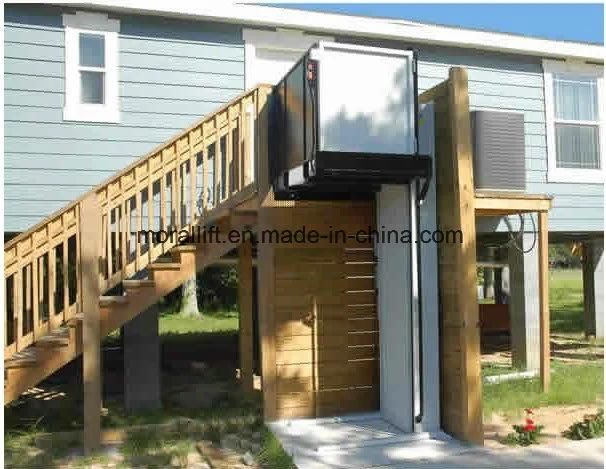

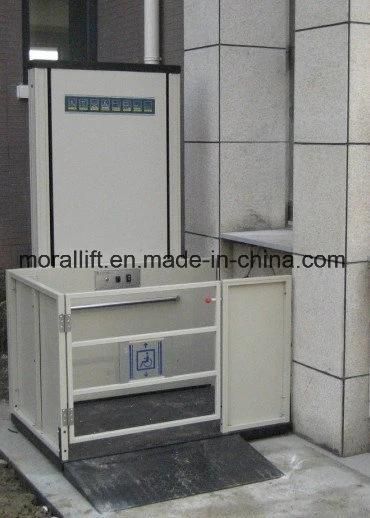

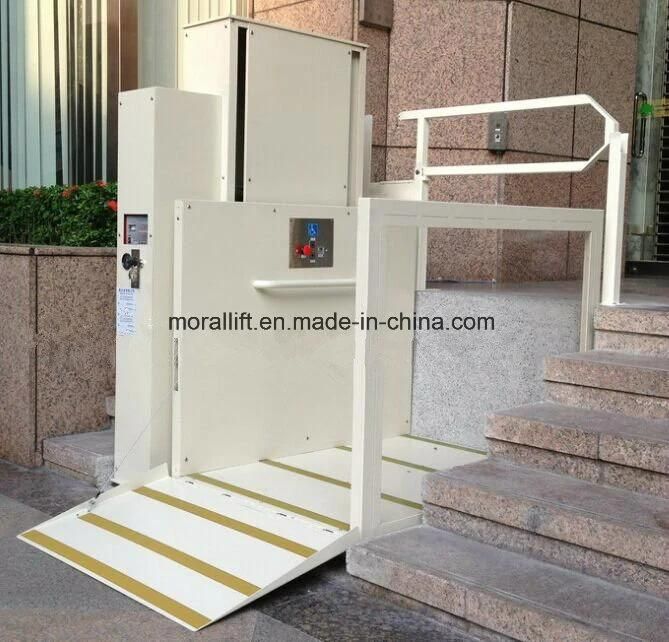

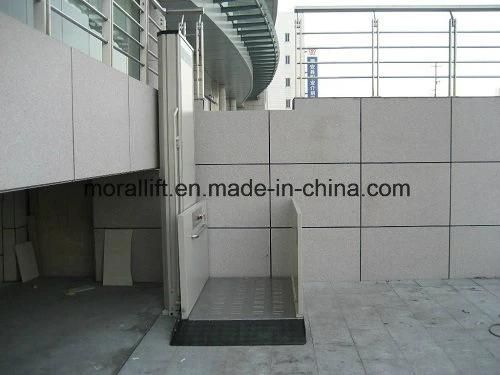

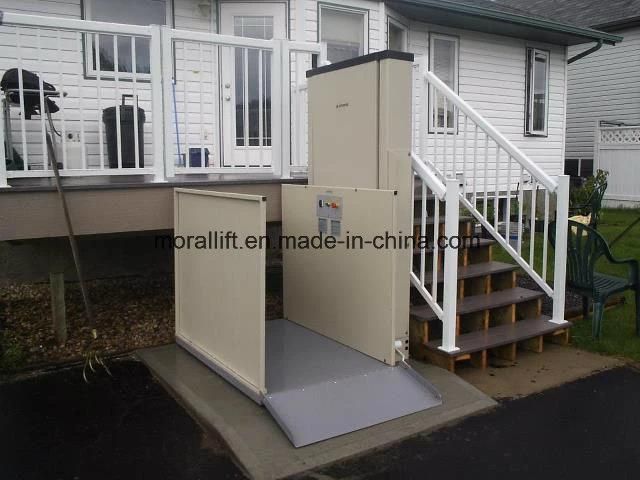

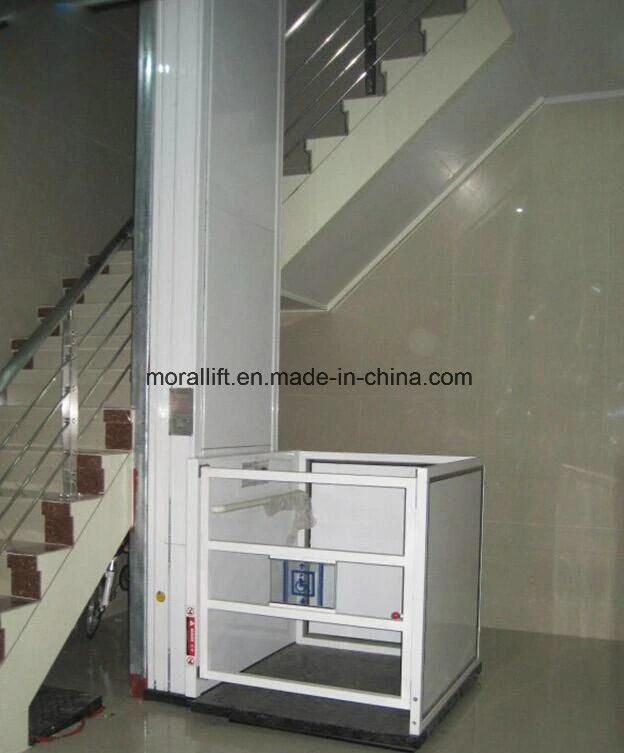

Photos:








FAQ:
1. MOQ?-1 set
2. Delievery time?-usually within 15-20 working days upon receipt of payment.
3. Trade term? ( FOB/CFR/CIF to your nearest seaport)
4. Working Height?-according to your need
5. Platform Size?-according to your need
6. load capacity?-according to your need
7 Demand power source?-electric or battery, per your need
8. OEM?-accepted


Our Services:
1)All machines sold will be tested before shipment;
2)One year warranty without man-made fault;
3) 24hours technical support by email, telephone or video online.
4) User-friendly English manual for machine using and maintain.
5) Spare parts will be offered for free within warranty.
6)Professional consulting services team
7)Experienced product testing team
8)Advanced Technology team on the product line
9)After-sales Service Provided
10)Standard export packaging
11)Fast handling after confirmed order



We assure you of our best services at all times.
Your inquiry will be highly appreciated!
