1000lbs Portable Steel Cable Manual Hand Winch by Ce Certificate
Taizhou Minghe Technology Co., Ltd.- Type：Construction Winch
- Driven Type：Rack&Pinion
- Speed：Slow
- Carrying Capacity：Light Level
- Tonnage：340kg-2390kg
- Reel Number：1
Base Info
- Model NO.：KC1000
- Running Mode：Moving
- Certification：GS, CE
- Standard：National Standards
- W.L.L：350kg
- B/S：525kg
- Cable：4.2mm*10m
- Gear Ration：3.2:1
- Way/Speed：1way,1speed
- Transport Package：Color Box and Carton
- Specification：48x30x21(cm)
- Trademark：MHTOOL
- Origin：China
- HS Code：8431100000
- Production Capacity：50000sets,Year
Description

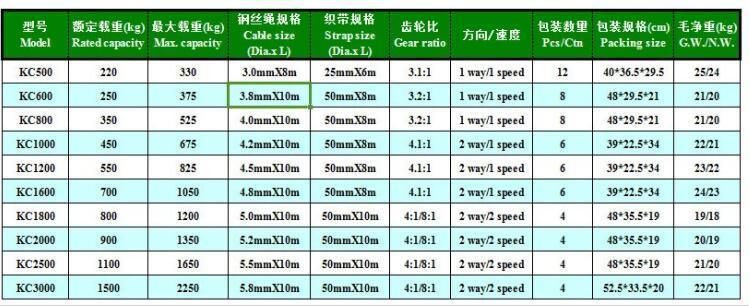

SPECIFICATION Item No. Rated Capacity Max Capacity Cable Size(Dia.x L) Gear Ratio) Pcs/Carton Packing Size G.W/N.W KC500 220 330 3.0mmx8m 3.1:1 12 40*36.5*29.5 25/24kg KC600 250 375 3.8mmx10m 3.2:1 8 48*29.5*21 21/20kg KC800 350 525 4.0mmx10m 3.2:1 8 48*29.5*21 21/20kg KC1000 450 675 4.2mmx10m 4.1:1 6 39*22.5*34 22/21kg KC1200 550 825 4.5x10m 4.1:1 6 39*22.5*34 23/22kg KC1600 700 1050 4.8x10m 4.1:1 6 39*22.5*34 24/23kg KC1800 800 1200 5.0x10m 4:1/8:1 4 48*35.5*19 19/18kg KC2000 900 1350 5.0x10m 4:1/8:1 4 48*35.5*19 20/19kg KC2500 1100 1650 5.0x10m 4:1/8:1 4 48*35.5*19 21/20kg KC3000 1365 2045 5.0x10m 4:1/8:1 4 52.5*33.5*20 22/21kg KC3500 1600 2390 6.0x10m 4:1/8:1 4 52.5*33.5*20 23/22kg
Related product:
Our Advances:

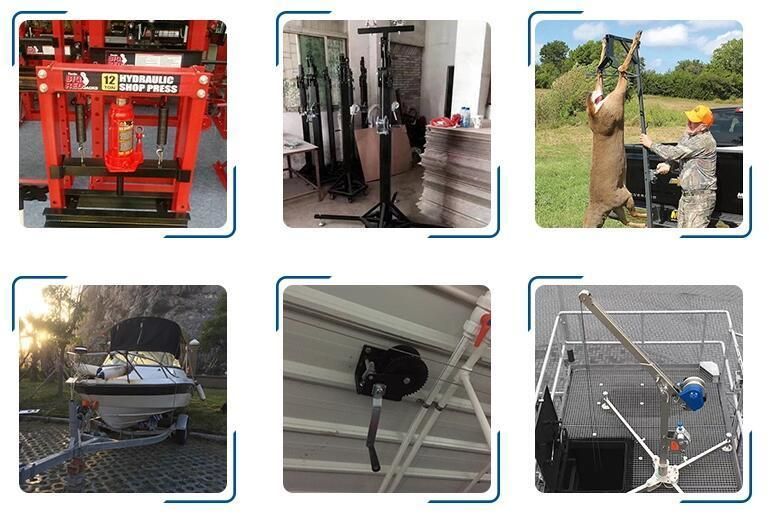

Scope of Use:
