7.5m Self-Propelled Vertical Lift Can Be Customized Hot Sale CE Electric Aerial Work Platform
Hangzhou Linlift Machinery Co., Ltd.- Warranty:One Year Not Include The Quick-Wear Parts
- Application:Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism:Lift Chain
- Carrying Capacity:Light Level
- Moves:Self-propelled
- Driven Type:DC
Base Info
- Model NO.:AMWP7.5-2100
- Running Mode:Moving
- Feature:Insulating
- Certification:CE, ISO 9001
- Working Height:9.5m
- Capacity:200kg
- Transport Package:Standard Export Package
- Specification:net weight: 1270kgs
- Trademark:LINLIFT
- Origin:China
- HS Code:84281090
Description
Basic Info.
Model NO. AMWP7.5-2100 Running Mode Moving Feature Insulating Certification CE, ISO 9001 Working Height 9.5m Capacity 200kg Transport Package Standard Export Package Specification net weight: 1270kgs Trademark LINLIFT Origin China HS Code 84281090Product Description

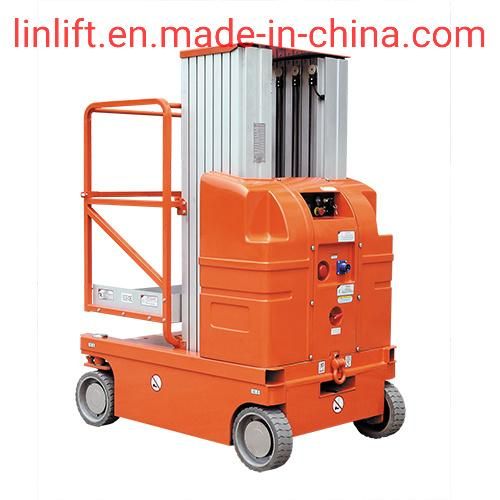

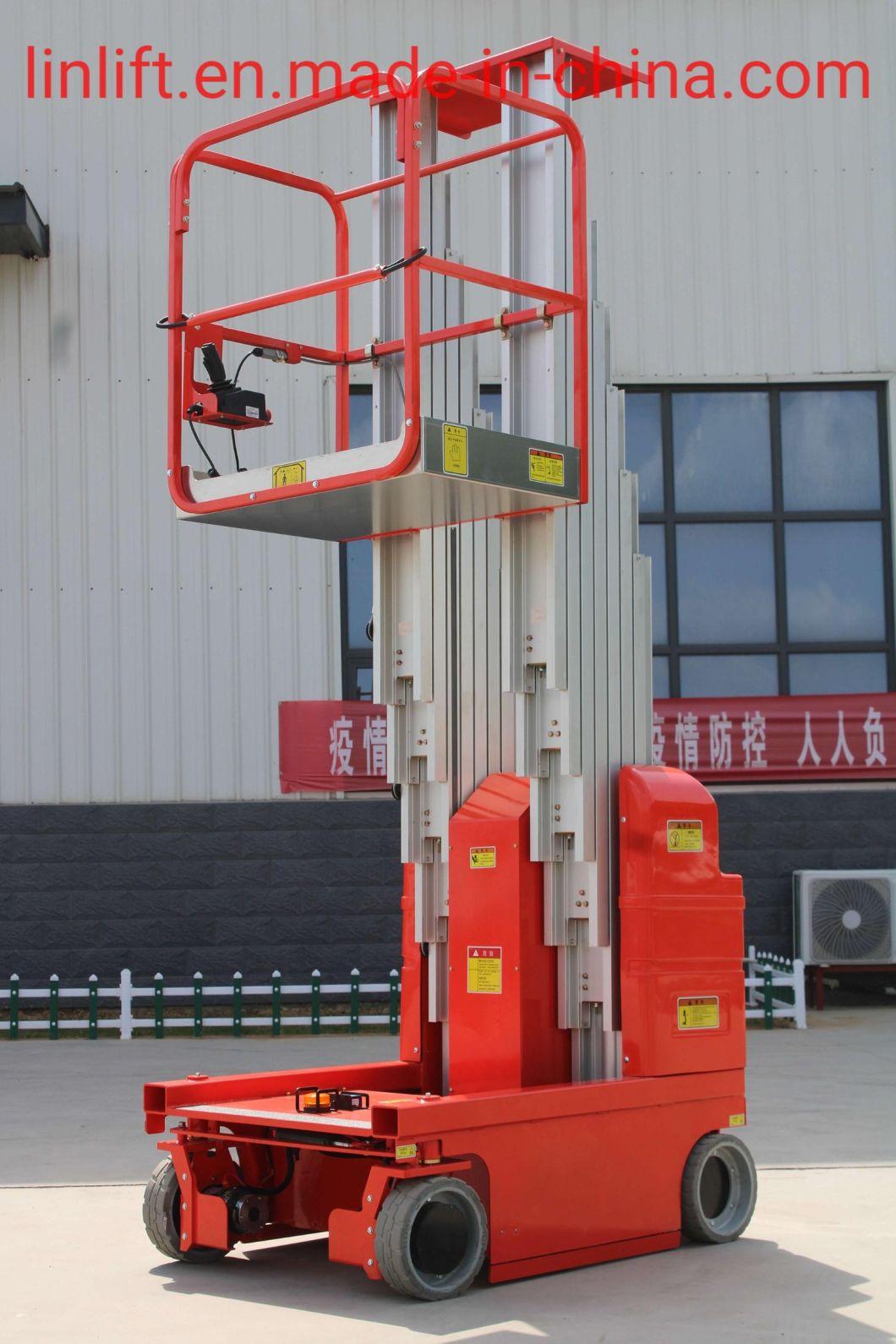

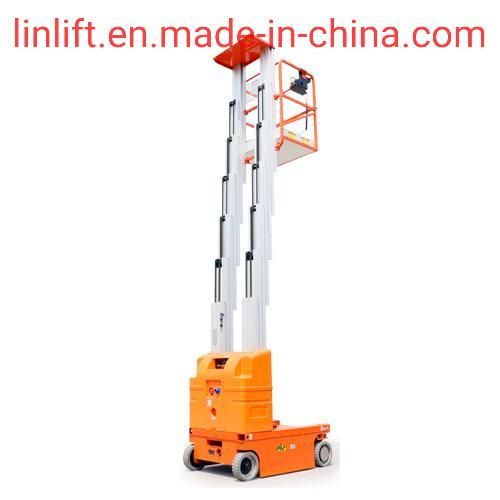

200kgs,7.5m Electric Aerial Work Platform (AMWP7.5-2100 double mast)
1.CE certificated
2.Suitable for one persons work on
3.Best quality and performance
4.Good reliable after-sales service
Introduce:

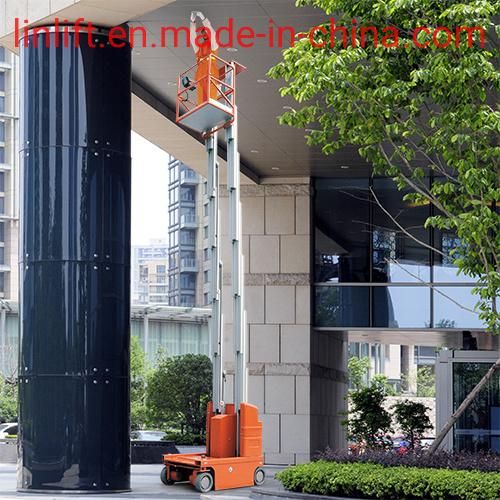

The product is mainly applied in power, communication, airport, conference and exhibition center, supermarket, factory, station, subway station, etc. It is only for one persons working. CE certified.
1) Powered by DC, self-propelled, has the function of infinitely shift-speeds, controlled by joystick.
2)The driving motor has the automatic braking function.

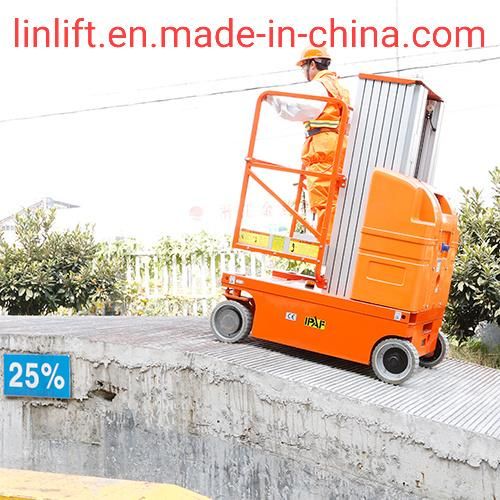

3) Gradeability: 15-20%.
4) Charge protection: When charged, the product cant be operated.
5) The malfunction can be diagnosed and displayed in codes. Emergency down-valve device
6) Pothole-protection and tilt alarm.
Model | AMWP7.5-2100 | AMWP9-2100 |
Max. Working Height | 9.50m | 11.00m |
Max. Platform Height | 7.50m | 9.00m |
Loading Capacity | 200kg | 150kg |
Occupants | 1 | 1 |
Overall Length | 1.55m | 1.55m |
Overall Width | 1.01m | 1.01m |
Overall Height | 1.99m | 1.99m |
Platform Dimension | 1.00m×0.70m | 1.00m×0.70m |
Wheel Base | 1.23m | 1.23m |
Turning Radius | 0 | 0 |
Travel Speed(Stowed) | 4km/h | 4km/h |
Travel Speed(Raised) | 1.1km/h | 1.1km/h |
Up/Down Speed | 48/40sec | 58/49sec |
Gradeability | 25% | 25% |
Drive Tyres | Φ305×100mm | Φ305×100mm |
Drive Motors | 2×12VDC/0.4kW | 2×12VDC/0.4kW |
Lifting Motor | 24VDC/2.2kW | 24VDC/2.2kW |
Battery | 2×12V/100Ah | 2×12V/100Ah |
Charger | 24V/15A | 24V/15A |
Weight | 1270kg | 1345kg |
