Hot Sell Cheap Dock Leveler 6~15 Ton Container Hydraulic Dock Leveler / Dock Ramps Price Made in China

Master Well Enterprise Limited
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Station, Wharf, Logistics
  • Lift Mechanism：Articulated Lift
  • Carrying Capacity：Weight Level
  • Moves：Stationary
  • Driven Type：Hydraulic
  • Running Mode：Stationary

Base Info

  • Feature：Explosion-Proof, Insulating
  • Certification：CE, ISO 9001
  • Name：Warehouse Dock Leveler
  • Match：Dock Seal
  • Related：Dock Shelter
  • Type：Work Platform
  • Lift：Hydraulic Lift
  • Transport Package：Wooden Cases
  • Specification：6000-15000kg
  • Trademark：Master Well
  • Origin：China
  • Production Capacity：1000 Sets,Month

Description

Material DescriptionUpper Plate8 mm thickness, anti-skate steel plateSwinging LipSingle 16 mm thickness, 400mm length  Shaft28mm galvanized Foot GuardSingle galvanized,1.5 mm thicknessSupport ProfileL Steel Profile,4 mm thicknessControl boxIP65, Monitor can display using times and DTCS, split control system , emergency stop Safety systema)self-locking
b)lip emergency stopWorking Range-300mm to 350mmBumpers400 x 100 x 80mmLoading Capacity6000kg-15000kg

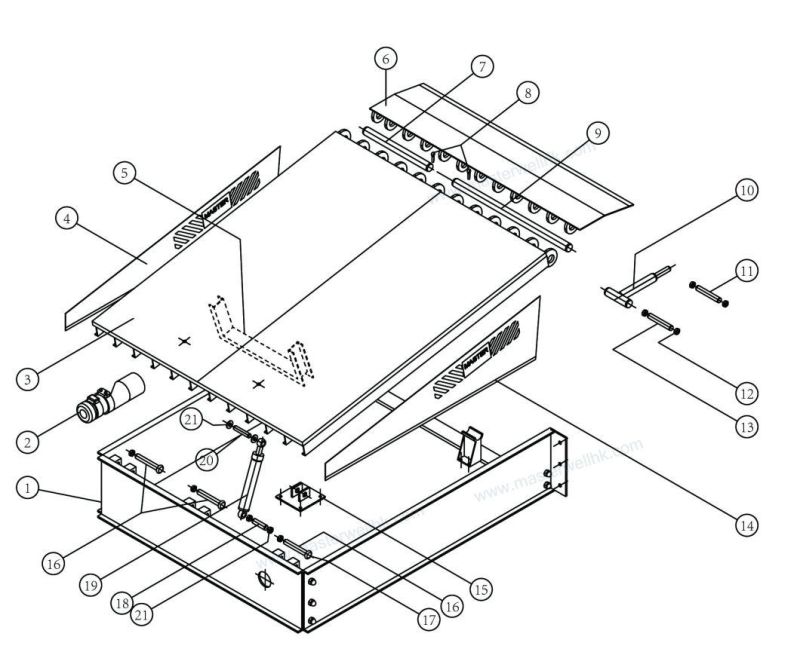

>> Structural Drawing
Hot Sell Cheap Dock Leveler 6~15 Ton Container Hydraulic Dock Leveler / Dock Ramps Price Made in China

1. Mould                                 12. Seeger straight pins of the lip2. Hydraulic control unit                  13. Stright Pin body of the body3. Upper plate14. Right foot guard4. Left foot guard15. Flange fixing - upper plate cylinder5. Control unit support16. Upper plate rotation pivot6. Swinging lip17. Seeger upper plate rotation pivot7. Left short shaft18. Stright Pin body of the upper plate8. Shaft fixing pins19. Upper plate cylinder9. Right long shaft20. Upper plate cylinder shaft pin10. Cylinder of the lip21. Seeger upper plate cylinder pins11. Pin of the lip cylinder rod

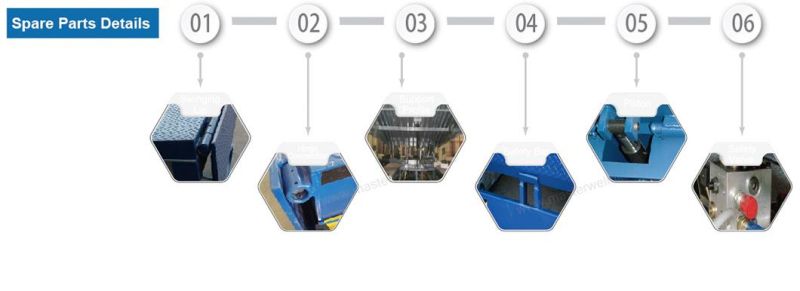

>> Spare part Details

Hot Sell Cheap Dock Leveler 6~15 Ton Container Hydraulic Dock Leveler / Dock Ramps Price Made in China

Swinging LipLip is very import part bettween truck and dock leveler Connect Part, we use the steel material from Baosteel, single plate 16mm thickness, are difference compare with Chinese double welding plate, more stronger than others.Hinge connectionHinge and hinge sleeve conneced with the motherboard do keel welding connection.
The surface of the connecting shaft hinge by electroplating.
Smooth and noise reduction.Support profileWe use 11 pcs L profile, compare with other supplier, our quality will be better than the products use 3-4 pcs.Hydraulic UnitHydraulic pump with oil tank together. Save the place and easy for maintenanceSecurity blockIn case of accidental moving of the truck, the dock leveller will be blocked with a short stroke ( according to the applied weight).Control BoxIP65, Monitor can display using times and DTCS, Split control system.


>> About Master Well

Hot Sell Cheap Dock Leveler 6~15 Ton Container Hydraulic Dock Leveler / Dock Ramps Price Made in China

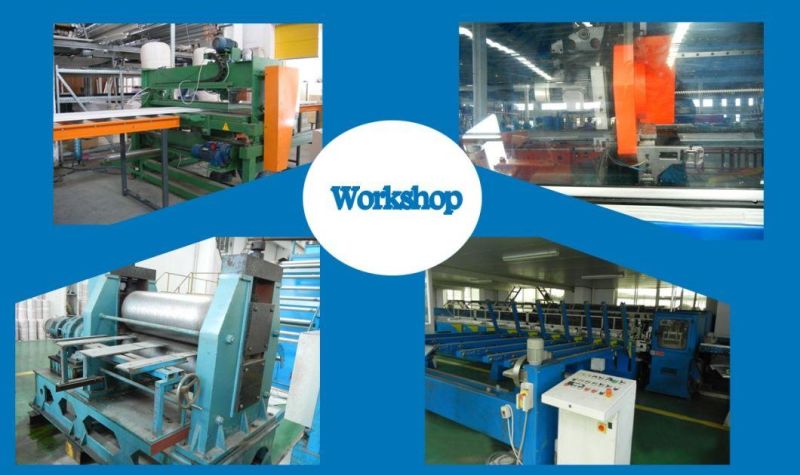

>> Our Workshop

Hot Sell Cheap Dock Leveler 6~15 Ton Container Hydraulic Dock Leveler / Dock Ramps Price Made in China
Relying on our excellent business performance and R&D, we have exported to more than 120 countries and regions. We are now growing up to about 100 people work team, including International Sales Department, Domestic Sales Department, Purchase Department, Financial Department, Human Resource Department and Research and Development. We are always ready to provide the professinal service for you.

>>Our Certificate

Hot Sell Cheap Dock Leveler 6~15 Ton Container Hydraulic Dock Leveler / Dock Ramps Price Made in China

>>FAQ

Q1: What is your MOQ?
  A:  No min order for dock leveller.

Q2: Can you do the full set products according to my project drawing?
  A:  Yes, our engineer will check your project drawings to make sure its accuracy for each different fittings and quantity.

Q3: What kinds of payment you accept?
  A:  We usually accept T/T, L/C, Western Union, etc. If you prefer other payments terms, please feel free to discuss with us.

Q4: We want be your agent of our area. How to apply for this?
  A:  Please send your idea and your profile to any e-mails of us. Let's cooperate.

Q5: Do you produce other products? Do you also produce accessories?
  A:  Yes, we also produce Glass aluminum sectional Door,Industrial door, High speed door, Rolling shutter door, Dock leveller, Dock seal, Motor&Gate openers; We produce parts by ourselves in order to control quality and cost.
