• Model NO.：GTZZ16Z
• Lift Mechanism：Articulated Lift
• Carrying Capacity：Light Level
• Moves：Self-propelled
• Driven Type：Hydraulic
• Running Mode：Aerial Work Platform
• Feature：Aerial Work Platform
• Certification：GS, CE, RoHS, ISO 9001
• Structure：Articulated
• Working Height Maximum：17.7m
• Platform Height Maximum：16m
• Horizontal Reach Maximum：9.5m
• Ground Clearance-Center：430mm
• Lift Capacity (Restricted)：230kg
• Platform Rotation：180°
• Drive Speed -Stowed：6.3 Km,H
• Turning Radius - Inside：3m
• Turning Radius – Outside：5.2m
• Transport Package：Bulk
• Specification：SGS CE
• Trademark：KUDAT
• Origin：China
• HS Code：8428909090
• Production Capacity：100PCS,Month
• Package size per unit product：120.00cm * 36.00cm * 280.00cm
• Gross weight per unit product：2000.000kg

EN280,JG/T5101,Q/ADZV001-2008



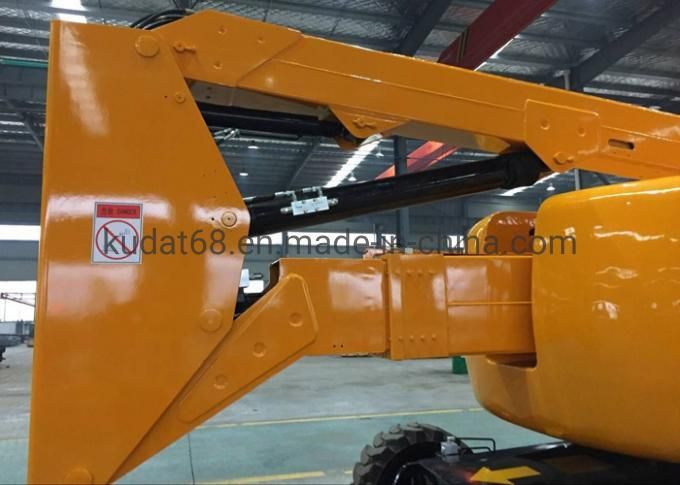

1.  Functions of positioning upward&outward and crossing

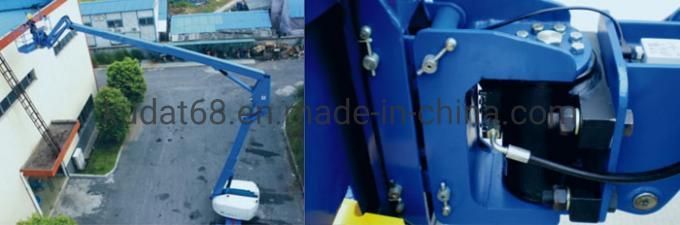

Functions of positioningupward&outward and crossingThearticulating boom machine offers muti-faceted functions of positioningupward,outward and crossing, so that you can reach whatever placeyouwant to go through various ways.

2. Complete safety devices

Standard configuration include four-link weighing devices, overload protection, automated detection device for detecting platform amplitude and height (automatic amplitude limiter), automatic control of the movement speed of the boom and traveling speed, and high-precision load sensor, to ensure the safety and stability of operation in all directions.

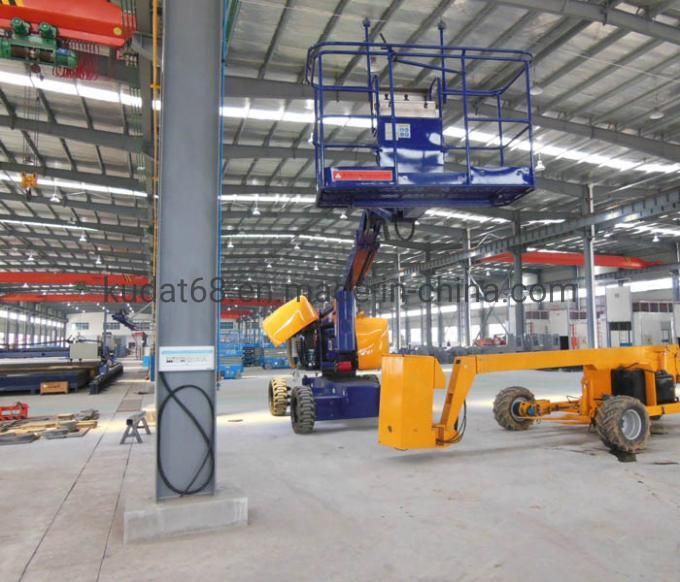

3. Compact structure
Thestructures with size lower than 16m and electric motor type arecompact,which make the boom can go through small opening and operateinsmall space.

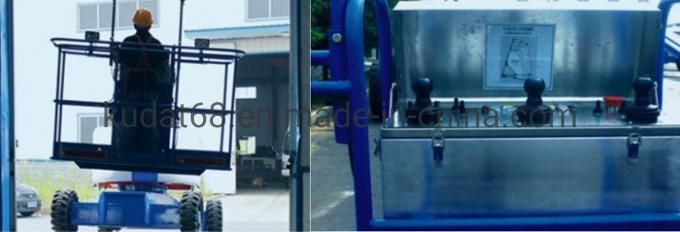

4. Control box
Fullproportion joysticks and CAN bus as well as PLC control system With high positioning accuracy are easy to be controlled and can beoperatedby the users at will. The stainless steel control box with sealingcoverand box cap, which can help prevent the electrical components formoistureand prevent the damage from welding slag.

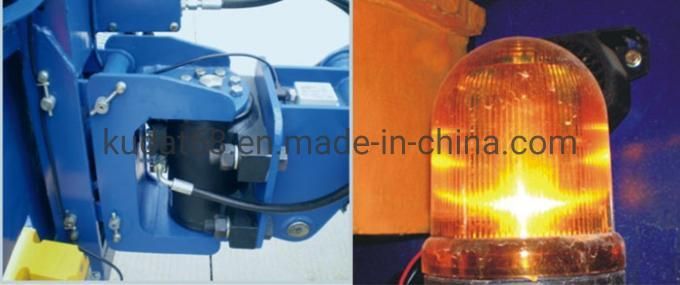

5. Strobe light------Give alerting signal when working

6. Rotary platform------The rotary actuator with standard configuration can make the rotation range of the platform reach ±80°, which makes your work more flexible.

7. Active oscillation axle

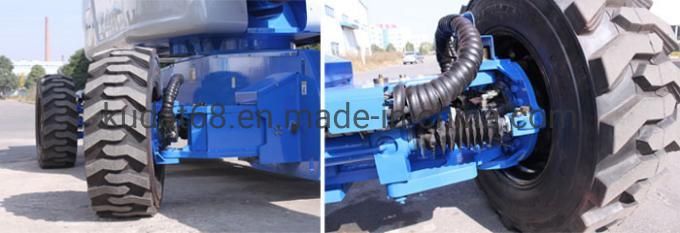

Active oscillation axle can preceive the terrain, and can guarantee that the machine can land on four wheels even on uneven road without reducing the driving force

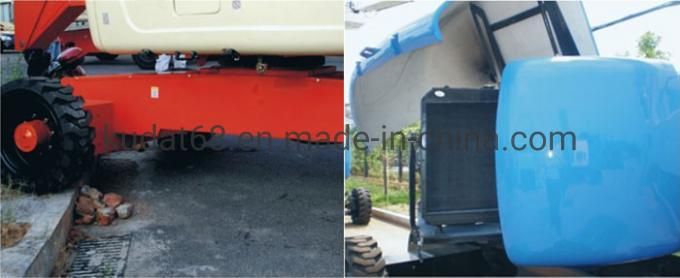

8. Swing-out engine tray   It is easy for maintenance and repair

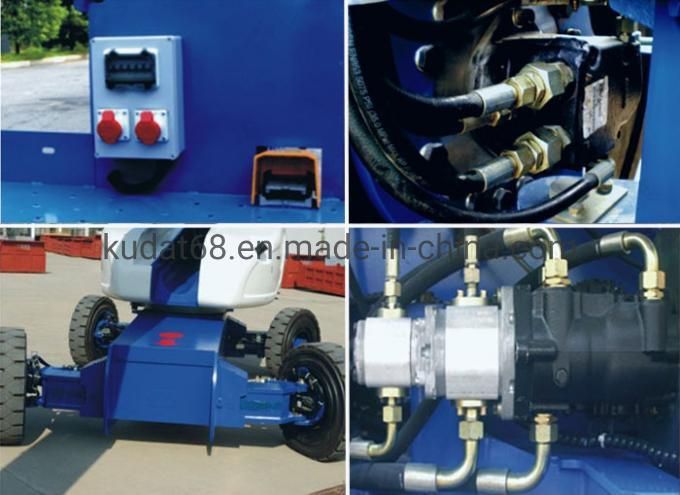

9. Hydraulic system

Closed circuit hydraulic traveling system has speed easily to be adjusted, wide speed range; the boom's hydraulic system adopts double value core circuit. which enhance the safety. The hydraulic components adopt European and North American pure brands.

10. Driving mode 4*4(optional)

The four-wheel drive is powerful with great grade-ability

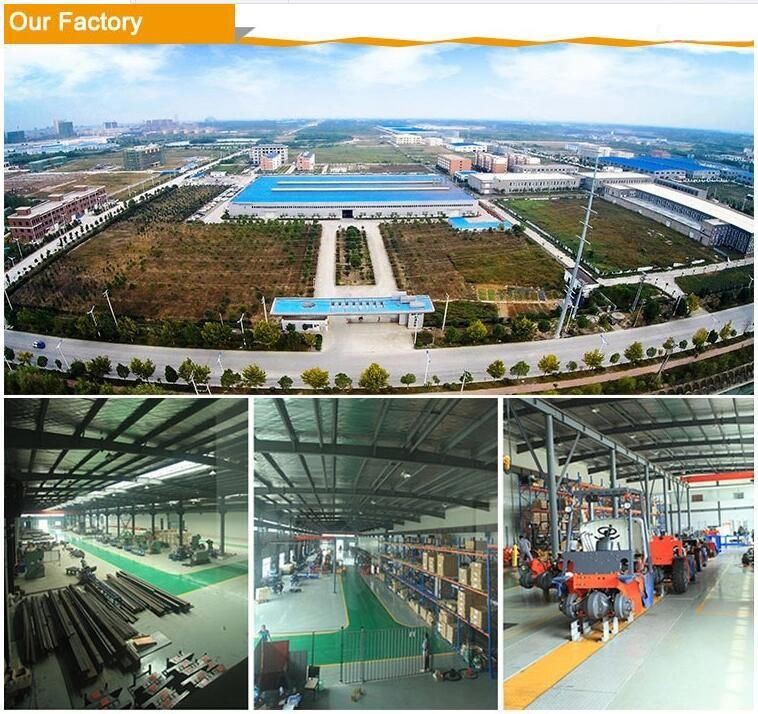

11.   Production plant
