MW5 Steel Factory Electric Magnetic Lifter for Lifting Scraps
Yueyang Shengang Lifting Electromagnet Co., Ltd.- Color：Red Magnetic Lifter
- Shape：Circular,Round
- Rated Voltage：DC-220V
- Duty Cycle：60%
- Electric Current：71.2A
- Cold-State Power：15.6kw
Base Info
- Model NO.：MW5-150L,1
- Weight：2830kg
- Lifting Capacity for Cast Iron：1900,1500kg
- Lifting Capacity for Steel Ball：11000kg
- Lifting Capacity for Steel Scrap：1100,900kg
- Transport Package：Fixed Iron Frame with Plywood Packing
- Specification：ISO9001: 2008
- Trademark：SHENGANG MAGNET or OEM
- Origin：China
- HS Code：85059010
- Production Capacity：80 Sets Per Month
Description
Overall dimension (mm)steel ball cast iron steel scrap A B C D E MW5-70L/1 15 3.3 2500 380/200 120/100 490 700 800 160 90 30 MW5-80L/1 18 3.96 3000 480/250 150/300 620 800 800 160 90 30 MW5-90L/1 26.6 5.9 4500 650/440 250/200 800 900 1090 200 125 40 MW5-110L/1 35 7.7 6500 1000/800 450/400 1350 1100 1140 220 150 45 MW5-120L/1 45.5 10 7500 1300/1000 600/500 1700 1200 1100 220 150 45 MW5-130L/1 54 12 8500 1400/1100 700/600 2010 1300 1240 250 175 50 MW5-150L/1 71.2 15.6 11000 1900/1500 1100/900 2830 1500 1250 350 210 60 MW5-165L/1 75 16.5 12500 2300/1800 1300/1100 3200 1650 1590 370 230 75 MW5-180L/1 102 22.5 14500 2750/2100 1600/1350 4230 1800 1490 370 230 75 MW5-210L/1 129 28.4 21000 3500/2800 2200/1850 7000 2100 1860 400 250 80 MW5-240L/1 154 33.9 28000 4800/3800 2850/2250 9000 2400 2020 450 280 90

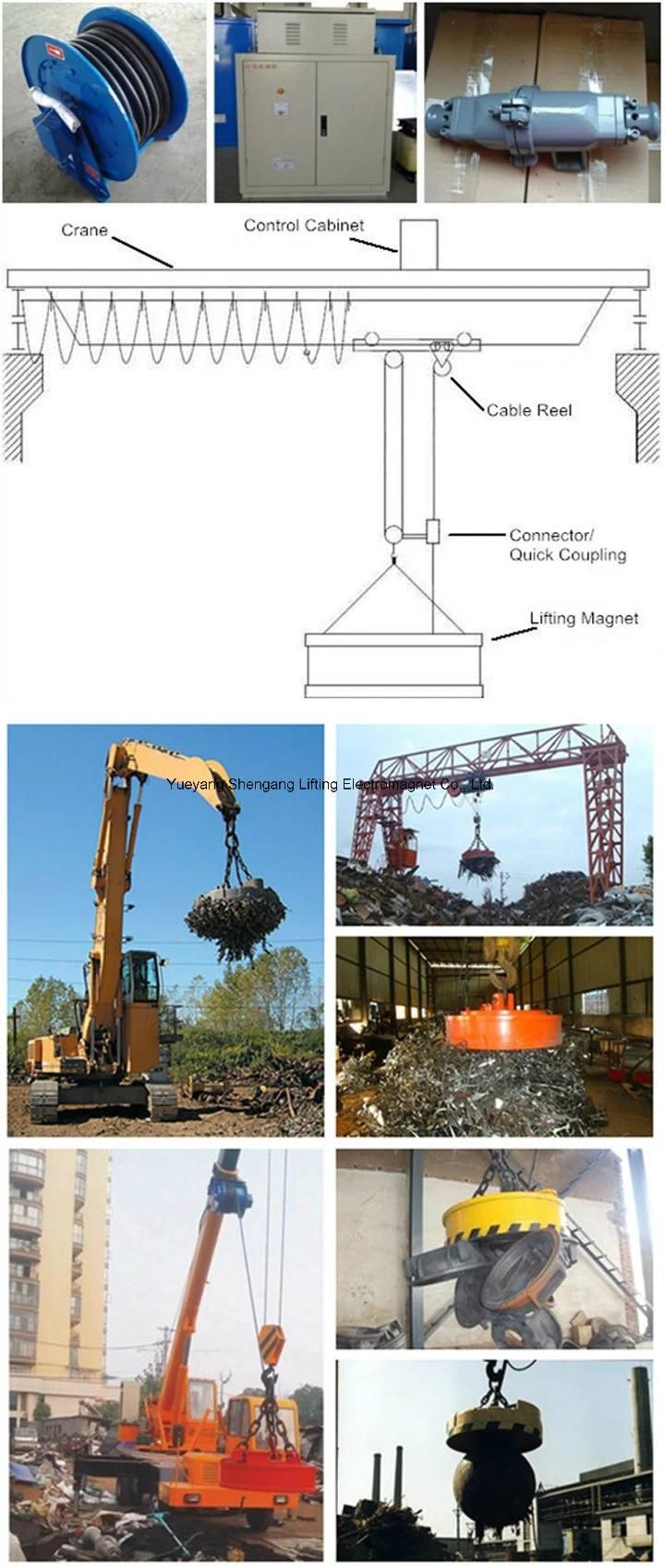

Complete set of Equipment:
· Magnetic Lifter;
· Spring type cable reel with Cable;
· Rectifier control cabinet (Normal type,Strong excitation type, Battery back-up type);
· Cable connector / Quick coupling.

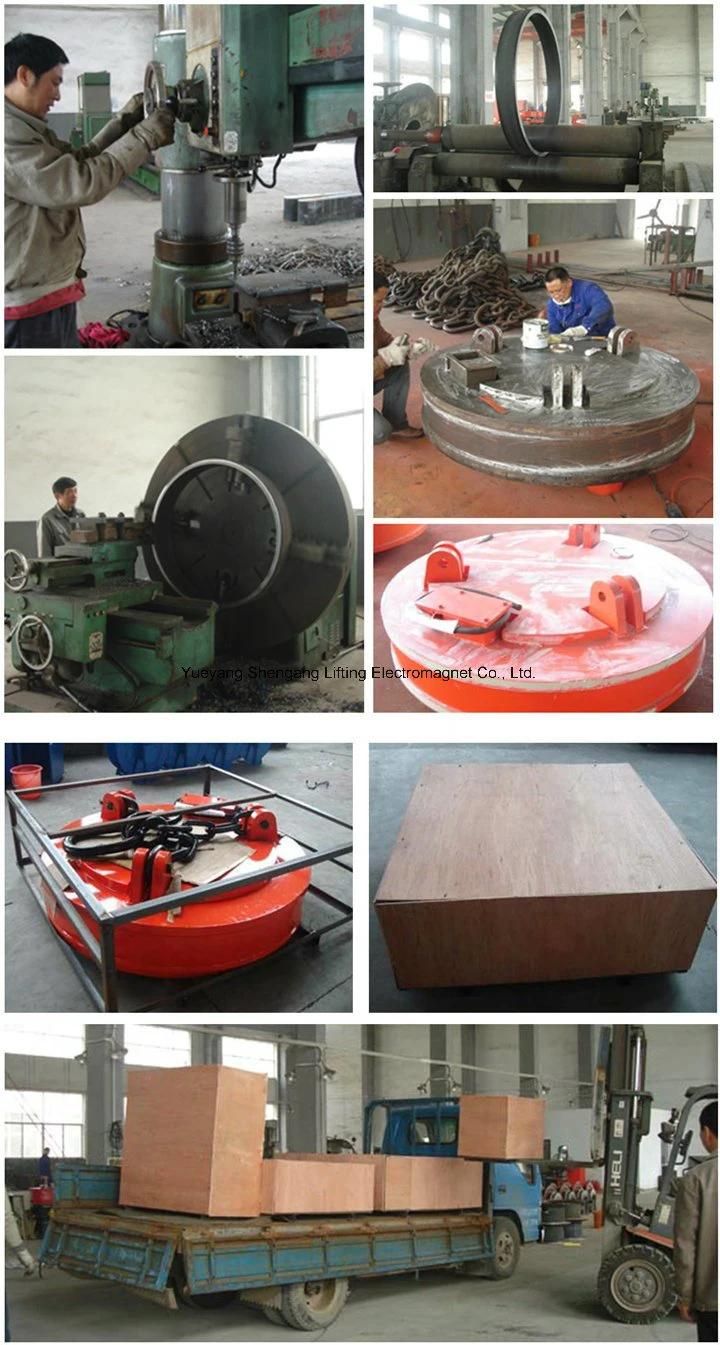

Processing flow and Package:
The package is angle steel welded frame and fixed with five-layer plywood around the outside to keep safety long-distance transportation;Don't need to be fumigated.
Company Information:
FAQ:
Q:Why customers choose us?
A:We are a professional lifting electro magnet products manufacturer with 17 years experience in China.We have our own factory which can offer better price, control delivery time better based on strict quality inspection and good after-service guarantee.
Q:What is your payment terms?
A:Payment≤USD1000.00,100% T/T in advance;Payment>USD1000.00,
30%T/T in advance,70% T/T before delivery. We support T/T, Western Union,LC at sight, SWIFT/Money Gram/Paypal etc..
Q:How long is your delivery time?
A:Standard model is within 13 work days after deposit confirmed.
Customerized model will depend on actual production needs.
Q:Can I have product with our design and nameplate?
A:Of course,we welcome OEM and ODM order. Our engineer will provide you the proposal based on your detailed requirements.
Q:What is your warranty and after service?
A:Our product is with 12months warranty from delivery. We also support
engineer to oversea market. Frankly speaking,with equipment renovation technology, our products tend to free maintenance.
About Enquiry:
To help you get the best electro lifting magnet for your application, we should have the following information:
1. What are the materials you want to lift?
For example: Steel scraps, steel billet, ingot, plate, bar or ball. For steel plate, please let us know its dimension (Length× Width× Thickness mm)
2. What's the lifting capacity you expect?
3. What kind of working site does the magnet work? Indoor or outdoor?
4. Kindly provide your power supply information (__V,DC/AC,__Hz), and information for crane (single beam or double beam, single hook or double hook, how about its loading capacity).
5.Do you need full set with cable reel, control cabinet or only magnet?
6.Do you need FOB or CIF price, which port?
(More details, please feel free to contact us directly. )
Customers Visit and Certification:
Quick Response:
We highly appreciate your any enquiry by email, fax or instant message.
We will reply your email or fax within 24 hours.
Please fell free to call us at any time if there is any questions.
Convenient Transportation
All available shipping ways could be applied, by courier, air or sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you till the goods arrive.
