H418 Light Type Champion Snatch Block Single Sheave with Hook Swivel Hook Block Cable Pulley Block
QINGDAO WELL DONE IMP & EXP CO., LTD.- Type:Hook
- Material:Alloy
- Number of sheaves:1
- Control:Manual
- Application:Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
- Certification:CE, ISO 9001:2000
Base Info
- Model NO.:H418
- Processing:Forged, Casting Available Too
- Transport Package:Plywood Case, Cartons, etc.
- Specification:2T-15T
- Trademark:WELLDONE or Customized
- Origin:China
- HS Code:8425190000
- Production Capacity:20000piece,Month
Description
Basic Info.
Model NO. H418 Processing Forged, Casting Available Too Transport Package Plywood Case, Cartons, etc. Specification 2T-15T Trademark WELLDONE or Customized Origin China HS Code 8425190000 Production Capacity 20000piece/MonthProduct Description

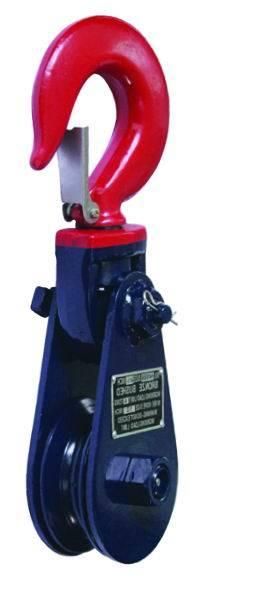

Snatch Block with Shackle for Cable
Product description: H418 Light Type Champion Snatch Block Single Sheave with Hook is Widely Used in American, Asian, the Mid East,
It is one kind of most popular Cable Pulley Block all over the world. The size is from 3"-18"
SpecificationH418 European Type Snatch Block with Hook
Size | Working Load Limit | Rope Dia. | Weight Each |
(in.) | (Ton) | (in.) | (Kg.) |
3 | 2 | 3/8 | 4.30 |
4-1/2 | 4 | 1/2 | 6.10 |
6 | 8 | 3/4 | 14.00 |
8 | 8 | 3/4 | 19.00 |
10 | 8 | 3/4 | 23.50 |
16 | 15 | 7/8 | 105.00 |
H418 Light Type Champion Snatch Block with Hook
Size | Working Load Limit | Rope Dia. | Weight Each |
(in.) | (Ton) | (in.) | (Kg.) |
3 | 2 | 3/8 | 2.30 |
4-1/2 | 4 | 1/2 | 5.74 |
6 | 8 | 3/4 | 11.50 |
8 | 8 | 3/4 | 15.75 |
10 | 8 | 3/4 | 21.90 |
12 | 8 | 3/4 | 30.00 |
14 | 8 | 3/4 | 36.00 |
16 | 15 | 7/8 | 99.00 |
18 | 15 | 1 | 112.50 |

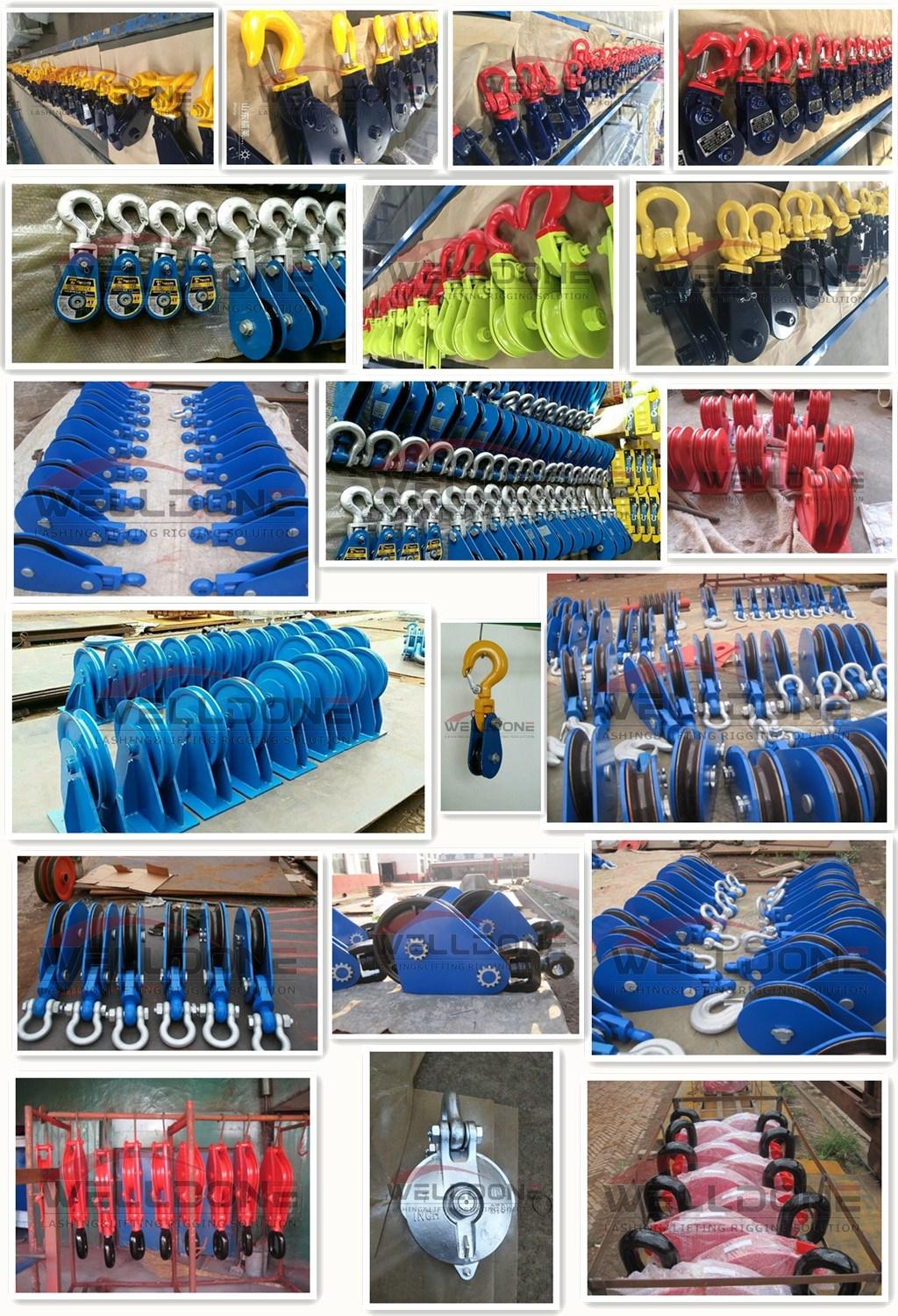

Factory/Pakage/Products picture
Qingdao Well Done Imp.&Exp. Co., Ltd ---Chinese Manufacturer, Supplier, Factory.
An ISO 9001 certified firm, Lloyd's register, specializes in the field of lifting and hoisting equipment, webbing and round sling, ratchet tie down, lashing equipment and cargo control series, chain and chain sling, wire rope and wire rope sling, material handling, rigging hardware,etc.
Customer praise and trade documents
Certifications

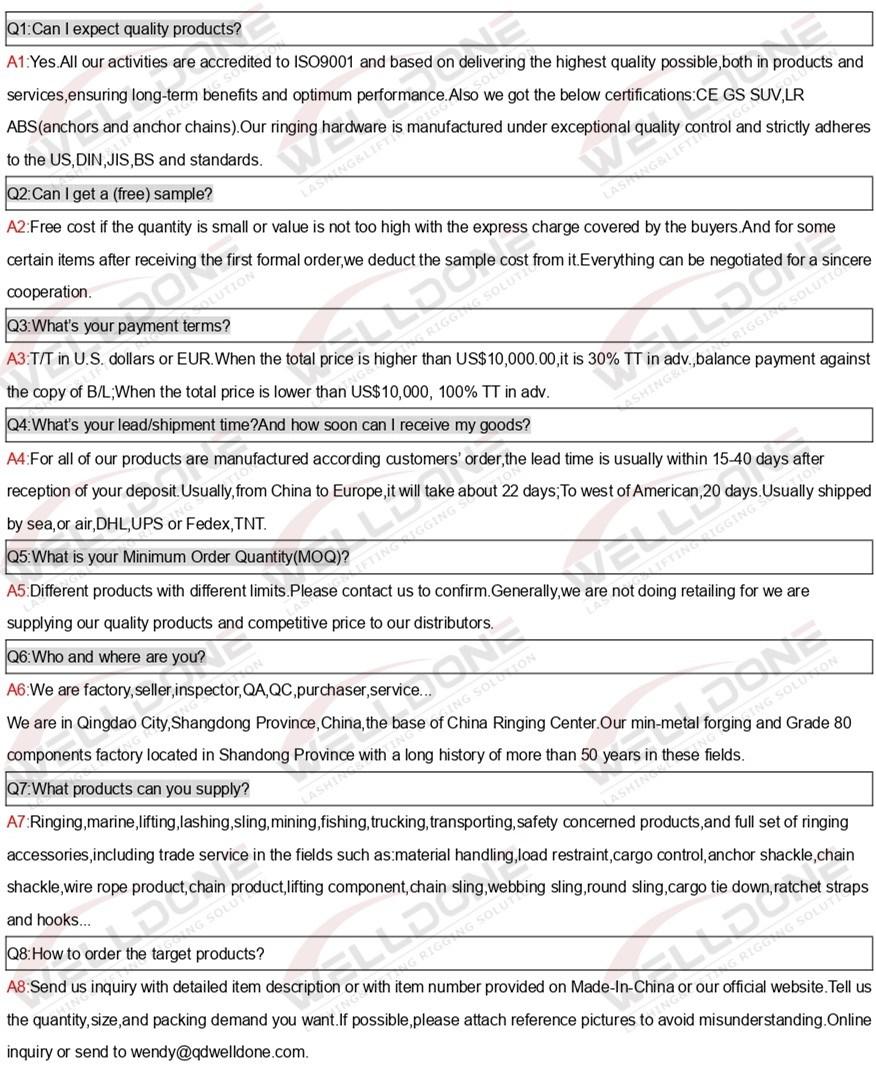

FAQ:
