• Model NO.：SSDHL01-01S
• Certification：CE, ISO9001:2000
• Condition：New
• Color：Yellow
• Traveling Speed：21m,Min
• Lifting Motor：1.5kw
• Spec of Load Chain：7.1m
• I-Beam Recommend：58-153mm
• Control Voltage：24,36,48V
• Power Supply：3p,380V,50Hz
• Insulation Grade：F
• Rotation Speed：1440m,Min
• Speed Type：Single,Double
• Working Grade：M5
• Transport Package：Plywood Case
• Specification：1T
• Trademark：TXK
• Origin：China
• HS Code：84251100
• Production Capacity：5000set,Month

Single SpeedTechnical ParametersModelSSDHL0.5-01S01-01S1.5-01S02-01S02-02S2.5-01S03-01S03-02S03-03S05-02SCapacity(T)0.511.522.535Lifting Speed(M/Min)7.26.68.86.63.35.45.44.42.22.7Motor Power(Kw)0.81.53.03.01.53.03.03.01.53.0Rotation Speed(R/Min)1440Insulation GradeFPower Supply3P 220V-690VControl Voltage24V/36V/48VNo. Of Chain1111211232Spec. Of Load Chainφ6.3φ7.1φ10.0φ10.0φ7.1φ11.2φ11.2φ10.0φ7.1φ11.2Net Weight(Kg)47611081157311512213185151 Dual SpeedTechnical ParametersModelSSDHL0.5-01D01-01D1.5-01D02-01D02-02D2.5-01D03-01D03-02D03-03D05-02DCapacity(T)0.511.522.535Lifting Speed(M/Min)7.2/2.46.9/2.39.0/3.06.9/2.33.3/1.15.4/1.85.4/1.84.5/1.52.4/0.82.7/0.9Motor Power(Kw)0.8/0.271.8/0.63.0/1.03.0/1.01.8/0.63.0/1.03.0/1.03.0/1.01.8/0.63.0/1.0Rotation Speed(R/Min)2880/960Insulation GradeFPower Supply3P 220V-690VControl Voltage24V/36V/48VNo. Of Chain1111211232Spec. Of Load Chainφ6.3φ7.1φ10.0φ10.0φ7.1φ11.2φ11.2φ10.0φ7.1φ11.2Net Weight(Kg)547414415086148159168

102

184


Packing & Shipping:

Packaging Details: Plywood Cases (Fumigation-free packing)
Shipping Details:   7 Days Rapid Delivery

Production description:

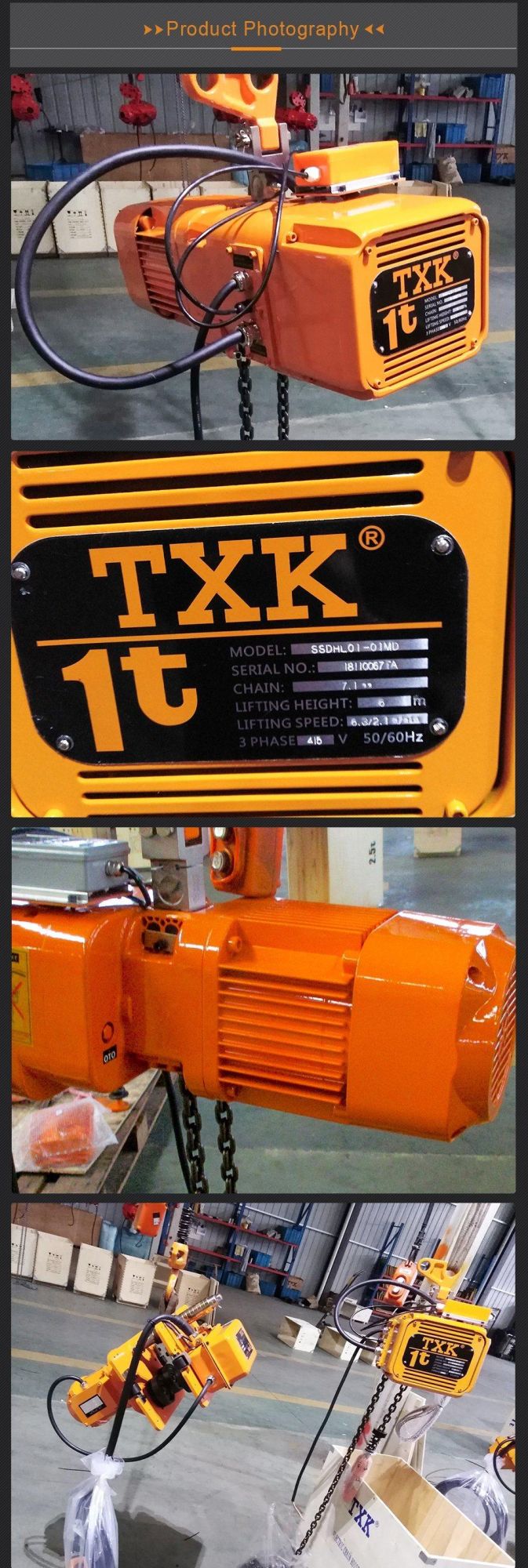

TXK Electric Chain Hoist
1. Aluminum alloy shell , light but hard .
2. G80 Load chain or Japan or Germany FEC G80 load chain, can be used in poor invironment .
3. Hook: be hot forged with perfect strength , hard to break .
4. Push button, remote control : imported from Taiwan .
5. 3 phase electric chain hoist  & Single phase electric chain hoist is optional
