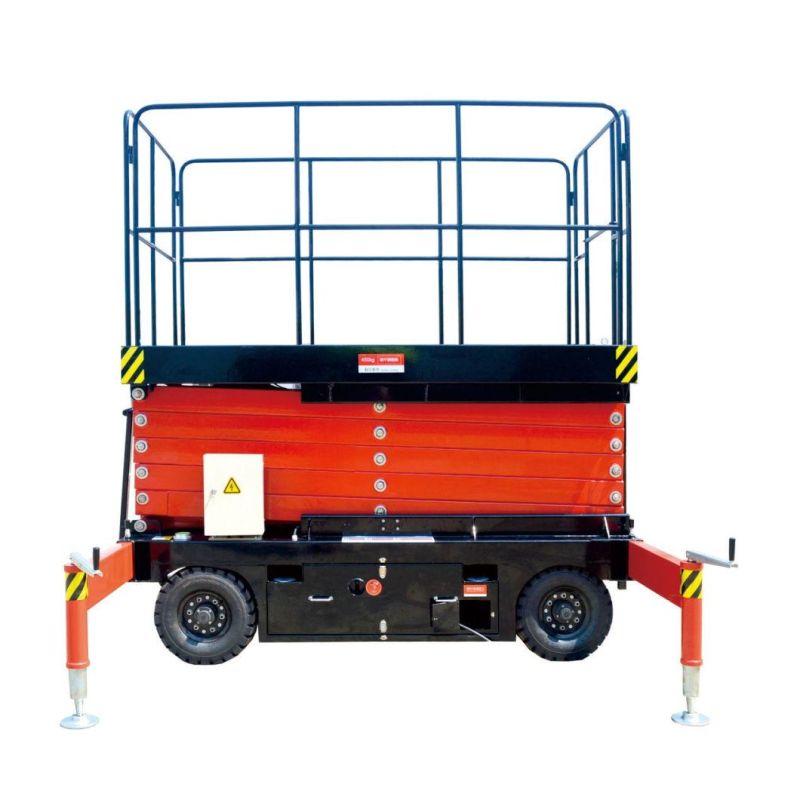

Mobile Scissor Lift (upgraded) Max Platform Height 6 (m)

Boonai (Suzhou) Lift Equipment Co., Ltd.
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane, Decoration
  • Lift Mechanism：Scissor Lift
  • Carrying Capacity：Middle-Level
  • Moves：Manual
  • Driven Type：DC or AC, DC and AC
  • Running Mode：Moving

Base Info

  • Model NO.：SJY0.45-6A,6B
  • Feature：Explosion-Proof, Insulating, Extension Platform, Slide-out Engine Tray
  • Certification：CE, ISO 9001
  • Delivery：15 Days or Rush as Requested
  • Max Platform Height (mm)：5900,6000
  • Min Platform Height (mm)：980,1080
  • Max Working Height (mm)：7600,7700
  • Platform Size (mm)：1700*750,2300*800
  • Rated Load (Kg)：450
  • Lifting Time (S)：60,70
  • Voltage (V/Hz)：AC380,50Hz
  • Motor Power (Kw)：1.5
  • Package Size (mm)：1950*950*1720,2600*1100*1360
  • Transport Package：Steel Pallet+Buffer Sponge+Bubble Bag+Water Proof
  • Specification：650 KG,1200 KG
  • Trademark：BOONAI
  • Origin：Xiangcheng District, Suzhou, China
  • HS Code：8428909090
  • Production Capacity：200 Units Per Month

Description

Model    SJY0.45-5SJY0.45-6ASJY0.45-6BSJY0.45-8SJY0.45-10SJY0.45-12Max platform height (mm)49005900600080001000011800Min platform height (mm)9009801080120013601480Platform size (mm)1450*6001700*7502300*8002300*8002300*11202300*1120Rated load (kg)450450450450450450Lifting time (s)50607090100110Voltage (v/hz)AC380/50AC380/50AC380/50AC380/50AC380/50AC380/50Motor Power (kw)1.11.51.51.52.22.2Overall length (mm)150019002550255025502550Overall width (mm)7509001050105014001400Overall height (rails up) (mm)208021602260238025402660(rails down) (mm)1540(folded)1620(folded)1260(insert)1380(insert)1540(insert)1660(insert)Extended outrigger size (mm)1400*14001650*16501800*22701800*22702250*22702250*2270Tire (Ø)250250400-8400-8500-8500-8Overall weight (kg)4506501200135017001850

Advantages:Extension Platform,Slide-out Engine Tray
Level,Electric Control Box
Standard Configuration:                                     Optional Configuration:
1,Ac 380V                                            1,AC 220V,DC(for max 12m platform)
2,Emergency lowering valve                            2,AC/DC ,manual hydraulic pump
3,Leveling device with supporting screw                 3,Italian hydraulic system
4,Waterproof electric box                               4,Explosion proof electric control system
5,Emergency stop button                               5,Rubber solid tire ,Extension platform,Electric moving device
