• Model NO.：YT30
• Running Mode：Moving
• Feature：Antiseptic
• Certification：CE, ISO 9001
• Line Speed：54m,Min
• Response Pressure of Brake：2.5,25 MPa,Bar
• Oil Pressure：20MPa
• Oil Flow：54L,Min
• Drum Capacity：33m
• Wire Rope Diameter：φ13
• Net Weight：151kg
• Transport Package：Wood Case
• Specification：360*270*181mm
• Trademark：Zhong Xin
• Origin：China
• HS Code：8425399000

Basic Info.

Model NO. YT30 Running Mode Moving Feature Antiseptic Certification CE, ISO 9001 Line Speed 54m/Min Response Pressure of Brake 2.5/25 MPa/Bar Oil Pressure 20MPa Oil Flow 54L/Min Drum Capacity 33m Wire Rope Diameter φ13 Net Weight 151kg Transport Package Wood Case Specification 360*270*181mm Trademark Zhong Xin Origin China HS Code 8425399000

Product Description

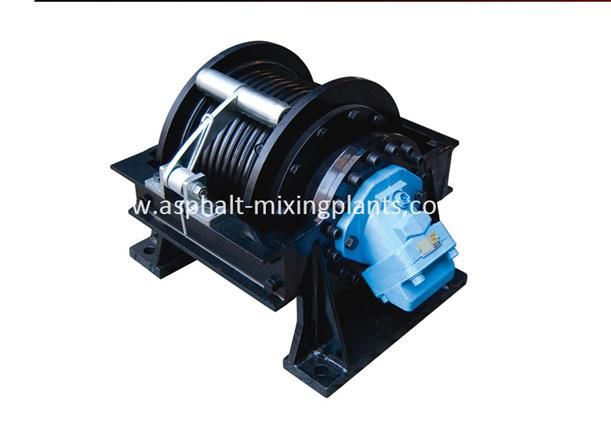

Hydraulic Mooring Winches Dredge Winches Towing&Tugger Winches Manufactory 30KN



YT30
Structural characteristics
1.  Full-float typed planetary gear reducer makes the operation more stable, the structure more reasonable.
2.  Adopt multidisc-typed friction normally-closed arrester makes the brake torque larger , safer and more reliable.
3.  The product is featured by its small size, compact construction and high transmission efficiency.
4.  Adopt the hydraulic motor of foreign famous brand, which has good performance and long life.
5.  The installation bracket can be manufactured according to the customer's requirement.
6.  According to the requirement of customers, manufacture the balance valve and shuffle valve.

Performance parameters sheet


Cable rated pull(bottom layer)	KN/kgs/lbs	30/3000/6620
Working speed(bottom layer)	m/min	30
Response pressure of arrester	Mpa/Bar	<2.5/25
Pressure	Mpa	20
Flux	L/min	54
Drum diameter×Bottom diameter×Length (internal)	mm	360×270×181
Wire volume	m	33
Suggested high-intensity wire rope diameter	mm	Φ13
Weight	Kg	151
