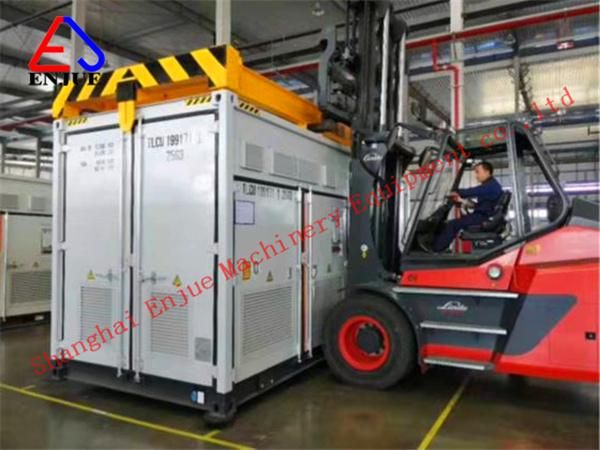

Non Standard 20feet 40feet Semi Automatic Manual I Type Container Lifting Beam Spreader for Forklift
Shanghai Enjue Machinery Equipment Co., Ltd.- After-sales Service：Globle Service Avaliable
- Warranty：1year
- Color：Customized
- Type：Automatic
- Delivery Time：30days
- Delivery Port：Shanghai Port
Base Info
- Model NO.：20-40feet
- Transport Package：Nude Package or as Your Required
- Specification：20ft or 40ft
- Trademark：China Enjue
- Origin：China
- HS Code：843141000
- Production Capacity：3000 Sets,Year
Description

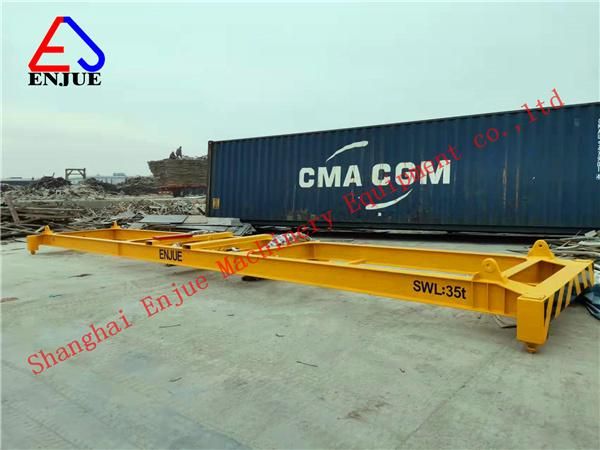

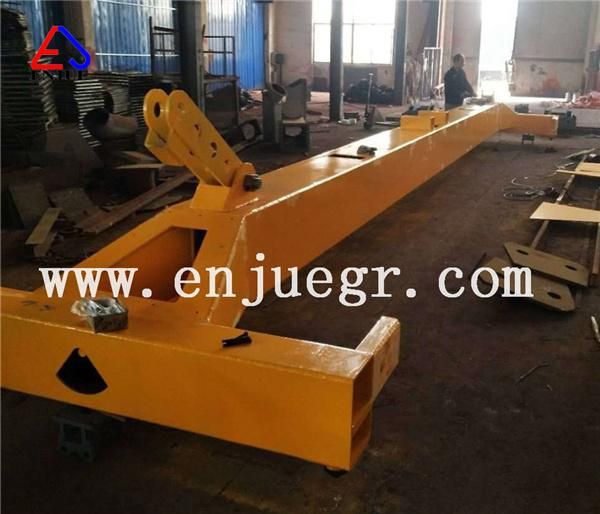

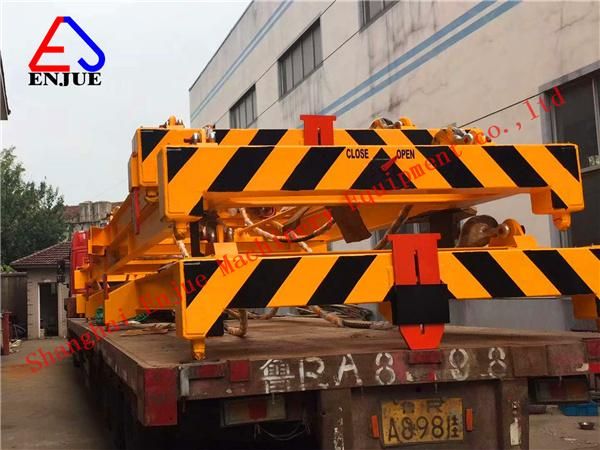

The spreader is equipped on 40t gantry crane to load and unload containers. The spreader is light, no power, easy to operate and cheap. There are two kinds of spreader 32t-20' and 40t-40'.
Operation: first put the four main lifting ropes riggings of the spreaders and one turning stretch wire rope in the hook of the gantry crane. Before lifting, the guider points to open direction. By the localizers at the four sides of the spreader and the skilled operation, the four turning locks of spreader are locked into the corner, and then the hook is started slowly. The stretch wire rope is firstly tight to pull turning mechanism and turn the turning lock in 90°and be closed, and then keep lifting the hook .The container is lifted.
Lay container down: After hanging containers to be scheduled position, keep the hook fall about 1-2m and then lift the hook again. Before the main lifting wire rope is dragged, lift turning rope to make turning lock back to open position and lift the hook to depart the spreader and container .By now the operation is finished.
Maintenance: The link pole of the spreader and turning mechanism should be opened to check regularly and add lubricating oil to make every part turn fluently. If there are obvious damages and distortion, spreader and wire rope should stop work at once.
