• Model NO.：HKG8001
• Driven Type：Hydraulic
• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：CE, RoHS, ISO 9001
• Wheel Type：No-Furrow Filled Tire
• Loading Capacity：230kg
• Wheel Base：3 M
• Table Rotating：360 Deg Continuous
• Rotating Speed：0-1,3rpm
• Wheel Size：Solid Type
• Transport Package：by Sea
• Specification：Lifting time: 16S
• Trademark：Hao Ke
• Origin：China
• Production Capacity：1000000units,Year

Basic Info.

Model NO. HKG8001 Driven Type Hydraulic Running Mode Moving Feature Explosion-Proof, Insulating Certification CE, RoHS, ISO 9001 Wheel Type No-Furrow Filled Tire Loading Capacity 230kg Wheel Base 3 M Table Rotating 360 Deg Continuous Rotating Speed 0-1/3rpm Wheel Size Solid Type Transport Package by Sea Specification Lifting time: 16S Trademark Hao Ke Origin China Production Capacity 1000000units/Year

Product Description

Product Description:

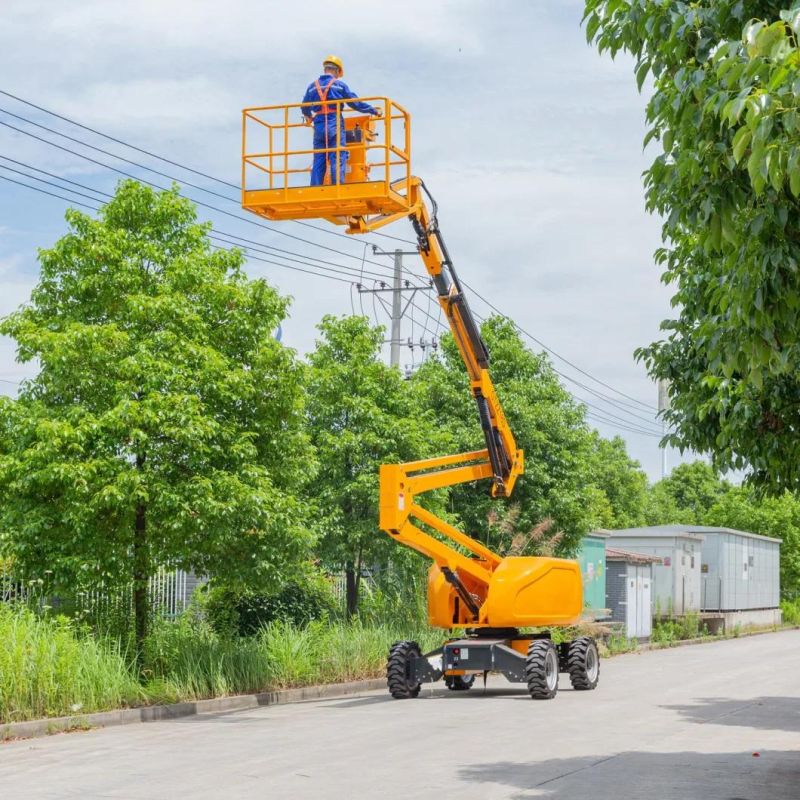

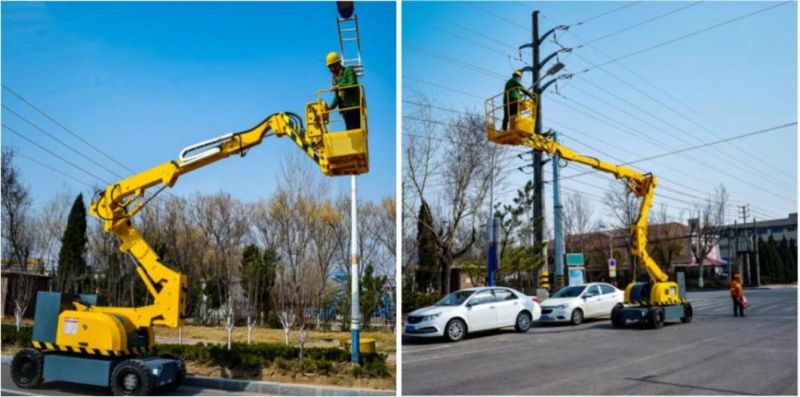

                                       Telescopic Lift Boom Lift Aerial Work Platform

    Self-Propelled telescopic lift is a lifting equipment used for high-altitude operations. It can cross obstacles for high-altitude operations. When the platform is lifted to multiple positions, it can be operated while walking.     It has a compact structure and flexible steering. The width of its chassis can guarantee the equipment enter narrow passages and crowded work areas.     Standby power unit, operable working platform reset, convenient transportation mode can be towed to various places.


Application:

    Mainly used in construction sites, factories, warehouses, stations, hotels, airports, docks, gas stations and other high-altitude equipment installation, maintenance and cleaning of aerial working platforms enable us to complete work faster, better, more convenient and safer.

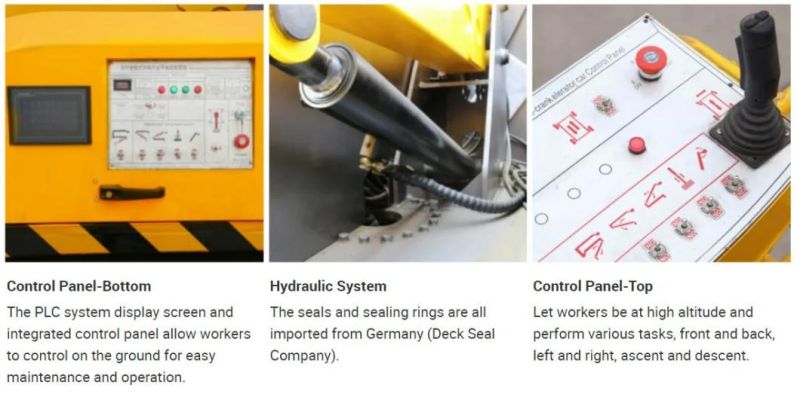

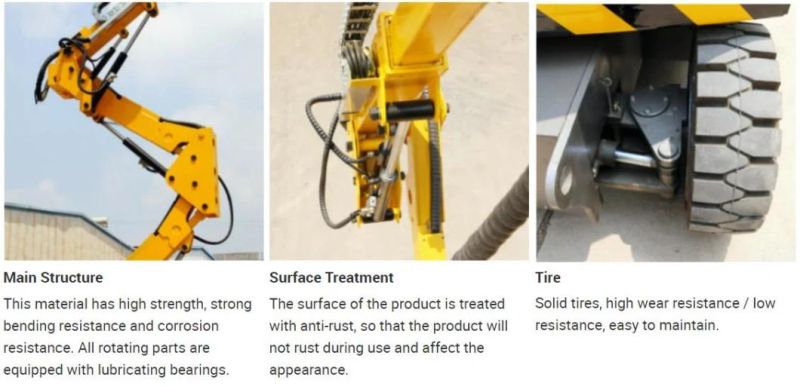

Detail Images:

Product Paramenters:

1-Power Source: Diesel Engine And Battery2-Integrated Design Work Platform, Integrated Control System, Convenient To Control The Front And Back, Left And Right, Elevation And Lowering Of The Equipment3-Hydraulic Cylinder Adopts Imported Double-Layer Sealing Ring, No Oil Leakage For Long-Term Use, Safe And Stable, And Low Failure Rate4-Microcomputer Electrical Control System Supports The Equipment Self-Inspection And Timely Grasps The Working Dynamics Of The Equipment, So As To Facilitate The Inspection Of Equipment Failures5-Optimize The Overall Layout Of The Equipment, Reduce The Deviation Of The Center Of Gravity Of The Equipment, Balance The Working Torque, And Improve The Stability Of The Equipment


MODEL	WORKING HEIGHT	HORIZONTAL EXTENSION	LOADBEARING	GRADEABILITY
HKG16	18.1m (59'5")	12.9m (42'4")	340kg (750lbs)	45%(4WD)
HKG18D	20m (65'7")	14.7m (48'3")	250kg (551lbs)	45%(4WD)
HKG20	22.6m (74'2")	17.1m (56'1")	250kg (Unrestricted) / 480kg (Restricted)	30%(2WD)/45%(4WD)
HKG22D	24.2m (79'5")	16.6m (54'5.5")	250kg (551lbs), 2 persons	30%(2WD)/45%(4WD)
HKG26	27.8m (91'2.5")	20.4m (66'11")	250kg (Unrestricted) / 480kg (Restricted)	30%(2WD)/45%(4WD)
HKG28D	29.7m (97'5")	20m (65'7.5")	250kg (551lbs), 2 persons	30%(2WD)/45%(4WD)
HKG30	32.4m (106'3.5")	21m (68'11")	340kg (Unrestricted) / 480kg (Restricted)	42%(4WD)
HKG32D	34m (111'6.5")	22m (72'2")	250kg (551lbs)	42%(4WD)
HKG36	38.5m (126.4")	19.1m (62'8")	340kg (Unrestricted) / 480kg (Restricted)	40%(4WD)
HKG38D	40.4m (132'6.5")	20.9m (68'7")	250kg (551lbs)	40%(4WD)
HKG40	41.2m (135'2")	23.2m (76'1")	340kg (Unrestricted) / 480kg (Restricted)	40%(4WD)
HKG42	43.6m (143'0.5")	23.2m (76'1")	250kg (Unrestricted) / 480kg (Restricted)	40%(4WD)

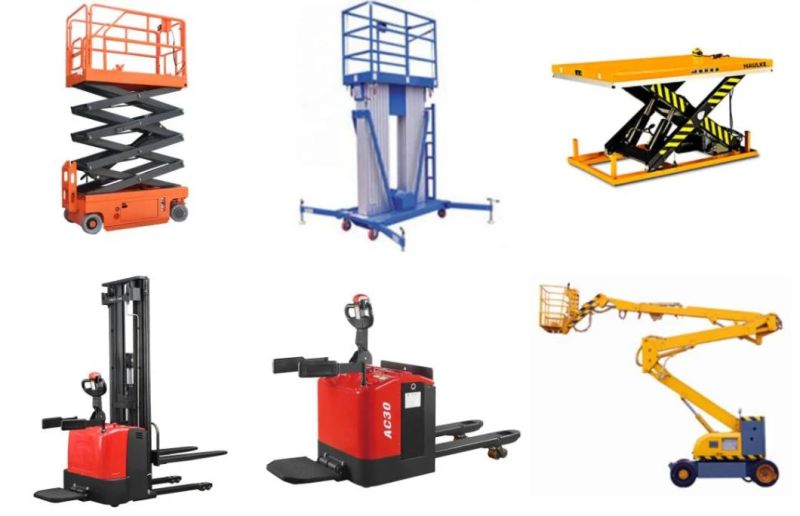

Related Products:


Packing&Shipping:


After-Sale Service:


Certificates:

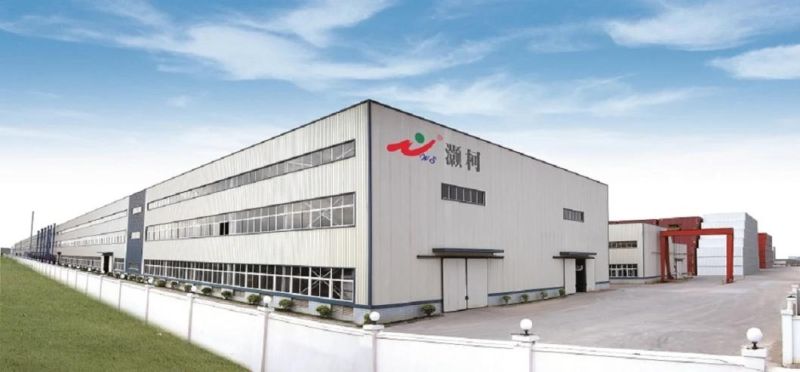

Company Profits:


Haoke is a research and development, production, sales and service in one of the professional manufacturer. Our products mainly include: aerial working platform, scissor type aerial working platform, electric lifting platform, fixed lifting platform,stacker series, lift table series, pallet truck series, forklift attachments series etc.

Our company's products have been certified by a lot of international quality certification, covering an area of 20000 square meters, the annual output has been grown to 30%. In order to better develop overseas market, we had established branch office in Russia, Japan, South Korea, Taiwan, Vietnam.

Haoke would continue to innovate and transform new technologies into products and services with international influence. With pioneering and enterprising spirit of "dare to be the first in the world", which will constantly improves its management methods to precipitate a profound enterprise.



FQA:

1: How long does it take to execute my order?

Please tell us the quantity and model number of the products you are about to order, so that we will give you a detailed schedule.

2: How can I know the completion of my order?

Upon receipt of the deposit, we will immediately arrange for the shippment, after the order is completed, we will also send you the detection images of your order before delivery for you to confirm.

3: Can you arrange to deliver the goods for us?

Yes. When finish the orders, we will inform you and also we can arrange the shipping in the same time. There is LCL shipping and FCL shipping for different order term,the buyer also can choose Air-transport or Ocean shipping for your requirement. When your
orders reach your local nearest Sea port or River port, the logistics company will inform you.

4: Can you guarantee your products?

Yes, we guarantee your 100% satisfaction on all our products. Please feel free to feed back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.

5: Can I visit your company?

Of course, We always with great pleasure at your service. We have office in Shanghai, China. If you want to order our products and visit our company, please contact us to make an appointment.
