• Model NO.：YJP068
• Tonnage：6T
• Reel Number：1
• Running Mode：Moving
• Feature：Antiseptic
• Certification：CE, ISO 9001
• Line Speed：7.5m,Min
• Response Pressure of Brake：2.5,25 MPa,Bar
• Oil Pressure：14,140MPa,Bar
• Oil Flow：55L,Min
• Drum Capacity：45m
• Wire Rope Diameter：φ14
• Net Weight：116kg
• Transport Package：Wood Case
• Specification：330*170*230mm
• Trademark：Zhong Xin
• Origin：China
• HS Code：8425399000

Basic Info.

Model NO. YJP068 Tonnage 6T Reel Number 1 Running Mode Moving Feature Antiseptic Certification CE, ISO 9001 Line Speed 7.5m/Min Response Pressure of Brake 2.5/25 MPa/Bar Oil Pressure 14/140MPa/Bar Oil Flow 55L/Min Drum Capacity 45m Wire Rope Diameter φ14 Net Weight 116kg Transport Package Wood Case Specification 330*170*230mm Trademark Zhong Xin Origin China HS Code 8425399000

Product Description

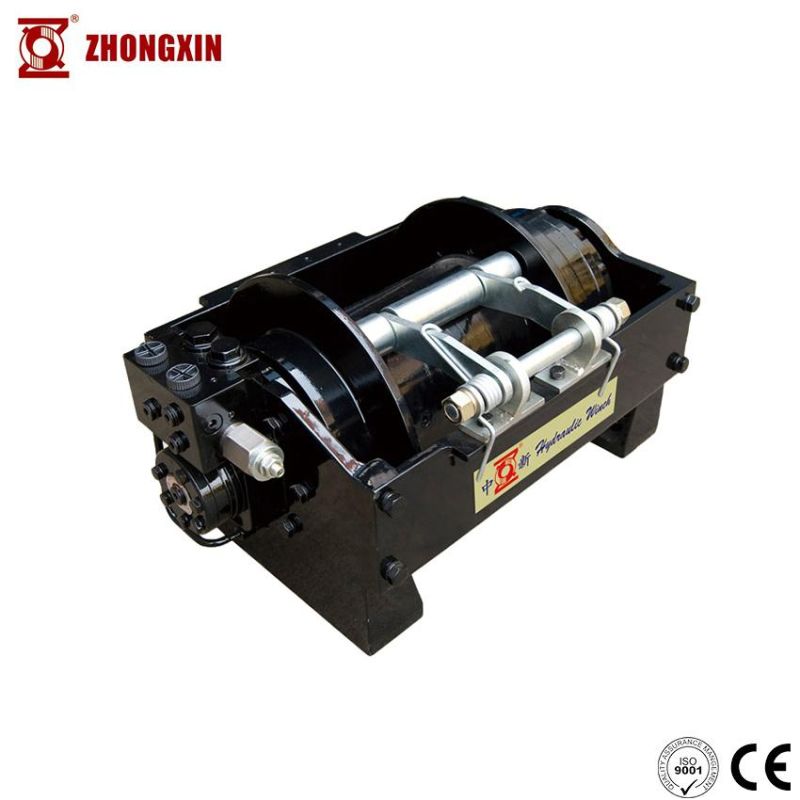

YJP68
Structural characteristics
1.  Full-float typed planetary gear reducer makes the operation more stable, the structure more reasonable.
2.  Adopt multidisc-typed friction normally-closed arrester makes the brake torque larger , safer and more reliable.
3.  The product is featured by its small size, compact construction and high transmission efficiency.
4.  Free wire releasing function.
5.  Adopt imported motor with long use life.
6.  The installation bracket can be manufactured according to the customer's requirement.
7.  According to the requirement of customers, manufacture the balance valve and shuffle valve special for this winch.
8.  Adopt manual, pneumatic clutch equipment.
9.  Manufacture according to GJB82-86 National Hydraulic Winch Standard.

Performance parameters sheet

Cable rated pull(bottom layer)	KN/kgs/lbs	68/6800/15000
Working speed(bottom layer)	m/min	7.5
Response pressure of arrester	Mpa/Bar	<2.5/25
Pressure	Mpa/Bar	14/140
Flux	L/min	55
Drum diameter×Bottom diameter×Length (internal)	mm	330×170×230
Wire volume	m	45
Suggested high-intensity wire rope diameter	mm	Φ14
Weight	Kg	116
