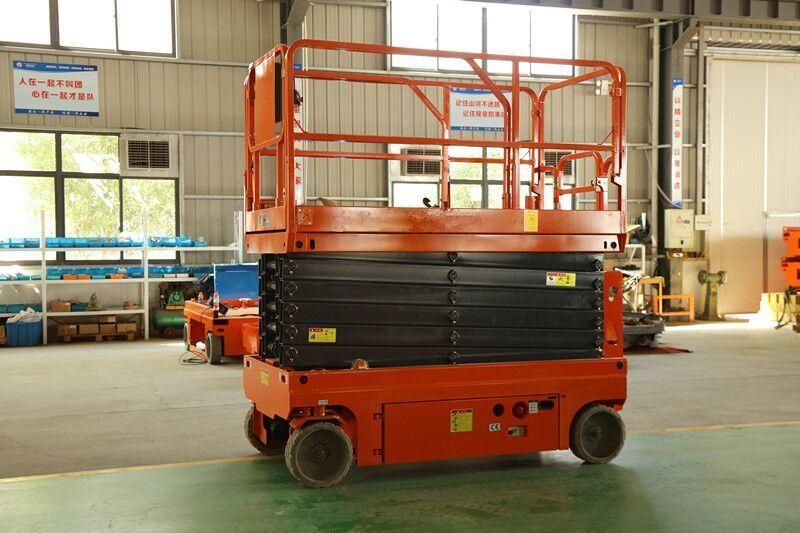

High Quality Self-Propelled Hydraulic Professional Battery Scissor Lift for Sale with CE Certificate (JCPTZ610HD)

Hangzhou Linlift Machinery Co., Ltd.
  • Warranty：One Year Not Include The Quick-Wear Part
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
  • Lift Mechanism：Scissor Lift
  • Carrying Capacity：Middle-Level
  • Moves：Moving
  • Driven Type：DC

Base Info

  • Model NO.：JCPTZ610HD
  • Running Mode：Moving
  • Feature：Explosion-Proof
  • Certification：CE
  • Working Height：8m
  • Transport Package：Standard Export Package
  • Specification：CE
  • Trademark：LINLIFT
  • Origin：China
  • HS Code：842810900

Description

Machine specifications     SPECIFICATIONJCPTZ610HDJCPTZ810HDJCPTZ1010HDWeight2150KG2200KG2300KGOverall height2.19m2.32m2.45mOverall width1.15mOverall height2.48mMaximum slope1.5-3°Gradeability25%Maximum Drive Speeds-Stowed2.5Km/hMaximum Drive Speeds-Raised0.8Km/hGround clearance0.1mWheelbase1.9mfront wheels381*127Back wheels381*127     Electrical specifications     SPECIFICATIONJCPTZ610HDJCPTZ810HDJCPTZ1010HDBatteries4-6V/250AhIntegrated charger24V/25ADrive motors/Lifting motor/Lifting motor24VDC/3KW     Platform Data     SPECIFICATIONJCPTZ610HDJCPTZ810HDJCPTZ1010HDS.W.L500KG450KG320KGS.W.L on extension112KGPlatform size2.27*1.12mPlatform extension size1.2mWorking height8m10m12mPlaform floor height6m8m10mUp/Down speed45/30sec55/40sec70/60sec
