• Model NO.：ATB0.2-10
• Driven Type：Hydraulic
• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：CE, ISO 9001
• Working Height：12 M
• Outreach：5.5 M
• Load Capacity：200 Kg
• Lift Power：AC , Battery , Engine , Dual Power
• Moving：by Car or Truck Tow
• Use：Hydraulic Manual Towable Boom Lift Instead of Ladd
• OEM：Lift Height, Traction Drive, Lift Power
• Safety Parts：Manual Down, Double Brake System
• Spare Parts：Oil Ring, Seal Ring, Travel Switch
• Transport Package：Film Packed and Load in One 20FT Container
• Specification：package size 5.4*1.6*1.9m
• Trademark：MORN BRAND
• Origin：China
• HS Code：8428909090
• Production Capacity：10 Sets Per Month

Basic Info.

Model NO. ATB0.2-10 Driven Type Hydraulic Running Mode Moving Feature Explosion-Proof, Insulating Certification CE, ISO 9001 Working Height 12 M Outreach 5.5 M Load Capacity 200 Kg Lift Power AC / Battery / Engine / Dual Power Moving by Car or Truck Tow Use Hydraulic Manual Towable Boom Lift Instead of Ladd OEM Lift Height, Traction Drive, Lift Power Safety Parts Manual Down, Double Brake System Spare Parts Oil Ring, Seal Ring, Travel Switch Transport Package Film Packed and Load in One 20FT Container Specification package size 5.4*1.6*1.9m Trademark MORN BRAND Origin China HS Code 8428909090 Production Capacity 10 Sets Per Month

Product Description

Basic Parameters:

Item	ATB0.2-16
Platform size(mm)	900*700
Rated capacity(kg)	200
Lifting height (m)	16 m
Max. work height (m)	18 m
Horizontal length(m)	11 m
Guardrail height (m)	1.1
Turn around angle(°)	360
Power	AC / DC/ Engine / Dual power optional

Model List

Model	Platform Size (mm)	Lifting Height (m)	Load Capacity (kg)	Working Radius (m)	Overall Size (mm)	Weight (kg)
ATB-8	900*700 mm	8 m	200 kg	5.5 m	5200*1680*2100	1850 kg
ATB-10	900*700 mm	10 m	200 kg	5.5 m	5200*1680*2100	1850 kg
ATB-12-1	900*700 mm	12 m	200 kg	6.5 m	6200*1680*2100	1950 kg
ATB-12-2	900*700 mm	12 m	200 kg	8 m	4700*1680*2100	2100 kg
ATB-14	900*700 mm	14 m	200 kg	8.5 m	5700*1680*2100	2400 kg
ATB-16	900*700 mm	16 m	200 kg	11 m	5700*1680*2200	2500 kg
ATB-18	900*700 mm	18 m	200 kg	11 m	6500*1800*2250	3800 kg

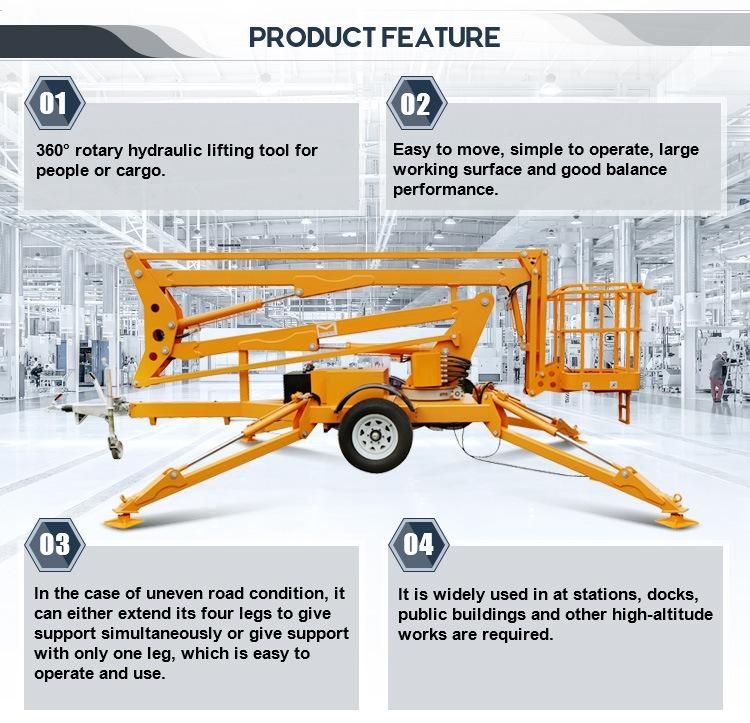

MORN China 10m 12m 14m 16m Hydraulic towable articulated electric boom man lift cherry picker lift spider platform lift

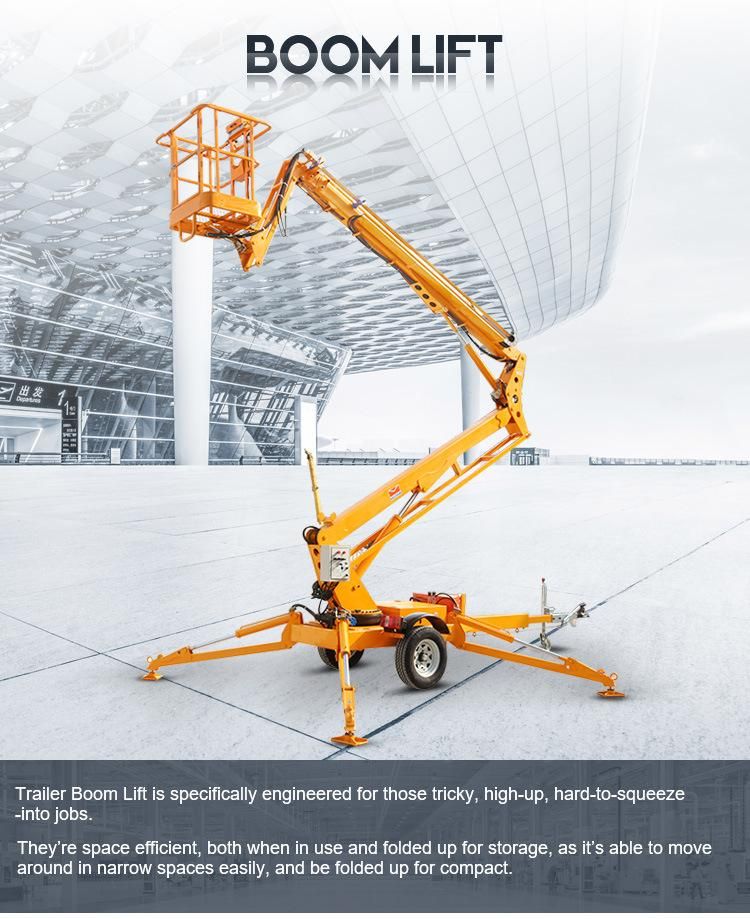

Trailer Boom Lift is specifically engineered for those tricky, high-up, hard-to-squeeze-into jobs.
They're space efficient, both when in use and folded up for storage, as it's able to move around in narrow spaces easily, and be folded up for compact storage.

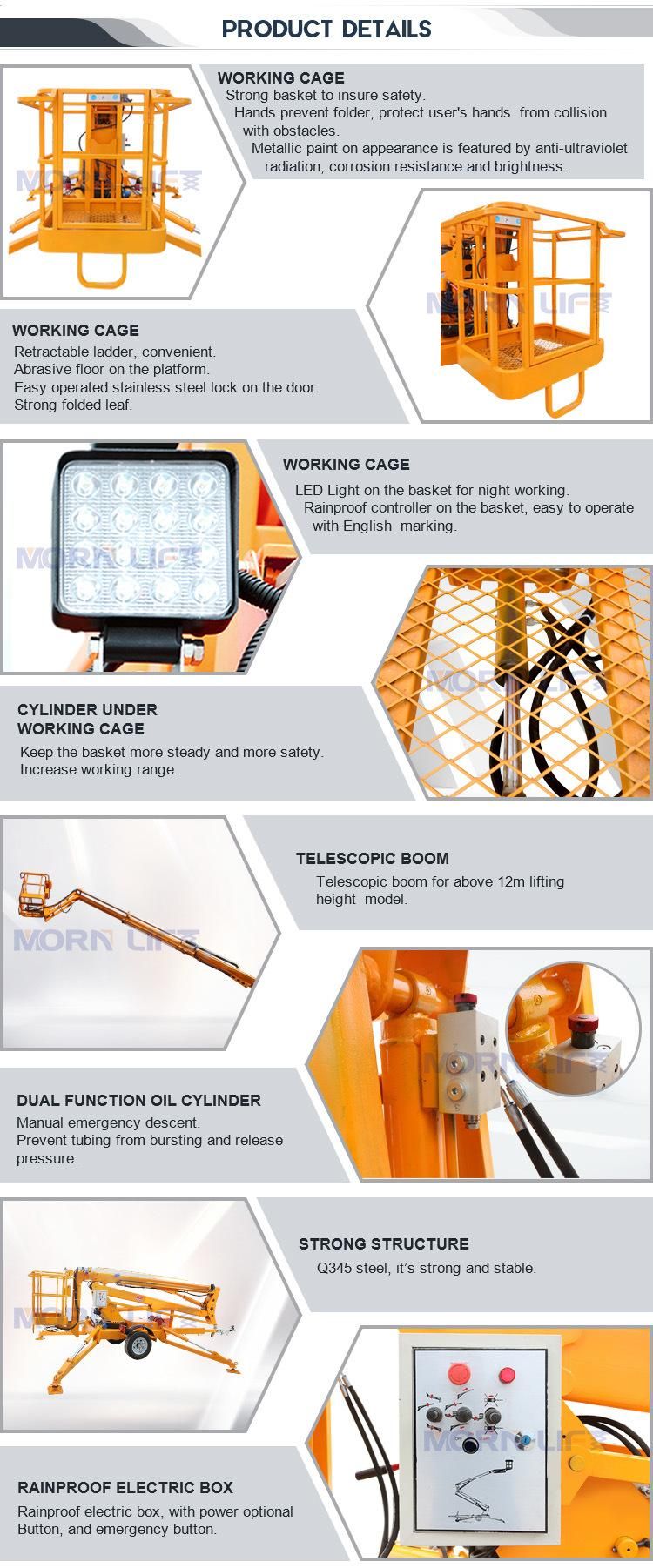

1, WORKING CAGE
Strong basket to insure safety.
Hands prevent folder, protect user's hands from collision with obstacles.
Metallic paint on appearance is featured by anti-ultraviolet radiation, corrosion resistance and brightness.
2, KEY PARTS WORKING CAGE
Retractable ladder, convenient.
Abrasive floor on the platform.
Easy operated stainless steel lock on the door.
Strong folded leaf.
3, KEY PARTS WORKING CAGE
LED Light on the basket for night working.
Rainproof controller on the basket, easy to operate with English marking.
4, CYLINDER UNDER WORKING CAGE
Keep the basket more steady and more safety.
Increase working range.

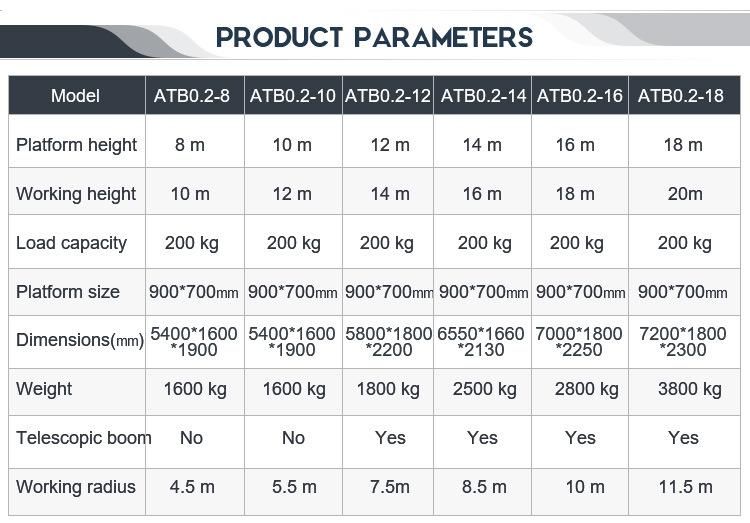

Model	ATB0.2-8	ATB0.2-10	ATB0.2-12	ATB0.2-14	ATB0.2-16	ATB0.2-18
Platform height	8 m	10 m	12 m	14 m	16 m	18 m
Working height	10 m	12 m	14 m	16 m	18 m	20 m
Load capacity	200 kg	200 kg	200 kg	200 kg	200 kg	200 kg
Platform size	900*700 mm	900*700 mm	900*700 mm	900*700 mm	900*700 mm	900*700 mm
Dimensions(mm)	5400*1600*1900	5400*1600*1900	5800*1800*2200	6550*1660*2130	7000*1800*2250	7200*1800*2300
Weight	1600 kg	1600 kg	1800 kg	2500 kg	2800 kg	3800 kg

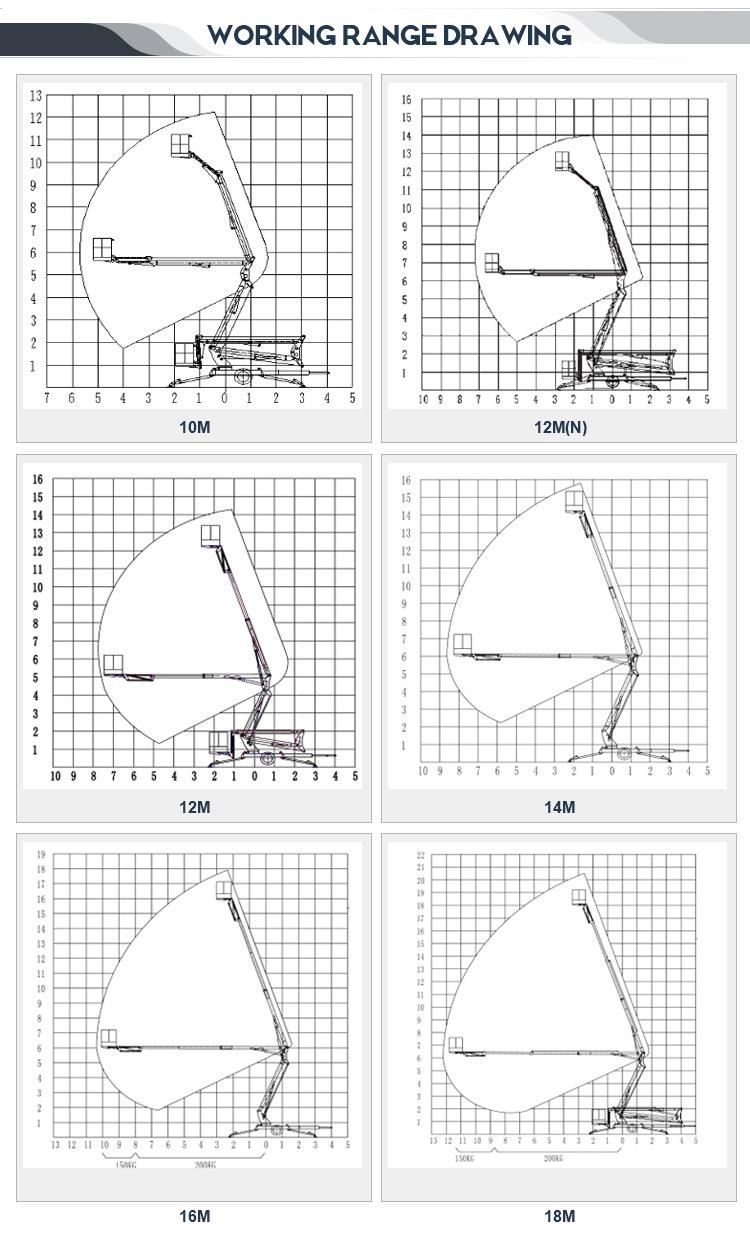

Working radius	4.5 m	4.5 m	7 m	7 m	8 m	8 m
Wind level	<=5	<=5	<=5	<=5	<=5	<=5
Units for 40GP	3 units	3 units	3 units	3 units	2 units	1 units
