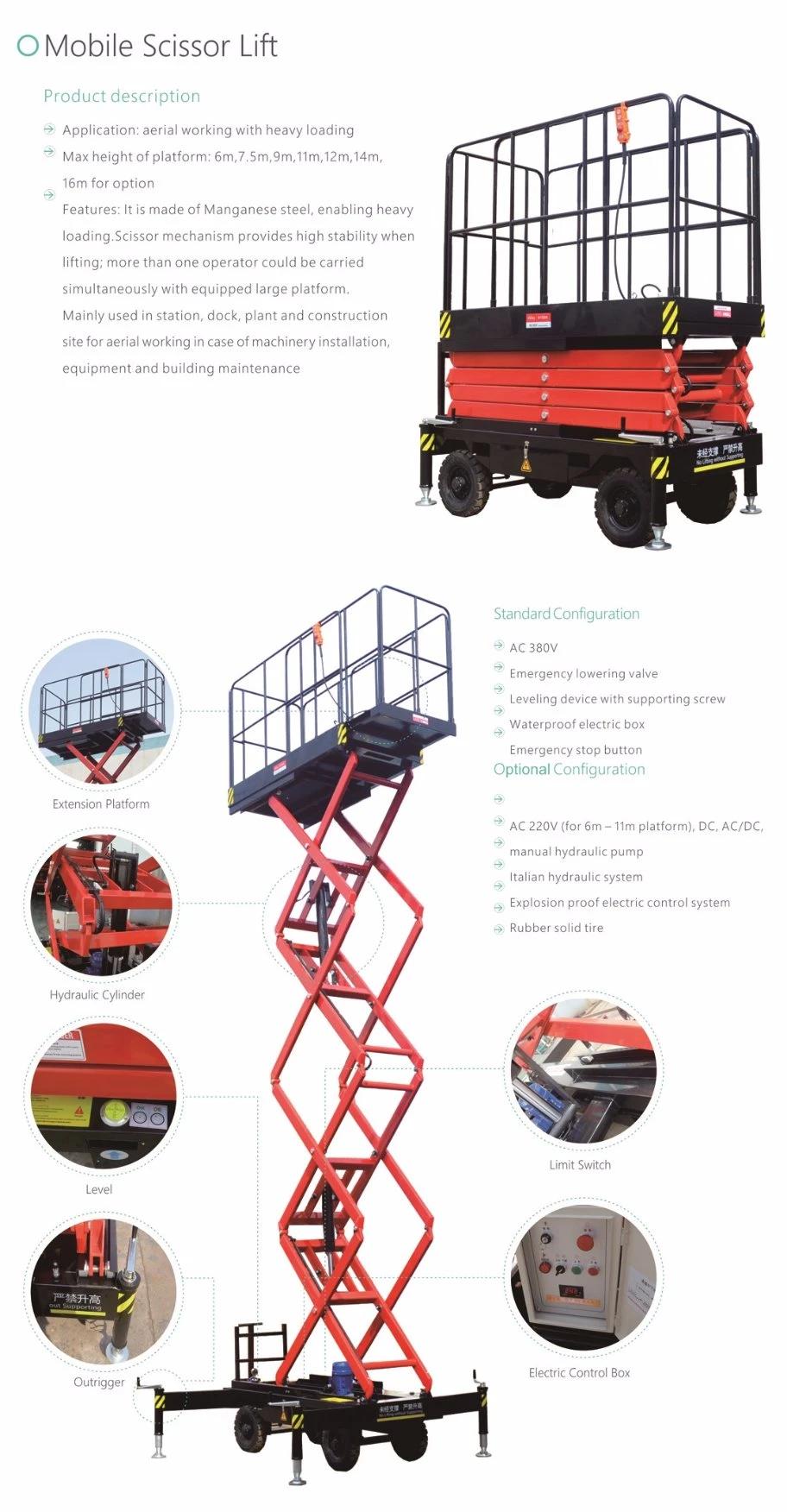

Aerial Working Platform Hydraulic Scissor Lift Equipment (11m)
Boonai (Suzhou) Lift Equipment Co., Ltd.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：Middle-Level
- Moves：Moving
- Driven Type：AC
- Running Mode：Moving
Base Info
- Model NO.：SJY0.45-11
- Feature：Explosion-Proof, Insulating
- Certification：CE, ISO 9001, QC Issued by Gov.
- Max Platform Height：11m
- Max Working Height：13m
- Platform Size：2.45*1.35m
- Rated Load：450kg
- L*W*H：2.25*1.35*1.60m
- Weight：1380kg
- Voltage：380V,50Hz
- Motor Power：3kw
- Delivery Time：15 Days or Rush as Requested
- Warranty：12 Months Apart From Man-Made Faults
- Transport Package：Steel Pallet+Buffer Sponge+Bubble Bag+Water Proof
- Specification：Manganese steel
- Trademark：BOONAI
- Origin：Xiangcheng District, Suzhou
- HS Code：8428909090
- Production Capacity：50 Units Per Month
Description
ParametersModel SJY0.45-6 SJY0.45-7.5 SJY0.45-9 SJY0.45-11 SJY0.45-12 SJY0.45-14 SJY0.45-16 Max Platform height(mm) 6000 7500 9000 11000 12000 14000 16000 Min Platform height(mm) 980 1250 1500 1600 1700 1800 1980 Platform Size(mm) 1800*900 1800*1000 1800*1000 2100*1150 2450*1350 2450*1350 2800*1500 Rated Load(kg) 450 450 450 450 450 450 450 Lifting times(s) 54 72 83 88 90 120 145 Voltage(V/Hz) 380/50 380/50 380/50 380/50 380/50 380/50 380/50 Motor Power(Kw) 1.5 1.5 2.2 3 3 4 5 Overall length (mm) 2000 2000 2000 2250 2600 2600 2950 Overall width (mm) 1080 1200 1200 1350 1550 1550 1750 Overall height (mm) 980 1250 1500 1600 1600 1800 2180 Extended outrigger size(mm) 600 700 700 700 700 800 850 Over weight(kg) 650 1100 1260 1380 1850 2500 2700

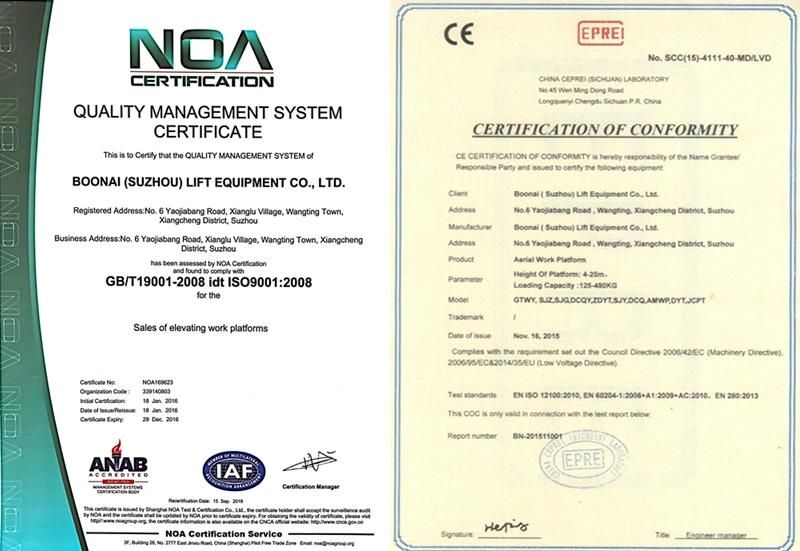

• Company Certificates
• Part or Customers

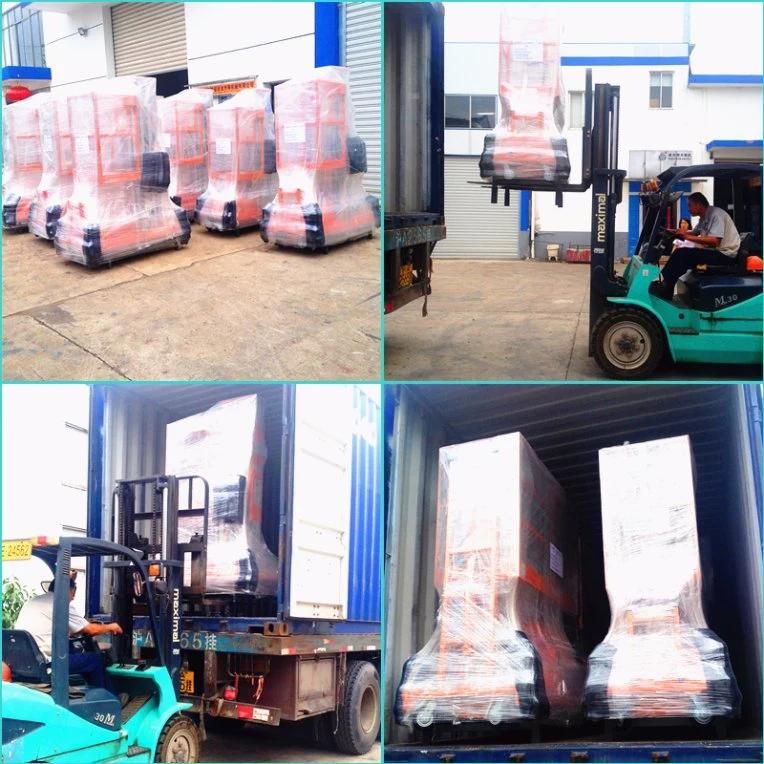

• Packing
• Warranty
1. User-friendly English manual for machine using and maintenance.
2. One year warranty for whole machine without man-made fault.
3. We will send you parts for free if there are any non-human factors problem during
warranty time.
4. 24-hours technical support by email, telephone or other communication online.
5. We could reply you in 2 hours after received your any questions even on weekend and
holidaysm engineers are available to your company if necessary.
