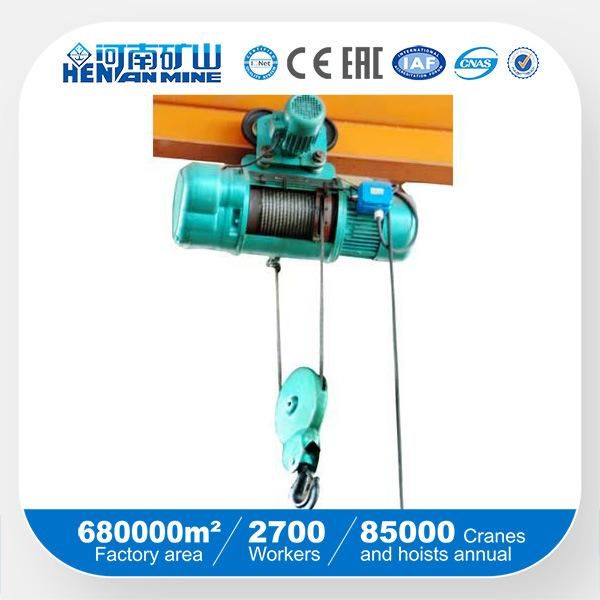

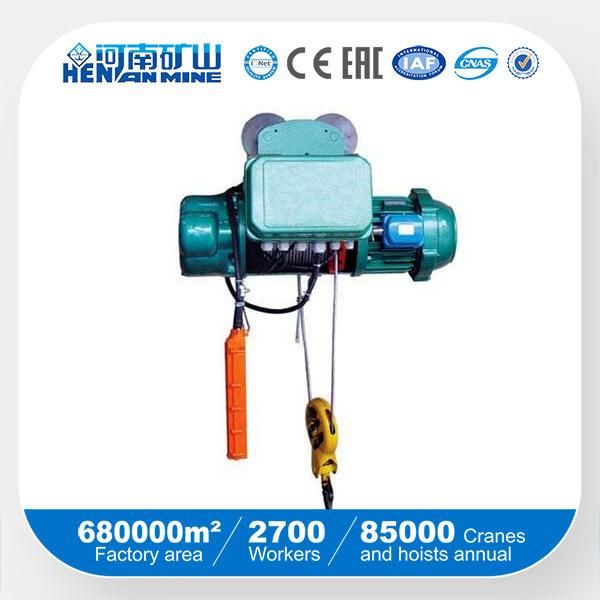

China Good Quotation Electric Wire Rope Remote Hoist 1t, 3t, 5t, 10twith SGS ISO CE Certification

Henan Kuangshan Crane Co., Ltd.
  • Application:Widely
  • Type:Electric Hoist
  • Sling Type:Wire Rope
  • Lift Speed:2~8m,min
  • Maximum Lifting Height:20m
  • Chain Falls:1

Base Info

  • Model NO.:CD,MD
  • Certification:CE, ISO9001:2000, ISO9001: 2000, SGS GOST
  • Condition:New
  • Color:According to Your Demands
  • Lifting Weight:0.5-50t
  • Working Duty:A3-A5
  • Lifting Height:Customized
  • Warranty:1 Year
  • Control:Groud Control
  • safety Protection:Included
  • Emergency System:Included
  • Limit Switch:Included
  • Power Supply:380V 50Hz Three-Phase
  • Weight Overload Protection Device:Included
  • Transport Package:High Quality Plywood Crate
  • Specification:China National standard
  • Trademark:Kuangyuan
  • Origin:Henan, China
  • HS Code:84261990
  • Production Capacity:3000 Sets,Year

Description

Basic Info.

Model NO. CD/MD Certification CE, ISO9001:2000, ISO9001: 2000, SGS GOST Condition New Color According to Your Demands Lifting Weight 0.5-50t Working Duty A3-A5 Lifting Height Customized Warranty 1 Year Control Groud Control safety Protection Included Emergency System Included Limit Switch Included Power Supply 380V 50Hz Three-Phase Weight Overload Protection Device Included Transport Package High Quality Plywood Crate Specification China National standard Trademark Kuangyuan Origin Henan, China HS Code 84261990 Production Capacity 3000 Sets/Year

Product Description

China Good Quotation  Electric Wire Rope Remote Hoist 1t,3t,5t,10twith SGS ISO CE Certification

Product Description:
China Good Quotation Electric Wire Rope Remote Hoist 1t, 3t, 5t, 10twith SGS ISO CE Certification

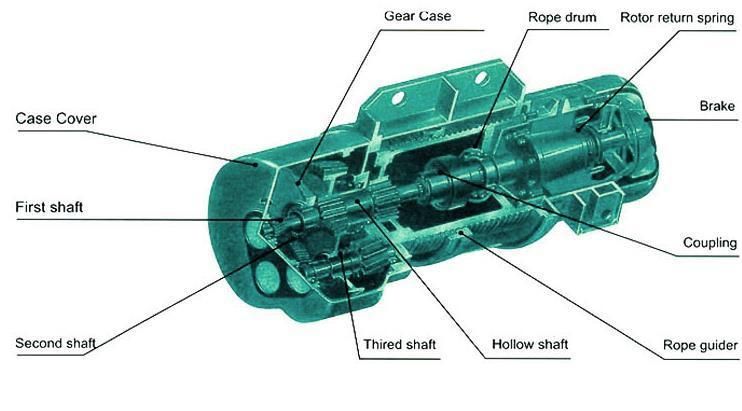

Wire rope Electric Hoist is assembled by several parts: Hoisting Gear Box, Hoisting Motor with brake, Rope Drum, Electric Control Panel and Traveling Trolley. All these units are separately accessible and promptly disassembled cost and stopped.

 Motor: Hoist Motor is a taper type rotor motor with braking, it is made by Nanjing special motor factory, it is of the best quality motors, it has bigger torque, so it can be adapted to moving frequently, the Maximum torque is 2.4-3 times than the rated torque.

Gear Box: Hoist Gear Box has specially treated gears for high wear resistance. Each Geared Shaft assembly is supported on ball or roller bearings, to ensure smooth, low-friction operation.

 Wire Rope: Hoisting ropes comply with the exporting standards. The leading rope taken by the Drum does not slip sideways when slack. The factor of safety, on the nominal breaking strength of the rope is six.

 Rope Drum: Grooved hoist Drum, seamless pipe of adequate length to be wounded in one layer and to provide proper support for the rope to minimize abrasive wear is provided. Drum Shaft resolves on Ball Bearings for ensuring smooth running.

 Electric apparatus controlling system: Model CD1 and MD1 hoist is composed of the contactor box, controlling switch, cut-off limiter, the working voltage of controlling switch is 380V,36V or 24V(safety voltage).

 Rope Guide: Rope Guide is in two halves, ensuring easy accessibility. It encircles the Drum completely so that the rope may not uncoil even when the Hoist is in unloaded condition. The rope guides of our company is thickened and dilated, so that it is not easy to be damaged.

 Hook: The Hook Block is tested to 150 % of full load before assembly. The rope sheaves are fully guarded with protective steel casting. All sheaves rotate on ball bearing the pulley is thicken and dilated than domestic common pulley.

China Good Quotation Electric Wire Rope Remote Hoist 1t, 3t, 5t, 10twith SGS ISO CE Certification

 It is not suitable for CD1 in the condition needed precise adjusting work such as precise installing, Clamping work, sand mode casting and so on, it needs to choose the MD1 wire rope electric hoist whose lifting speed is double.

China Good Quotation Electric Wire Rope Remote Hoist 1t, 3t, 5t, 10twith SGS ISO CE CertificationChina Good Quotation Electric Wire Rope Remote Hoist 1t, 3t, 5t, 10twith SGS ISO CE Certification

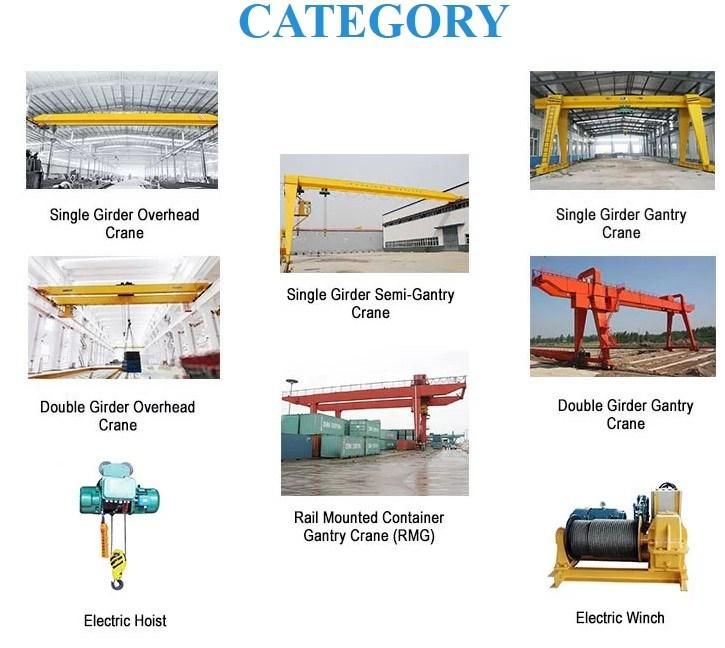

Main Product:
Henan Mine Crane meet the demand factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane price 20 ton 5ton, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane, four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane.
China Good Quotation Electric Wire Rope Remote Hoist 1t, 3t, 5t, 10twith SGS ISO CE Certification

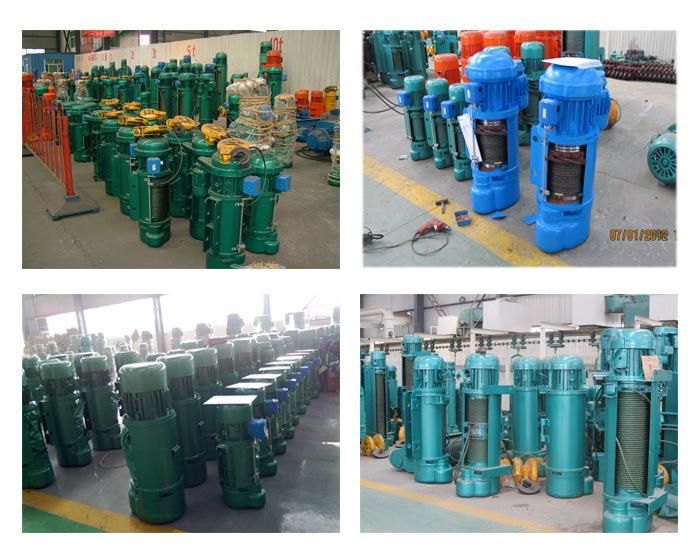

Company Introduction:
China Good Quotation Electric Wire Rope Remote Hoist 1t, 3t, 5t, 10twith SGS ISO CE CertificationChina Good Quotation Electric Wire Rope Remote Hoist 1t, 3t, 5t, 10twith SGS ISO CE Certification
Packing&Shipping:
China Good Quotation Electric Wire Rope Remote Hoist 1t, 3t, 5t, 10twith SGS ISO CE Certification

Customer Visit:
China Good Quotation Electric Wire Rope Remote Hoist 1t, 3t, 5t, 10twith SGS ISO CE Certification

China Good Quotation Electric Wire Rope Remote Hoist 1t, 3t, 5t, 10twith SGS ISO CE Certification
