China Hot Sale Warehouse Use Cqd15 Reach Stacker Electric Stacker for Sale
Shanding Machinery (Shandong) Group Co., Ltd.- After-sales Service:Interview,Video Show
- Warranty:6 Month
- Type:Electric Stacker
- Model No:Cdd15,20
- Rated Loading:1500,200kg
- Max. Rising Height:1600,200,2500,300,3500mm
Base Info
- Power:Electric
- Transport Package:Polywood Box
- Specification:1.5 ,2 TON
- Trademark:SHANDING
- Origin:Shandong, China
- HS Code:8427209000
- Production Capacity:100pieces Per Month
Description
Basic Info.
Power Electric Transport Package Polywood Box Specification 1.5 /2 TON Trademark SHANDING Origin Shandong, China HS Code 8427209000 Production Capacity 100pieces Per MonthProduct Description

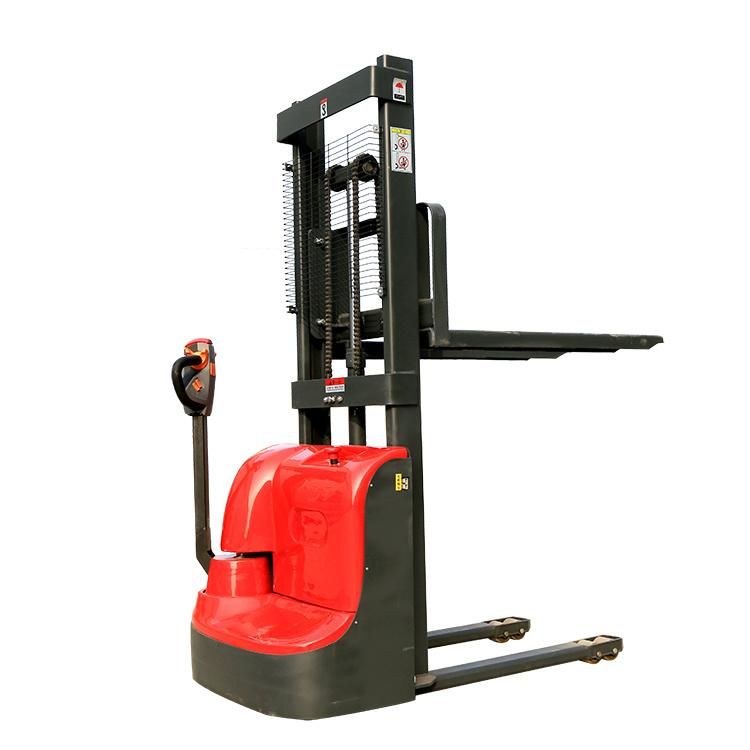

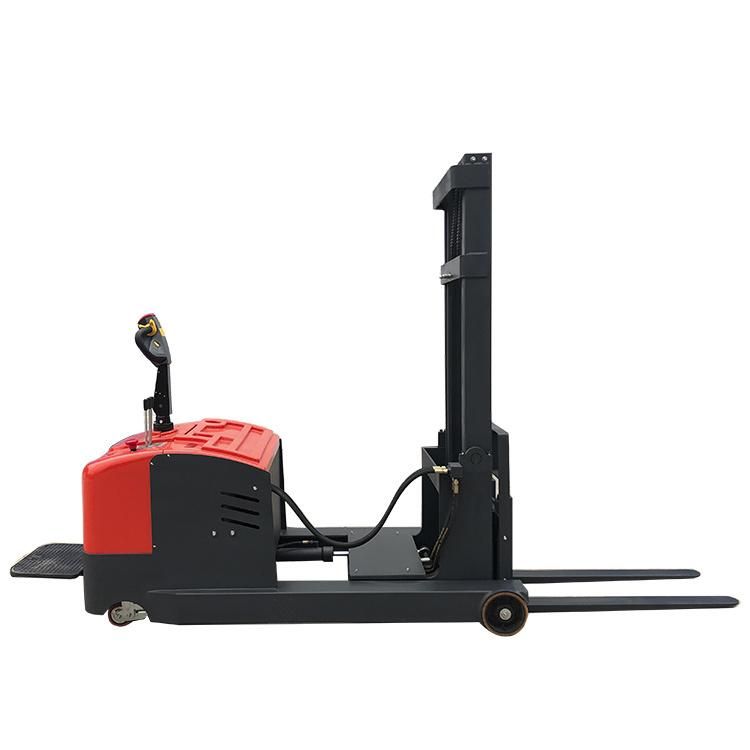

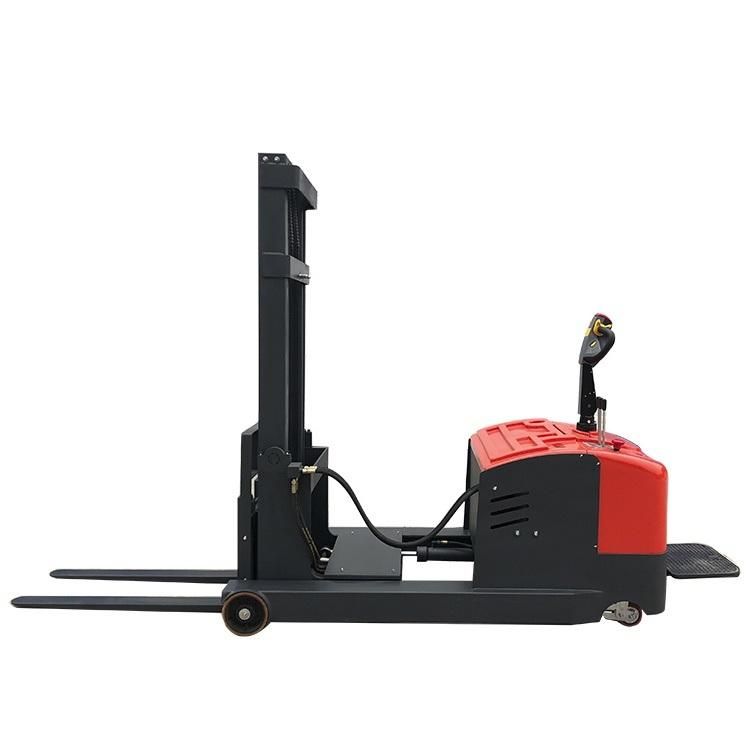

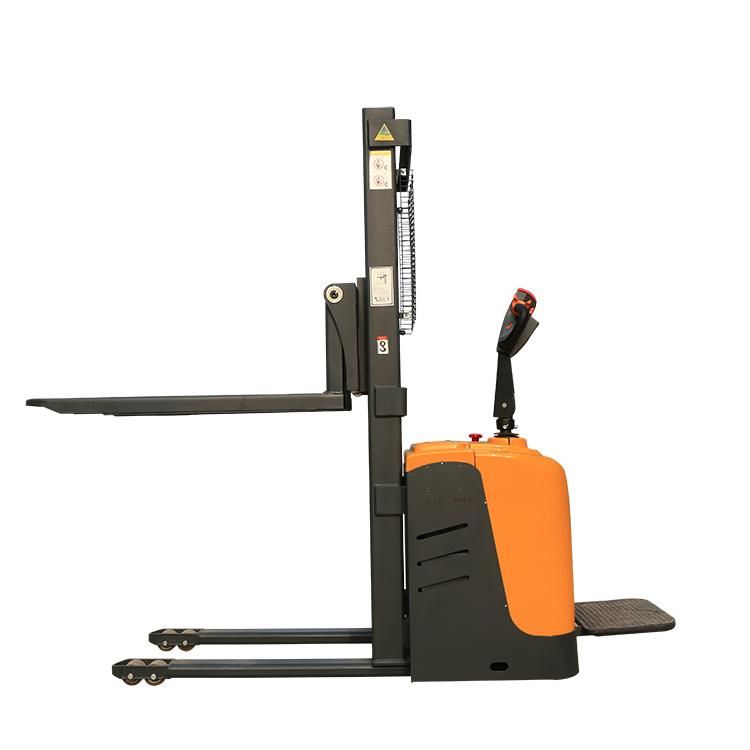

SHANDING FACTORY CDD SERIES ELECTRIC STACKERSHANDING offer a safer alternative to rider forklifts for small to medium sized facilities. Maximum travel speed is a reasonable walking pace of just over 3mph and with rearward facing forks during most travel, a walking operator has unimpaired vision and greater time to react. Switching to Walkie Counterbalanced Stackers can greatly reduce workplace injuries and help to reduce the high costs associated with them, including liability insurance, Workman's Comp claims and operator training.SHANDING stacker are including CDD15,CDD20.

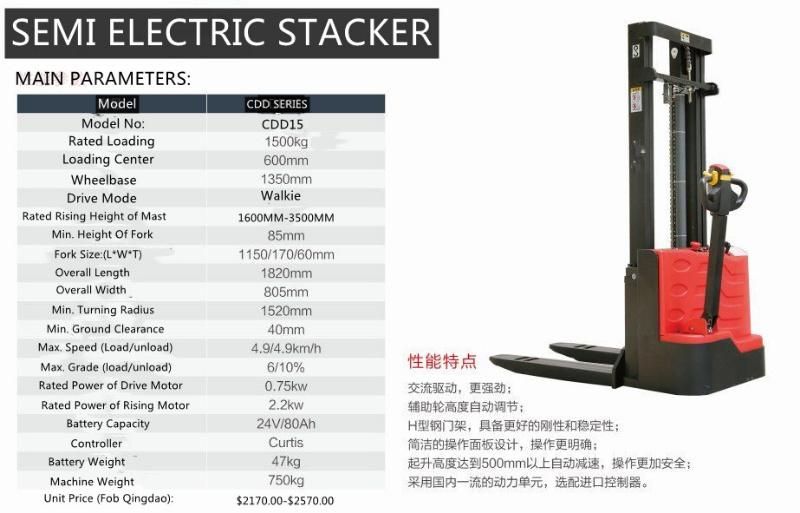

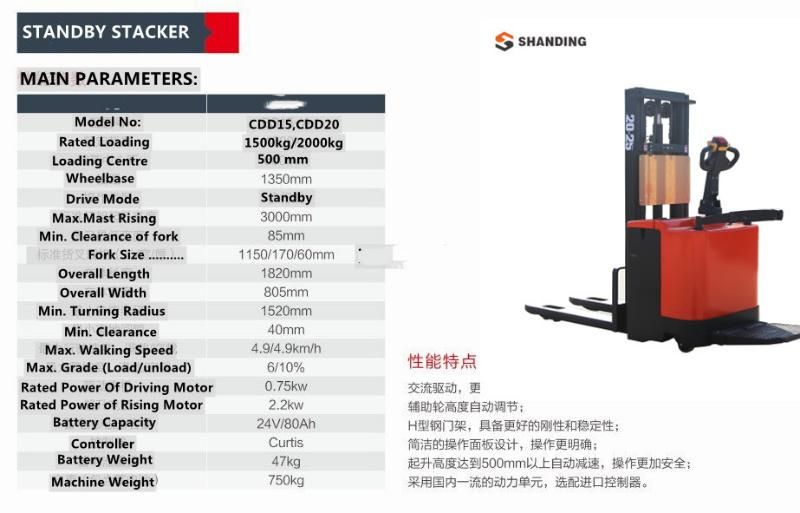

MAIN PARAMEters:
number | Category | unit | number | number | Category | unit | number |
01 | Kind of power | Battery | 15 | Max. lifting speed without load | mm/s | 140 | |
02 | Rated lifting capacity | kg | 1500 | 16 | Max. lifting speed with full load | mm/s | 100 |
03 | Load center distance | mm | 500 | 17 | Max. operating speed without load | Km/h | 5.5 |
04 | Driving style | Standby | 18 | Max. operating speed with full load | Km/h | 5.0 | |
05 | Overall length of the vehicle (the mast is retracted, and the pedals are retracted) | mm | 2780 | 19 | Max. gradeability (full load/no load) | mm/s | 5.0/8.0 |
06 | Overall vehicle width | mm | 1025 | 20 | Drive motor power | kW | 1.5(A.C) |
07 | Can not lift the height of the mast | mm | 2110 | 21 | Oil pump motor power | kw | 2.2 |
08 | Max. height during lifting | mm | 3000 | 22 | Whole machine quality under standard no-load condition | kg | 1574 |
09 | Max. height during operation | mm | 3530 | 23 | Rated battery voltage | V/AH | 24V165AH |
10 | Min. channel requirements | mm | 2900 | 24 | Door frame material | STEEL | |
11 | Min. ground clearance | mm | 70 | 25 | charger | V/A | 24V16A |
12 | Min. turning radius | mm | 2200 | 26 | Bearing wheel size (front wheel) | mm | 200*80 |
13 | Speed mode | MOS | 27 | Balance wheel size (rear wheel) | mm | 100*40 | |
14 | Fork size (length*width*height) | mm | 1070*100*35 | 28 | BRAKE | ELECTRIC |
