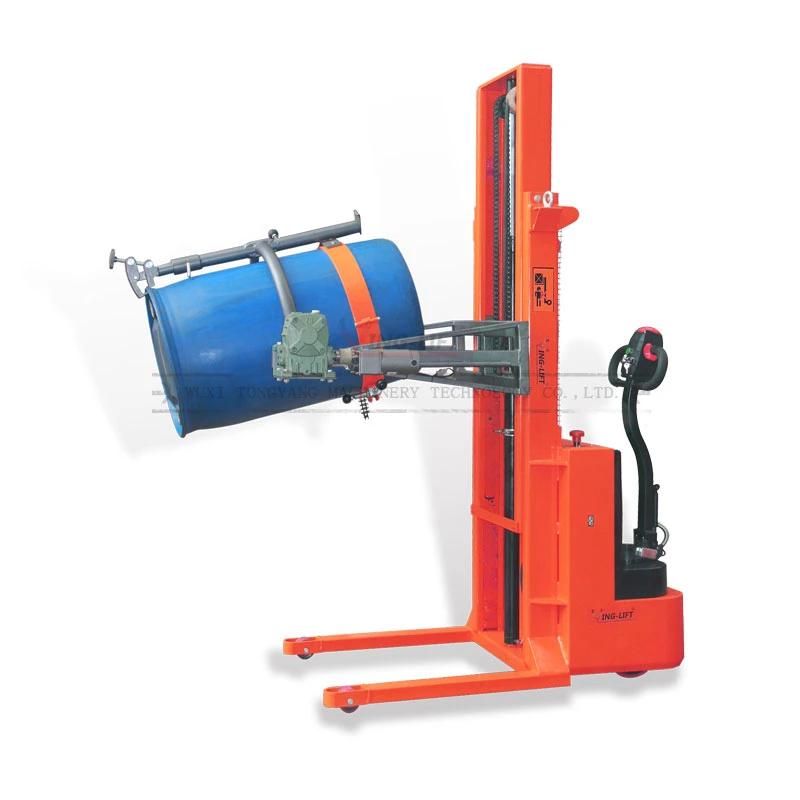

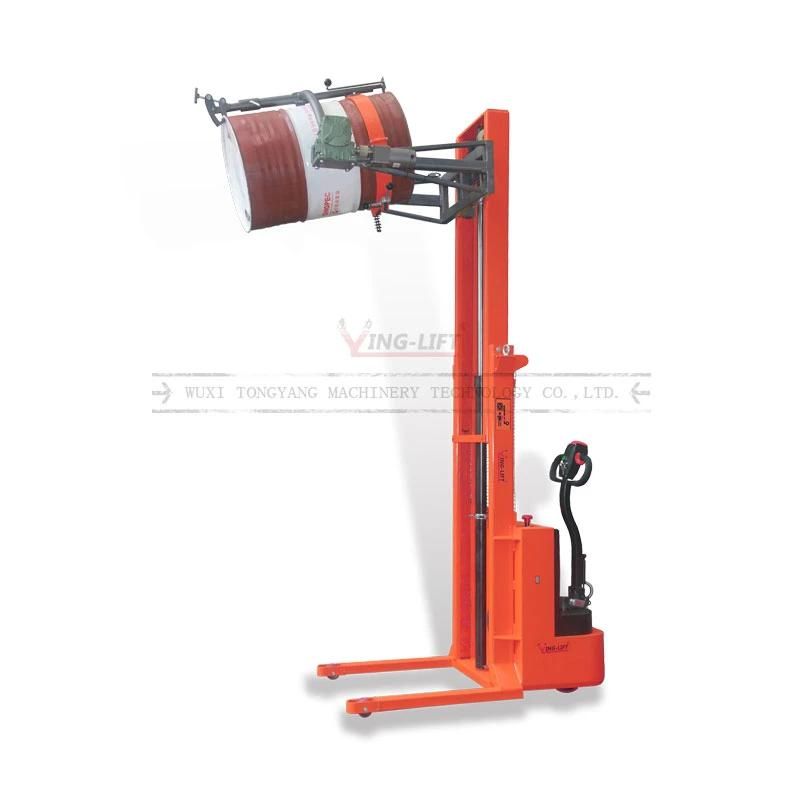

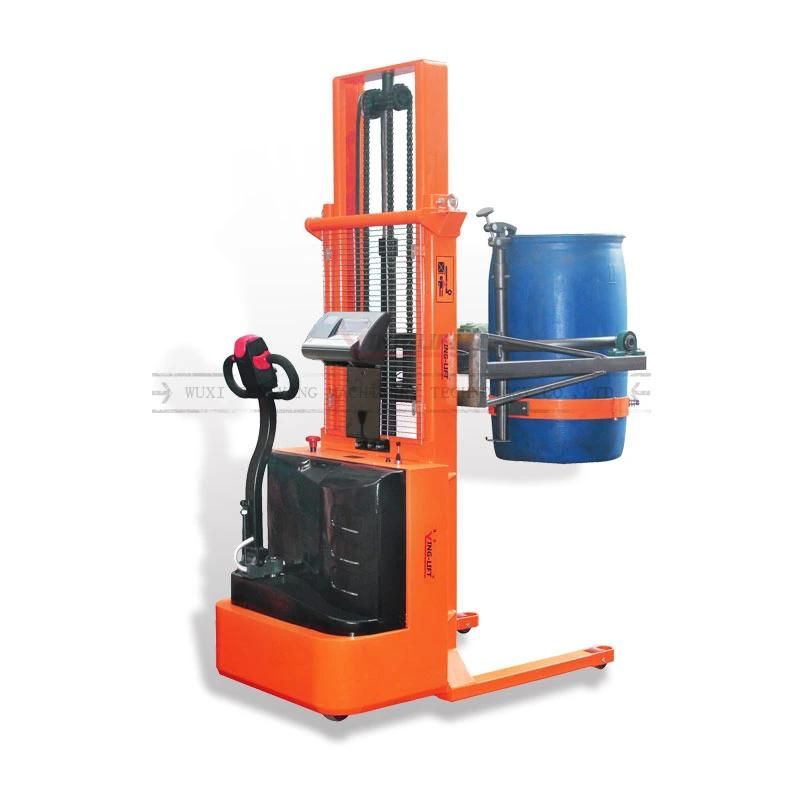

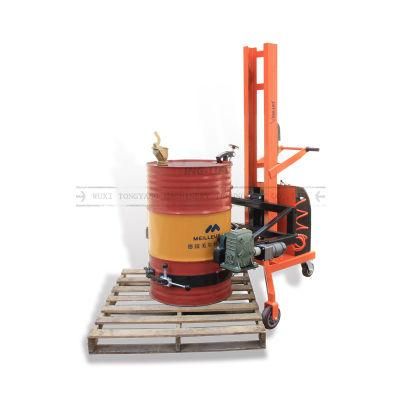

Chinese Factory Supply Electric Drum Rotator with Loading Capacity 650kg and Weighing Scale

WUXI TONGYANG MACHINERY TECHNOLOGY CO., LTD.
  • Warranty：12 Months
  • Type：Gantry Stacker & Reclaimer
  • Drive Type：Battery
  • Operating Type：Pedestrian
  • Rated Load Capacity：650kg
  • Lifting Heigth：2400mm

Base Info

  • Model NO.：YL650A-1
  • Overall Heigth：1860mm or 1860mm or 1850mm
  • Overall Length：1960mm or 1960mm or 1450mm
  • Overall Width：1006mm or 1006mm or 865mm
  • Wheel：Polyurethane
  • Braking Type：Electromagnetic
  • Net Weigth：518kg or 525kg or 470kg
  • Transport Package：Pallets
  • Specification：7 cube
  • Trademark：Yinglift
  • Origin：China
  • HS Code：8427900000
  • Production Capacity：50 PCS ,Month

Description

ModelYL650AYL650A-1Drive type/BatteryBatteryOperating type/PedestrianPedestrianLoad capacitykg650650Lifting heightmm24002400Overall heightmm18601860Overall lengthmm19601960Overall widthmm10061006Turning radiusmm16501650Grade ability (Fully-loaded/no-load)%3/53/5Driving wheel sizemmØ250*80Ø250*80Wheel/PolyurethanePolyurethaneBraking type/ElectromagneticElectromagneticDrive motor powerkw1.21.2Lifting motor powerkw2.22.2Noise leveldb(A)<70<70Batteryvoltage/capacityV/Ah24/3024/30ChargerV/A24/12024/120Net weightkg518525Drum rotating range°360360












Chinese Factory Supply Electric Drum Rotator with Loading Capacity 650kg and Weighing ScaleChinese Factory Supply Electric Drum Rotator with Loading Capacity 650kg and Weighing ScaleChinese Factory Supply Electric Drum Rotator with Loading Capacity 650kg and Weighing Scale






Chinese Factory Supply Electric Drum Rotator with Loading Capacity 650kg and Weighing Scale


Chinese Factory Supply Electric Drum Rotator with Loading Capacity 650kg and Weighing Scale
Chinese Factory Supply Electric Drum Rotator with Loading Capacity 650kg and Weighing ScaleFAQ:
1.Q.Are you factory?
   A.Yes.Our factory mainly produce drum handling equipment,drum stacker,drum truck,aluminum hand trolley ,kinds lift table ,forklift attachment and shop crane with CE approved, pasted Third-party certification(SGS/ISO9001).
2.Q.Can I place mix order?
   A.Yes.You can mix different models as your request.
3.Q.Can we order products?
   A.Yes. Customers can option size,color,weighing,panel etc.Welcome ODM/OEM orders.
4.Q.Can we visit your factory?
   A.Welcome anytime .Our factory address:No. 38, Yansheng Road, Yanqiao Industrial Park,Huishan District,Wuxi,Jiangsu,China (Mainland) .You can take the plane, high-speed rail, motor car, train, car.
5.Q.Are the products covered by a warranty?
   A.Yes.All our machines carry a full 1 year major parts warranty.

Quality Control in our Wuxi Tongyang:
The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
1) Strict quality control system on the whole process of production
2) Imported key arts to ensure the high quality of our products
3) Advanced equipment and tools for examination and quality control
4) 100% strict examining products before shipment
5) All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.
