• Model NO.：XCS45U
• Trademark：XCMG
• Origin：Xuzhou, Jiangsu, China
• HS Code：87051023
• Production Capacity：1000,Year

Overview Product ParameterstemUnitParameters
Lifting performanceMax. lifting capacitykg45000Stacking capacity--5-5-4Max. hoisting speed (without/with load)mm/s350/200Max. lowering speed (without/with load)mm/s330/260Max. lifting heightmm15100

Traveling performanceMax. travel speed (without/with load)km/h27/23Drive mode--4×2, Front axle driveMax. grade-ability%30%Min. turning radiusm8.1Steering mode--Rear axle steeringWeightCurb masskg70995
DimensionOutline dimension (L×W×H)mm11295×6052×4489Wheel basemm6000Track (front wheel/rear wheel)mm3024/2750Min. ground clearancemm365Approach angle/Departure angle°17.5/26.5


Power

EngineModel--CumminsQSMPower/rotation speedkW/r/min250/2100
Emission standard

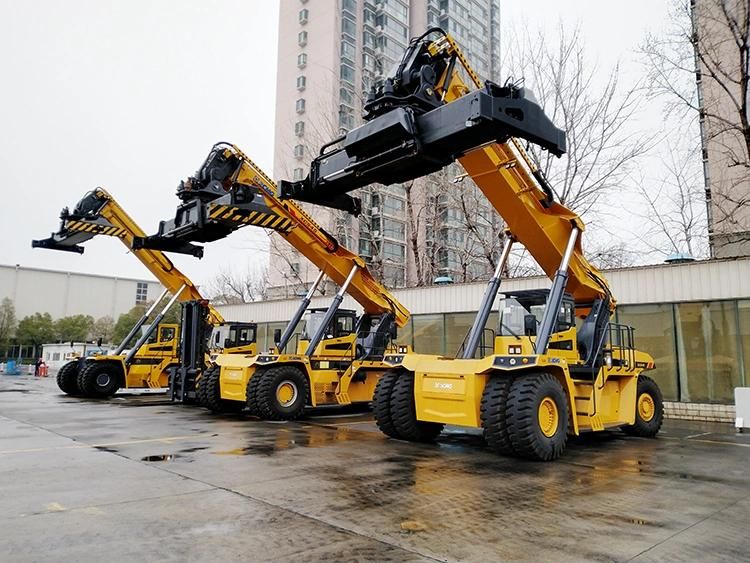

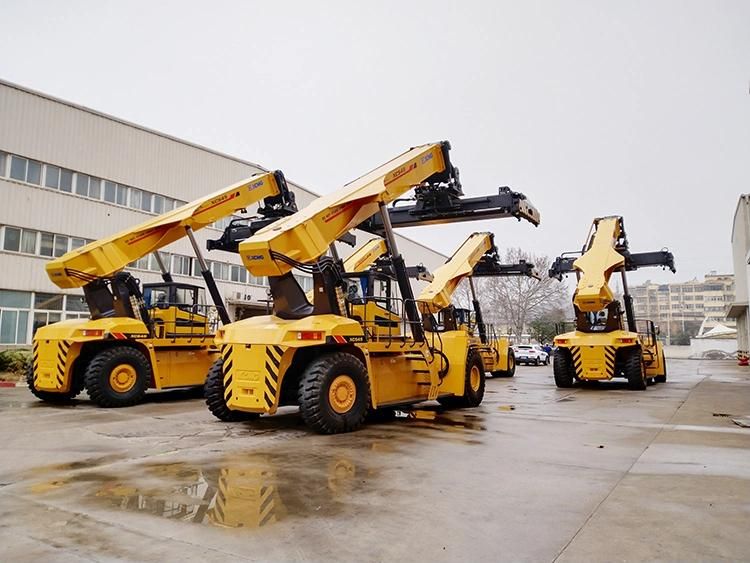

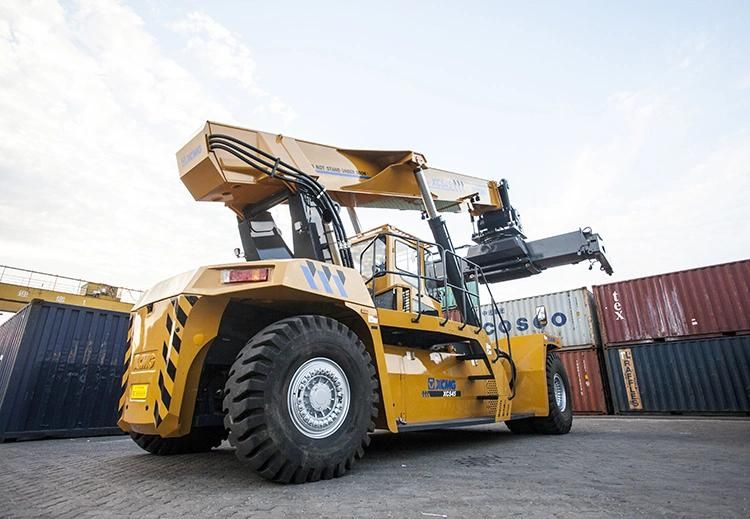

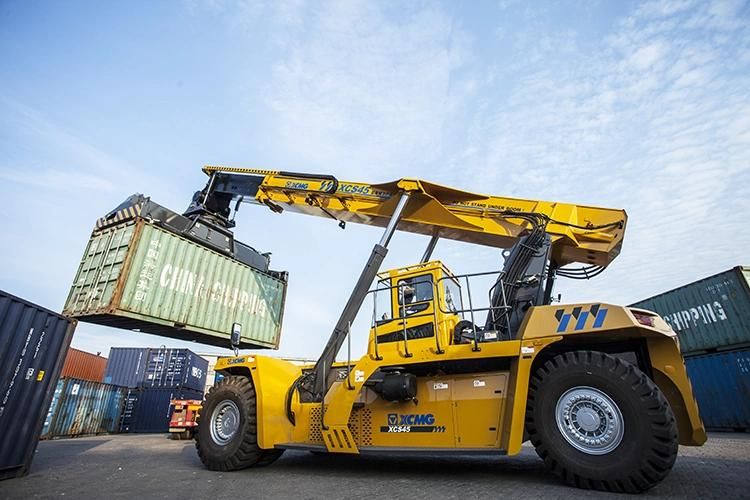

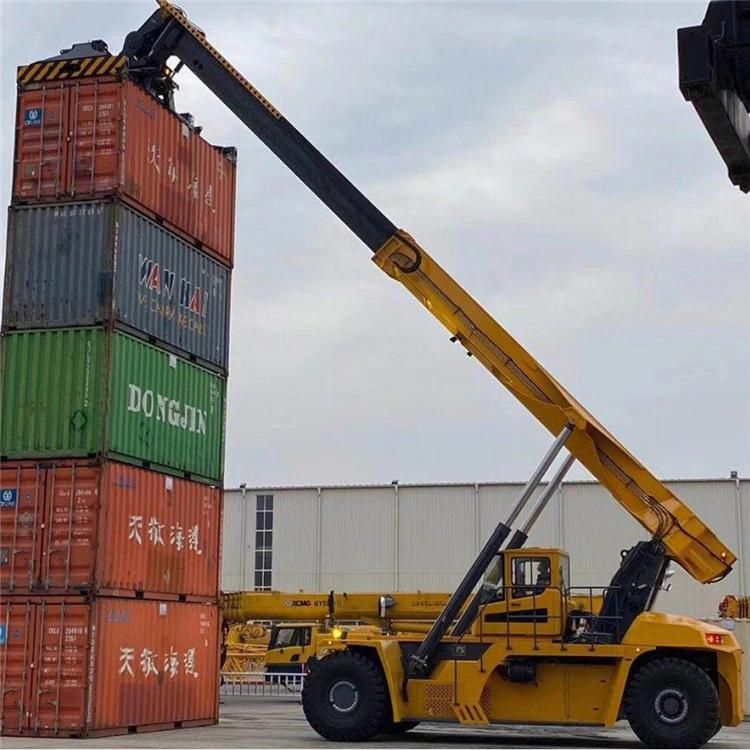

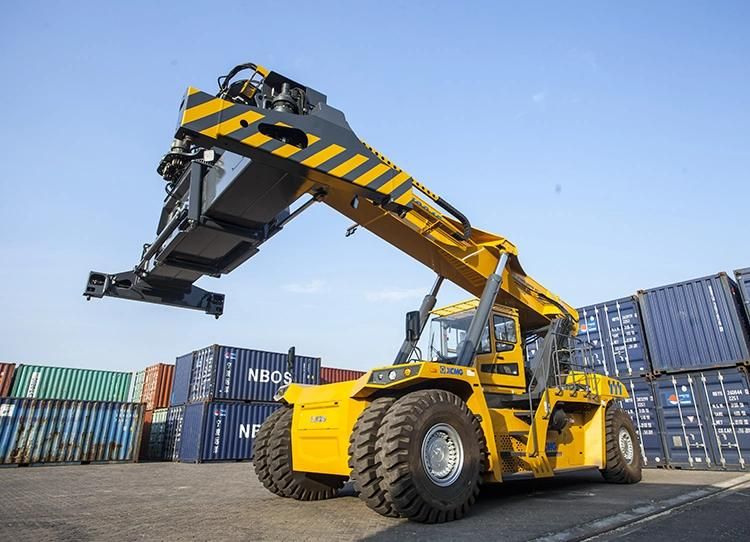

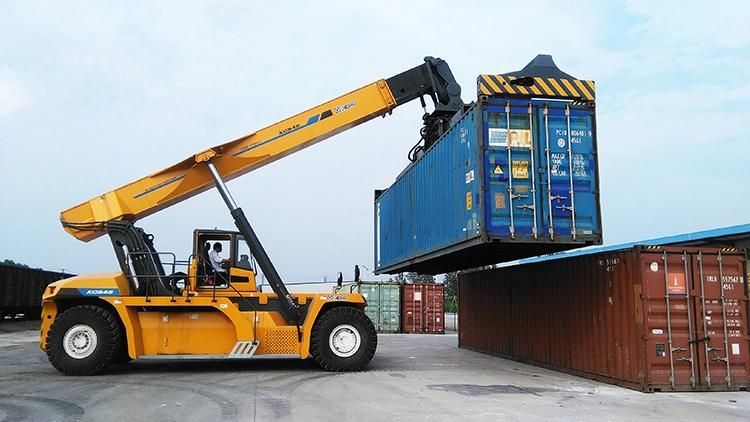

--Off-road U.S.EPA Tier3, EU Stage IIIATransmissionModel--ZF 5WG261Gear--FWD 5, REV 3Drive axleModel--Kessler D102PL241Product Show
Company Profile

FAQ

1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,

3: What about the delivery time?
A: 30 days after receiving the deposit.

4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.

5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
