• Model NO.：SABH 02
• Max Lifting Capacity：1 Ton
• Lifting Speed：20m,Min
• Bucket：Rotating Type to Release Goods
• Frame：Detachable, Easy for Shipment
• Type：Bridge Crane
• Application：Construction Usage
• Tower Crane Type：Under Slewing Cranes
• Sling Type：Wire Rope
• Main Girder Form：Double Girder
• Power Source：Gasoline or Diesel
• Installation：Detachable, Installed on Site
• Certification：ISO9001: 2000
• Transport Package：Wooden Case
• Specification：SGS
• Trademark：Super-above
• Origin：Jiangsu, China
• HS Code：8501510090
• Production Capacity：5000PC,Year

Basic Info.

Model NO. SABH 02 Max Lifting Capacity 1 Ton Lifting Speed 20m/Min Bucket Rotating Type to Release Goods Frame Detachable, Easy for Shipment Type Bridge Crane Application Construction Usage Tower Crane Type Under Slewing Cranes Sling Type Wire Rope Main Girder Form Double Girder Power Source Gasoline or Diesel Installation Detachable, Installed on Site Certification ISO9001: 2000 Transport Package Wooden Case Specification SGS Trademark Super-above Origin Jiangsu, China HS Code 8501510090 Production Capacity 5000PC/Year

Product Description

PRODUCT  DESCRIPTION

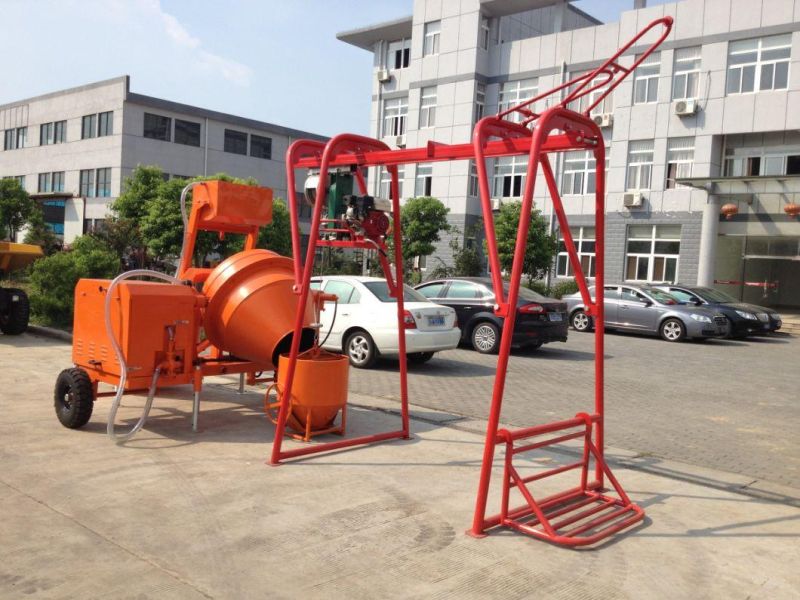

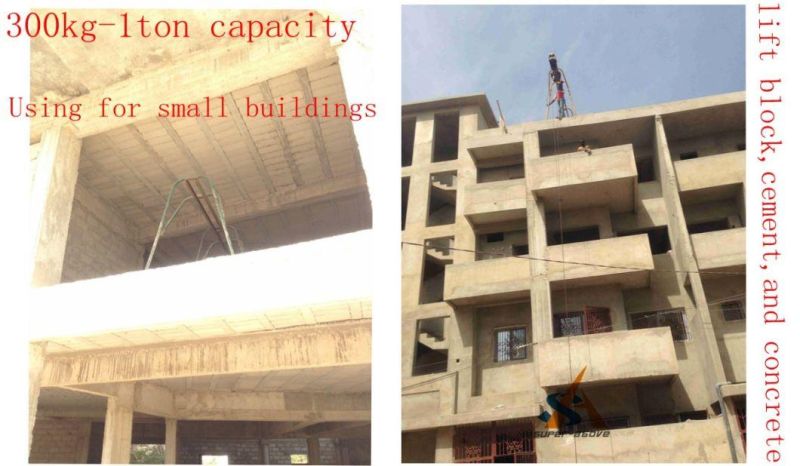

To lift blocks, concrete, and other building materials, and it is portable to release the concrete or block. With most competitive
spare parts and structures to keep our top quality in the construction machinery field.

It can lift 1ton goods to 30m height, reverse shift to put down the bucket,0.6 CBM volume for the bucket. Also with a strong
quality frame, bucket. Any type of engine, bucket, frame, can be up to your requirement.


PARAMETERS

Model	PBH500	PBH300
Max lifting capacity	500kg	300kg
Lifting speed	20m/min	10m/min
Wire rope size	Dia 6mm	Dia 6mm
Max Lifting height	30 m	22 m
Power source	Honda Petrol Engine	AC220V/230/50/60Hz
Weight of hoisting unit	140kg include Gearbox	38kg
Overall size	304*362*335 mm	540*505*170 mm
Total weight	244 kg	180 kg
Balance weight prepared by users	250kg	200kg
Container loading plan	1*20'/25 Units	1*20'/60 Units

Characteristic: the frame is detachable, installed on-site; it's convenient for transport and move, easy to dismantle. it equips with a
gasoline engine, suitable for a situation without electric source. It can be designed according to customer's request.
