• Model NO.：LD-10T
• Certification：CE
• Condition：New
• Color：Blue
• Name：Overhead Traveling Crane Beam
• Factory：More Than 20 Years Manufactory Experience
• Brand Name：Hugo
• Loading Port：Shanghai Port,Tianjin Port
• Warranty：1 Years
• Painting Color：as Your Order
• Quality Control：According to EU Standard
• Standard Speed：20m,Min
• Payment Term：T,T L,C
• After-Sales Service：Overseas Srevice Provided
• Transport Package：Packing by Carton, Woodon Case
• Specification：CE ISO, TUV, SGS
• Trademark：HUGO
• Origin：China-Shanghai
• HS Code：8425110000
• Production Capacity：100000PCS ,Month

Basic Info.

Model NO. LD-10T Certification CE Condition New Color Blue Name Overhead Traveling Crane Beam Factory More Than 20 Years Manufactory Experience Brand Name Hugo Loading Port Shanghai Port,Tianjin Port Warranty 1 Years Painting Color as Your Order Quality Control According to EU Standard Standard Speed 20m/Min Payment Term T/T L/C After-Sales Service Overseas Srevice Provided Transport Package Packing by Carton, Woodon Case Specification CE ISO, TUV, SGS Trademark HUGO Origin China-Shanghai HS Code 8425110000 Production Capacity 100000PCS /Month

Product Description

high quality 10t overhead traveling crane beam

Description Of overhead traveling crane beam

End carriage of European single girder crane using rectangular steel tube as components, NC boring milling customized machine , completes opening , boring , milling ,and F series reducer, hollow shaft drive. High work level, wide range of speed regulation, follow the word trend.

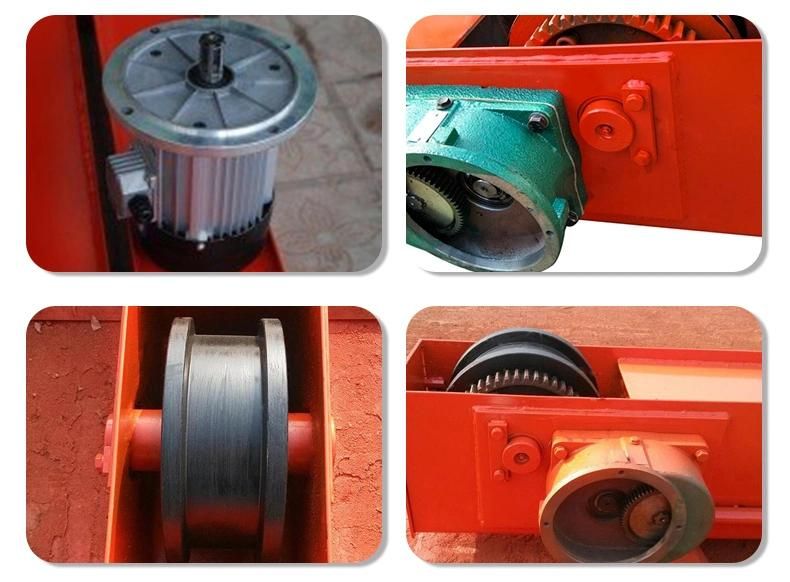

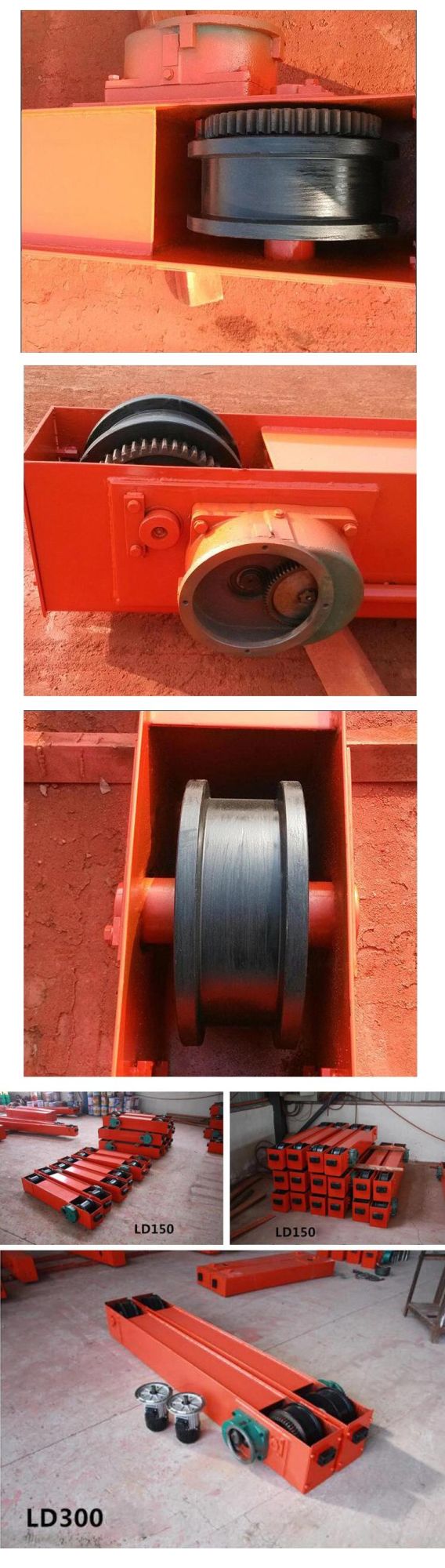

A complete set of end carriage including wheels, motors, main beam connecting plates, main beam connecting bolts, stamping plates , polyurethane buffers and so on.

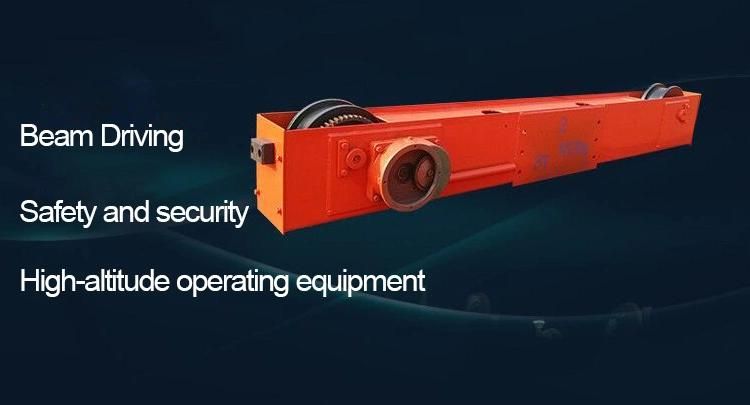

Our end carriages are compact, rail-mounted travel units for direct connection to crane girders and other load-bearing structures. The end carriages consist of a torsionally rigid box section, wheel blocks and one of our geared motors. They offer excellent travel characteristics - also for high loads

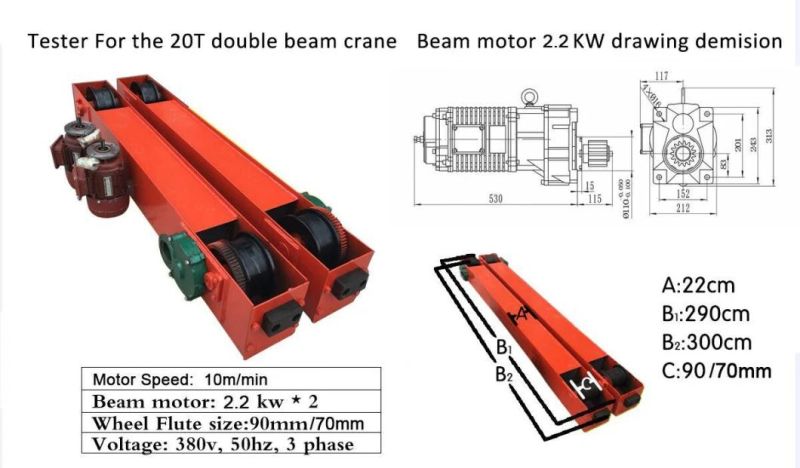

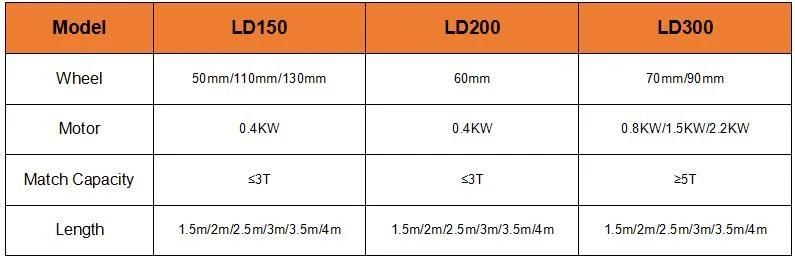

Spec. For overhead traveling crane beam:

Features Of  overhead traveling crane beam:

• optimum travel characteristics
• smooth starting thanks to matching drive solutions
• high operating reliability
• easy assembly and accessibility
• for single and double-girder overhead travelling cranes, suspension cranes and travelling structures.





Using For overhead traveling crane beam:





Main Features:

1.High rigidity

2.Torsionally rigid, enclosed box-section profile (reinforced connection, welded diaphragm plate)

3.Engineering tolerances in the crane girder connection area

4.Optimum travel characteristics thanks to precise travel wheel axle arrangement and exact adjustment of the crane span dimension

5.Low wear

6.Maintenance-free travel drives thanks to anti-friction bearings lubricated for life and travel wheels made of spheroidal-graphite cast iron
