Special Weight Level Free Parts Electric Cherry Picker Towable Boom Lift
Jinan Morn Technology Co., Ltd.- After-sales Service:Free Spare Parts and 24h Online Service
- Warranty:24 Months
- Application:Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane, Tree Care and Maintance
- Lift Mechanism:Articulated Lift
- Carrying Capacity:Special Weight Level
- Moves:Vehicular
Base Info
- Model NO.:ATB0.2-16
- Driven Type:Hydraulic
- Running Mode:Moving
- Feature:Explosion-Proof, Insulating
- Certification:CE, ISO 9001
- Working Height:18 M
- Outreach:11 M
- Load Capacity:200 Kg
- Lifting Power:AC , Battery , Engine , Dual Power
- Moving:by Car or Truck Tow
- Use:Hydraulic Manual Towable Boom Lift Instead of Ladd
- OEM:Lift Height, Traction Drive, Lift Power
- Safety Parts:Manual Down, Double Brake System
- Spare Parts:Oil Ring, Seal Ring, Travel Switch
- Transport Package:Film Packed and Load in One 20FT Container
- Specification:package size 5.4*1.6*1.9m
- Trademark:MORN
- Origin:China
- HS Code:8428909090
- Production Capacity:10 Sets Per Month
Description
Basic Info.
Model NO. ATB0.2-16 Driven Type Hydraulic Running Mode Moving Feature Explosion-Proof, Insulating Certification CE, ISO 9001 Working Height 18 M Outreach 11 M Load Capacity 200 Kg Lifting Power AC / Battery / Engine / Dual Power Moving by Car or Truck Tow Use Hydraulic Manual Towable Boom Lift Instead of Ladd OEM Lift Height, Traction Drive, Lift Power Safety Parts Manual Down, Double Brake System Spare Parts Oil Ring, Seal Ring, Travel Switch Transport Package Film Packed and Load in One 20FT Container Specification package size 5.4*1.6*1.9m Trademark MORN Origin China HS Code 8428909090 Production Capacity 10 Sets Per MonthProduct Description
Basic Parameters:
Item | ATB0.2-16 |
Platform size(mm) | 900*700 |
Rated capacity(kg) | 200 |
Lifting height (m) | 16 m |
Max. work height (m) | 18 m |
Horizontal length(m) | 11 m |
Guardrail height (m) | 1.1 |
Turn around angle(°) | 360 |
Power | AC / DC/ Engine / Dual power optional |
Model List
Model | Platform Size (mm) | Lifting Height (m) | Load Capacity (kg) | Working Radius (m) | Overall Size (mm) | Weight (kg) |
ATB-8 | 900*700 mm | 8 m | 200 kg | 5.5 m | 5200*1680*2100 | 1850 kg |
ATB-10 | 900*700 mm | 10 m | 200 kg | 5.5 m | 5200*1680*2100 | 1850 kg |
ATB-12-1 | 900*700 mm | 12 m | 200 kg | 6.5 m | 6200*1680*2100 | 1950 kg |
ATB-12-2 | 900*700 mm | 12 m | 200 kg | 8 m | 4700*1680*2100 | 2100 kg |
ATB-14 | 900*700 mm | 14 m | 200 kg | 8.5 m | 5700*1680*2100 | 2400 kg |
ATB-16 | 900*700 mm | 16 m | 200 kg | 11 m | 5700*1680*2200 | 2500 kg |
ATB-18 | 900*700 mm | 18 m | 200 kg | 11 m | 6500*1800*2250 | 3800 kg |
MORN China 16m 12m 14m 18m 20m Hydraulic towable telescopic electric boom man lift cherry picker lift spider platform lift

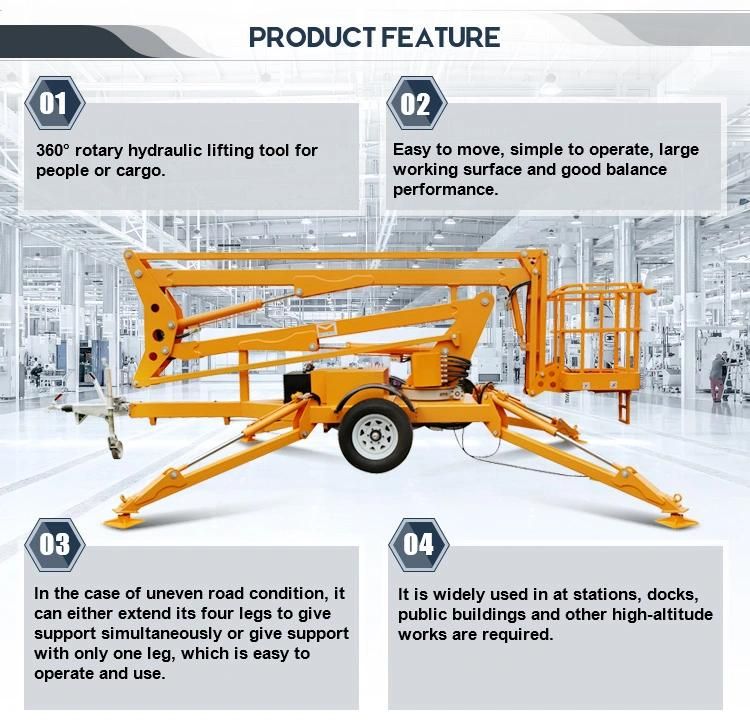

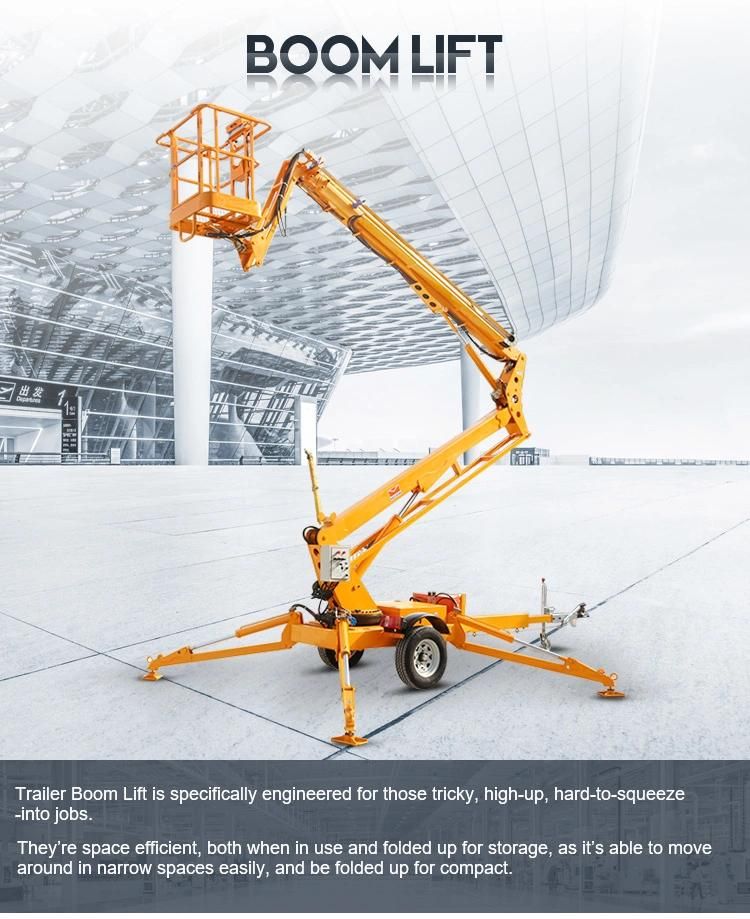

Trailer Boom Lift is specifically engineered for those tricky, high-up, hard-to-squeeze-into jobs.
They're space efficient, both when in use and folded up for storage, as it's able to move around in narrow spaces easily, and be folded up for compact storage.

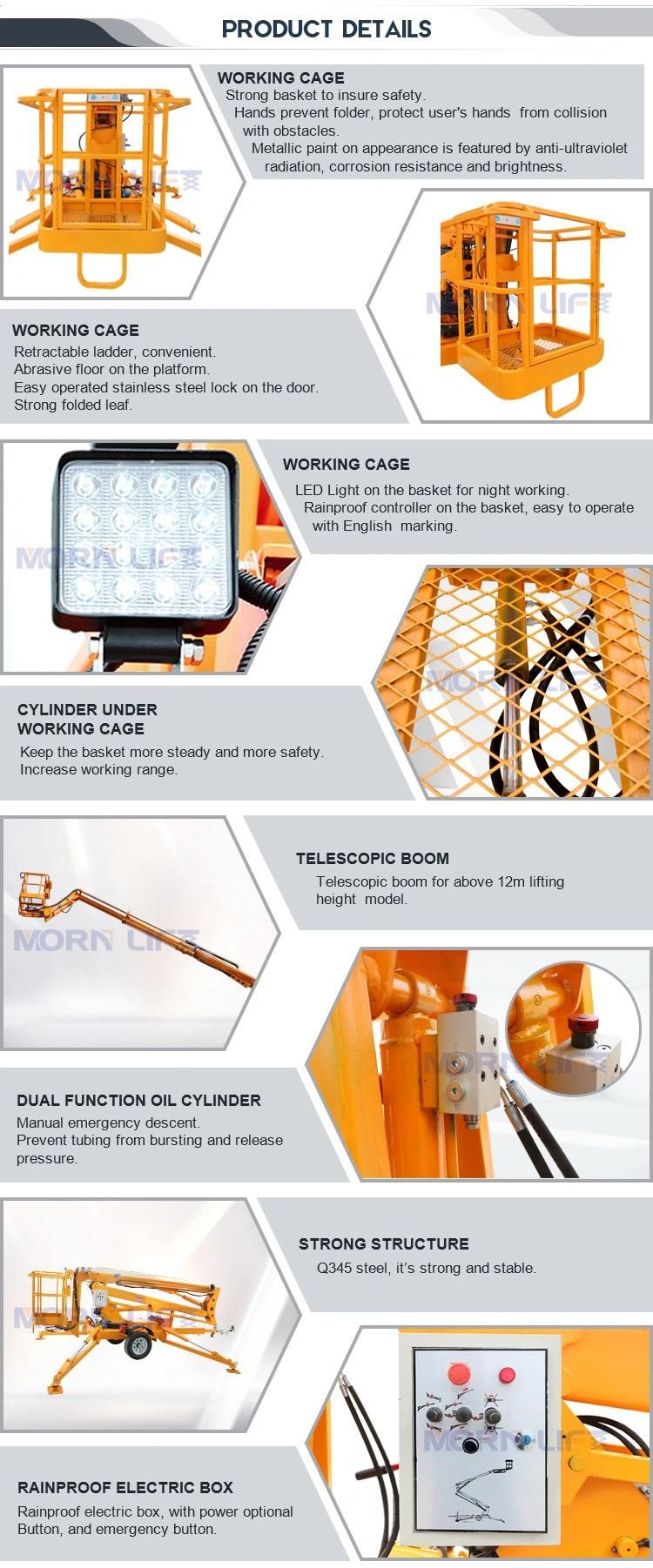

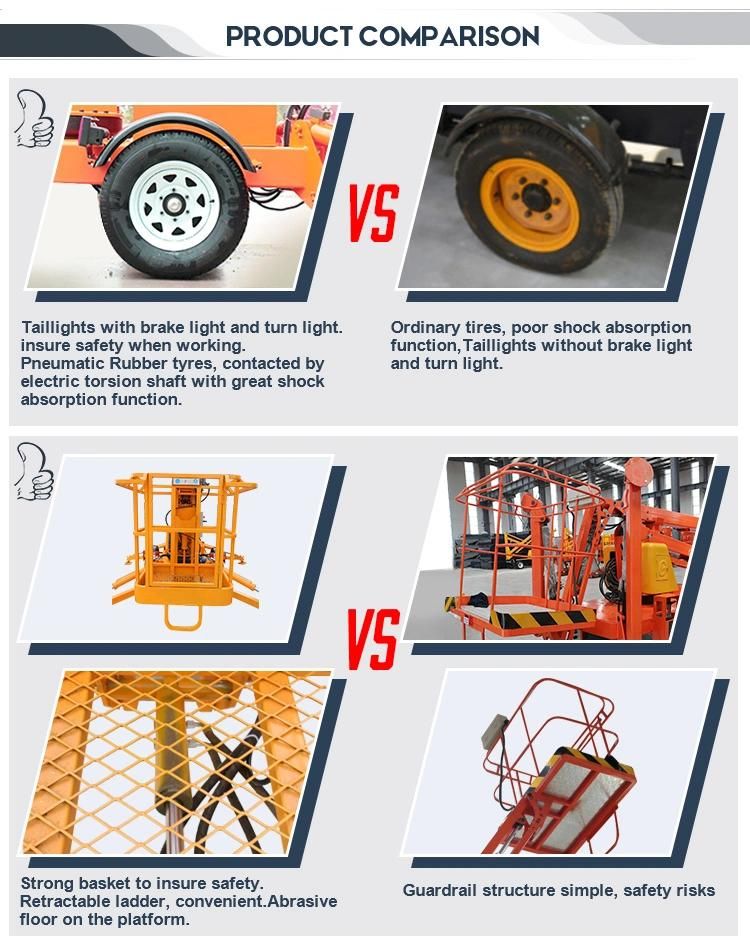

1, WORKING CAGE
Strong basket to insure safety.
Hands prevent folder, protect user's hands from collision with obstacles.
Metallic paint on appearance is featured by anti-ultraviolet radiation, corrosion resistance and brightness.
2, KEY PARTS WORKING CAGE
Retractable ladder, convenient.
Abrasive floor on the platform.
Easy operated stainless steel lock on the door.
Strong folded leaf.
3, KEY PARTS WORKING CAGE
LED Light on the basket for night working.
Rainproof controller on the basket, easy to operate with English marking.
4, CYLINDER UNDER WORKING CAGE
Keep the basket more steady and more safety.
Increase working range.

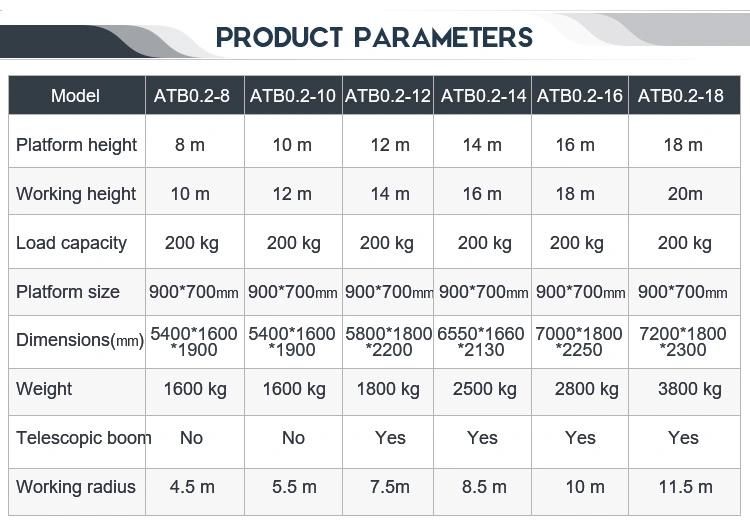

Model | ATB0.2-8 | ATB0.2-10 | ATB0.2-12 | ATB0.2-14 | ATB0.2-16 | ATB0.2-18 |
Platform height | 8 m | 10 m | 12 m | 14 m | 16 m | 18 m |
Working height | 10 m | 12 m | 14 m | 16 m | 18 m | 20 m |
Load capacity | 200 kg | 200 kg | 200 kg | 200 kg | 200 kg | 200 kg |
Platform size | 900*700 mm | 900*700 mm | 900*700 mm | 900*700 mm | 900*700 mm | 900*700 mm |
Dimensions(mm) | 5400*1600*1900 | 5400*1600*1900 | 5800*1800*2200 | 6550*1660*2130 | 7000*1800*2250 | 7200*1800*2300 |
Weight | 1600 kg | 1600 kg | 1800 kg | 2500 kg | 2800 kg | 3800 kg |
Working radius | 4.5 m | 4.5 m | 7 m | 7 m | 8 m | 8 m |
Wind level | <=5 | <=5 | <=5 | <=5 | <=5 | <=5 |
Units for 40GP | 3 units | 3 units | 3 units | 3 units | 2 units | 1 units |
