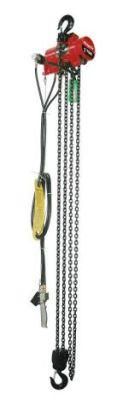

High Quality Air Chain Hoist with 1000. Lb Capability (29HX87)
XIAMEN XINLISHENG IMPORT AND EXPORT CO.,LTD- Application：Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
- Type：Air Hoist
- Sling Type：Chain
- Lift Speed：0 to 45FPM
- Maximum Lifting Height：20 Feet
- Chain Falls：1
Base Info
- Model NO.：29HX87
- Certification：CE
- Condition：New
- Color：Red
- Item：Air Chain Hoists
- Capacity：1000lb.
- Min Between Hooks (in.)：15 1,4
- Housing L (in.)：12 1,8
- Housing W (in.)：10 3,16
- Chain Material：Steel Alloy
- Spur Gears Material：Heat-Treated Alloy Steel
- Connection Type：1,2" NPT Hose Connection
- Transport Package：Plywood Case
- Origin：Shanghai
- HS Code：8425110000
- Production Capacity：500000PCS,Year
Description
Operate on 48 cfm at 90 psi1/2" NPT hose connection Shoe-type brake Upper and lower limit stops Steel alloy load chain Heat-treated alloy steel spur gears Pendant throttle allows 1-handed control.Aluminum frames and cover.Top and bottom latch hooks swivel 360.8-vane motor has tapped exhaust port. Note: Air line lubricator required. Air Chain Hoists Item No. 29HX85 29HX90 29HX86 29HX87 29HX88 29HX89 Cap.
(lb.) 500 500 1000 1000 2000 2000 Lift
(ft.) 10 20 10 20 10 20 Lift Speed
(fpm) 0 to 65 0 to 65 0 to 45 0 to 45 0 to 23 0 to 23 Min Between Hooks (in.) 15 1/4 15 1/4 15 1/4 15 1/4 18 18 Reeving 1 1 1 1 2 2 Housing L
(in.) 12 1/8 12 1/8 12 1/8 12 1/8 12 1/8 12 1/8 Housing W
(in.) 10 3/16 10 3/16 10 3/16 10 3/16 10 3/16 10 3/16
Warning! Hoists are industrial dute units and are not to be used for lifting,supporting,or transporting people.
