Dual Mast Aluminium Platform Self Propelled Platform for RV

Qingdao Sinofirst Machinery Co., Ltd.
  • After-sales Service：Free Spare Parts Replacement Within 1 Year
  • Warranty：1 Year
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane, Decoration
  • Lift Mechanism：Lift Chain
  • Carrying Capacity：Light Level
  • Moves：Moving

Base Info

  • Driven Type：DC
  • Running Mode：Moving
  • Feature：Explosion-Proof, Insulating, Spillover Valve
  • Certification：GS, CE, ISO 9001
  • Max Platform Height：7.5m, 9m
  • Load Capacity：200kg, 150kg
  • Platform Size：1000*650mm
  • Power：AC(Without Battery) or DC(with Battery)
  • Lifting Motor：0.75kw
  • Charge：24V,10A
  • Battery：2*12V,100ah
  • Quanlity Warranty：12month
  • Lead Time：15-20days
  • Name：Man Lift Table Platform
  • Material：Aluminum Alloy
  • Emergency Lowering Device ：Yes
  • Emergency Stop Buttons：Yes
  • Net Weight：1270kg, 1345kg
  • Transport Package：High Quality Seaworthy Package
  • Specification：CE, ISO, SGS
  • Trademark：SAGAFIRST
  • Origin：China
  • HS Code：8428909090
  • Production Capacity：10000

Description

24VDC/1.3KWNet weightkg12701345Charger 24V/15A24V/15V

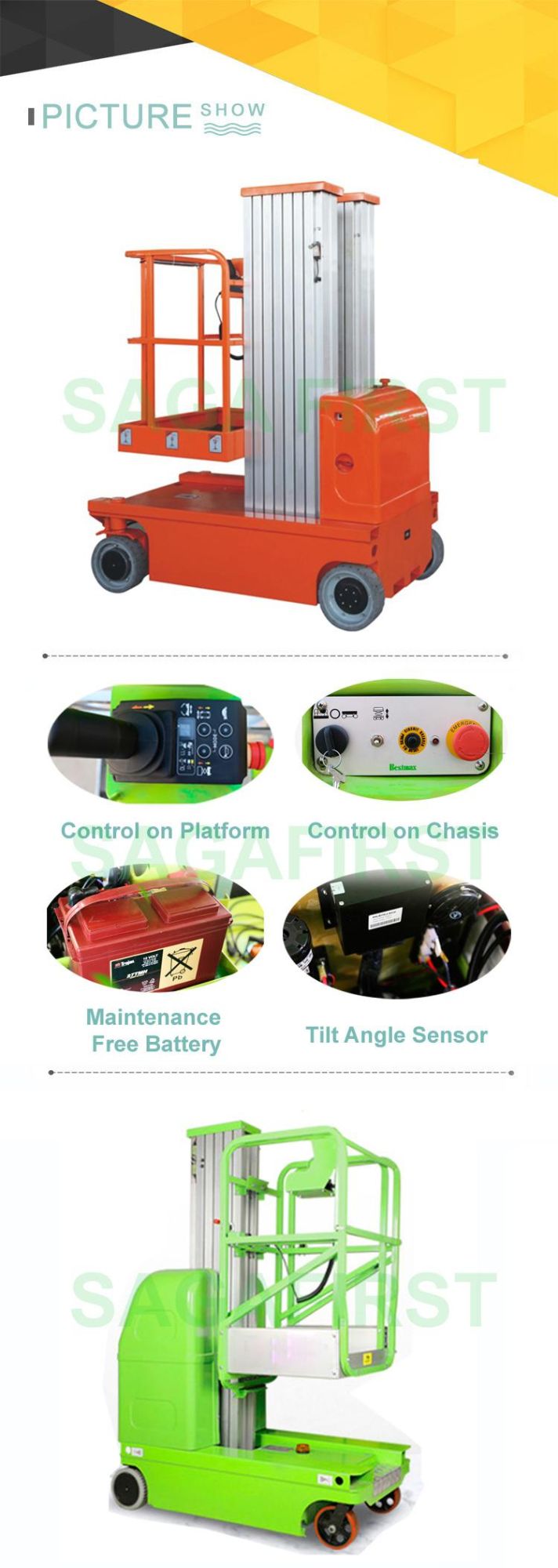

Pictures for view:
Dual Mast Aluminium Platform Self Propelled Platform for RVDual Mast Aluminium Platform Self Propelled Platform for RV

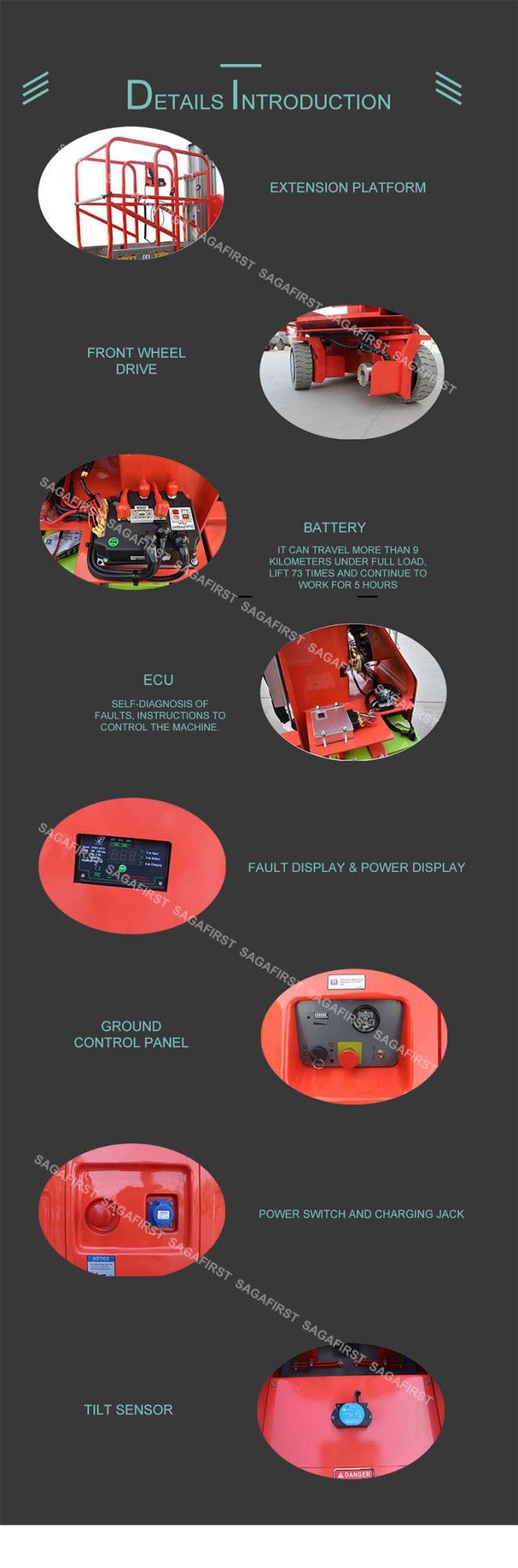

Introduction:
·The walking motor consists of 2 built-in front-wheel motors, a lifting motor of 1.3KW, an operating voltage of 24VDC, a charging voltage of 220VAC, and two 100AH batteries on board the vehicle.

·Two high-elastic rubber gray tires, front and rear, with a diameter of 305mm and a width of 100mm.

·The telescopic guardrail can extend 480mm longitudinally.

·Hydraulically controlled front wheel steering, front wheel electric drive, power 0.5KW*2

·It has the function of detecting load, which can not be raised beyond the rated load and has a light warning (this function is automatically closed after the platform is lifted by 200 or 400mm)

·Organic machine tilt sensing function: After the platform rises to 2 meters, when the ground tilt is greater than 2 degrees, the sensor sends a signal, and it can only be lowered at this time. When the platform height drops below 2 meters, other functions are restored.

·Pothole protection function: The pothole protection has a sensor switch. When the pothole protection is not fully opened, the platform will automatically stop when it rises to a height of 2 meters and cannot be raised.

·After the platform is lifted and lowered to a height of 2 meters, it will stop by itself. You need to release the handle to re-operate to descend. This is an anti-pinch hand

·Set buzzer, strobe light, horn, emergency drop cable, waterproof charging plug

Our Service:

1.We can design the customerized aerial aluminum lift platform as per your requirement.

2.The most suitable model will be recommended to you once we know about your requirement.

3.Shipment can be arranged from our port to your destination port.

4.Operation video can be sent to you if needed.

5.Maintenance video will be given once the aerial aluminum lift platform break down to help you repair.

6.Parts of aerial aluminum lift platform can be sent to you by express within 7 days if needed.


Certificate:ISO and CE
