• Model NO.：SPS12
• Driven Type：Hydraulic
• Running Mode：Moving
• Feature：Explosion-Proof
• Certification：GS, CE, RoHS, ISO 9001
• Working Height：14m
• Lifting Height：12m
• Platform Size：2260*1130mm
• Extend Platfrom：900mm
• Load Capacity：320 Kg
• Extend Platform Load：120kg
• Guard Rail：1100mm
• Overall Length：2485mm
• Width：1150mm
• Turn Radius：0,2.2m
• Moving Speed：3.2km,H
• Grade Ability：25%
• Weight：2580kg
• Lifting Motor：4*12,150V,Ah
• Charger：24,20-30V,a
• Transport Package：Plywood Case or Nude Packing
• Specification：CE
• Trademark：MORN
• Origin：China
• HS Code：84289090
• Production Capacity：400 Months Per Month

Basic Info.

Model NO. SPS12 Driven Type Hydraulic Running Mode Moving Feature Explosion-Proof Certification GS, CE, RoHS, ISO 9001 Working Height 14m Lifting Height 12m Platform Size 2260*1130mm Extend Platfrom 900mm Load Capacity 320 Kg Extend Platform Load 120kg Guard Rail 1100mm Overall Length 2485mm Width 1150mm Turn Radius 0/2.2m Moving Speed 3.2km/H Grade Ability 25% Weight 2580kg Lifting Motor 4*12/150V/Ah Charger 24/20-30V/a Transport Package Plywood Case or Nude Packing Specification CE Trademark MORN Origin China HS Code 84289090 Production Capacity 400 Months Per Month

Product Description

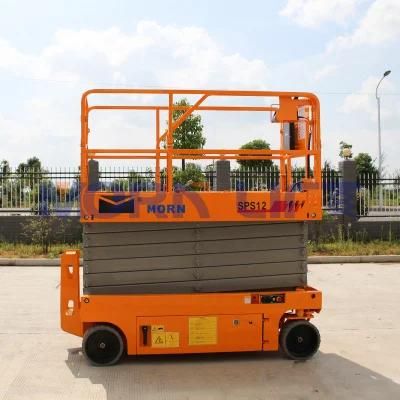

MORN China 12m 6m 8m 10m 14m hydraulic mobile scissor aerial lift/lifting work/working light platform

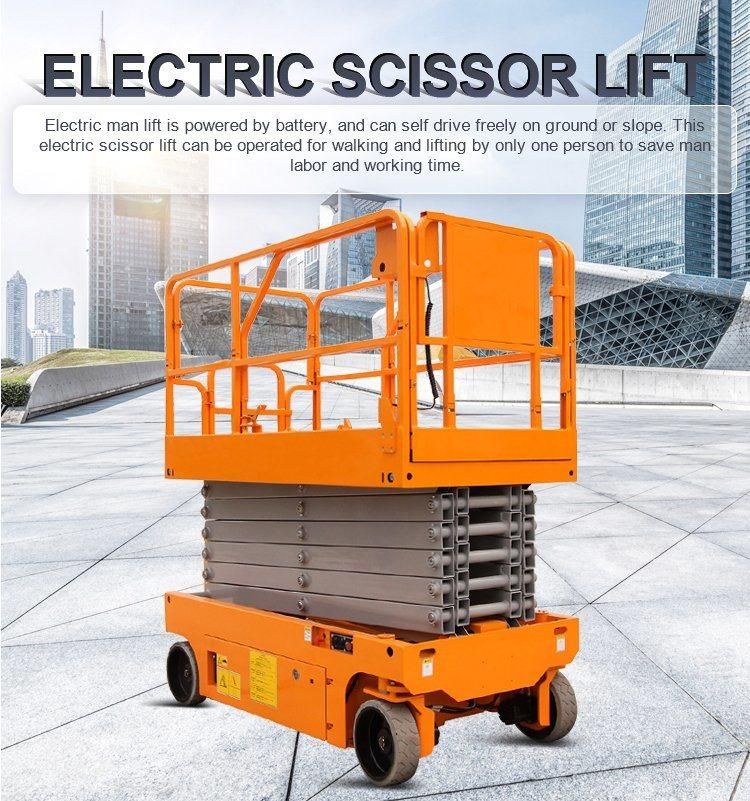

With the advantage of energy saving,low noise and environmental working and easy & flexible operation, electrical scissors are widely used in the indoor environment like workshops , warehouses, hotel,etc. Quiet and Convenient Devices Compact Structure Larger Working Space Swing-out Tray.

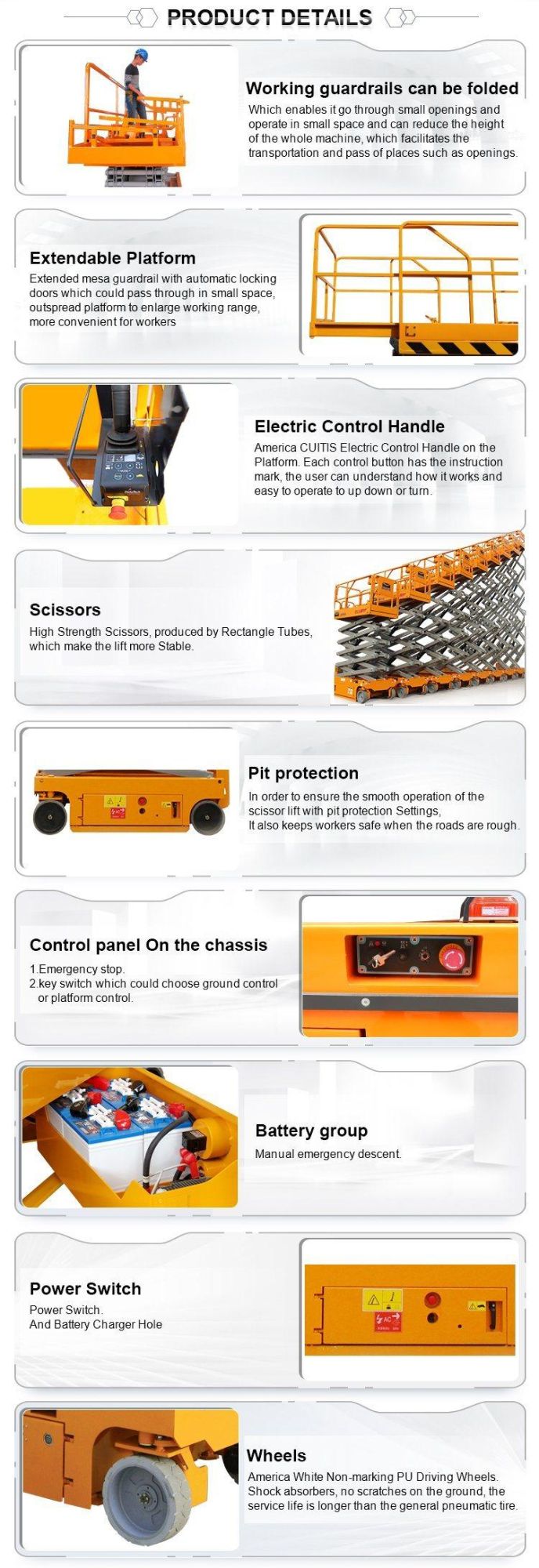

1, Extendable Platform
Extended mesa guardrail with automatic locking doors which could pass through in small space, outspread platform to enlarge working range, more convenient for workers
2, Working guardrails can be folded
Which enables it go through small openings and operate in small space and can reduce the height of the whole machine, which facilitates the transportation and pass of places such as openings.
3, Electric Control Handle
America CUITIS Electric Control Handle on the Platform. Each control button has the instruction mark, the user can understand how it works and easy to operate to up down or turn.
4, Scissors
High Strength Scissors, produced by Rectangle Tubes, which make the lift more
Stable.
5, Pit protection
In order to ensure the smooth operation of the scissor lift with pit protection Settings,
It also keeps workers safe when the roads are rough.
6, Control panel on the chassis
1.Emergency stop
2.key switch which could choose ground control or platform control
7, Battery group
America TORJAN Battery Group and Shanghai SHINENG Intelligent Charger
8, Power Switch
Power Switch.
And Battery Charger Hole

Model	SPS-6	SPS-8	SPS-10	SPS-12	SPS-14
Lifting Height	5.8 m	8 m	10m	11.8 m	13.8 m
Working Height	7.8 m	10m	12m	13.8m	15.8m
Lifting capacity	230/113 kg	450/113kg	320/113kg	320/113kg	227/1130kg
Height(Stowed)	1.84m	1.836m	1.964m	2.094m	2.058m
Platform Height minimum	1.08m	1.186m	1.314m	1.442m	1.49m
Overall Length	1.86m	2.475m	2.475m	2.475m	2.84m
Width	0.76m	1.15m	1.15m	1.15m	1.39m
Platform size	1.67*0.74m	2.26*1.13m	2.26*1.13m	2.26*1.13m	2.64*1.13m
Length extension deck	0.9m	0.9m	0.9m	0.9m	0.9m
Turning radius Minimum	0/1.7m	0/2.2m	0/2.2m	0/2.2m	0/3m
Travel speed(stowed)	3.2km/h	3.2km/h	3.2km/h	3.2km/h	3.2km/h
Travel speed(raised)	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h
Maximum allowable working angle	1.5°/3°	2°/3°	2°/3°	1.5°/3°	1.5°/3°
Grade ability	14°(25%)	14°(25%)	14°(25%)	14°(25%)	14°(25%)
Tire	Φ305*100mm	Φ381*127mm	Φ381*127mm	Φ381*127mm	Φ381*127mm
Wight	1435kg	2190kg	2430kg	2960kg	3320kg
Lift Motor	24/3V/KW	24/3V/KW	24/4.5V/KW	24/4.5V/KW	24/4.5V/KW
Battery	4*6/225V/Ah	4*6/216V/Ah	4*12/150V/Ah	4*12/150V/Ah	4*6/251V/Ah
Charge	24/30V/A	24/30V/A	24/30V/A	24/30V/A	24/30V/A
