• Model NO.：MDR-10
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Self-Weight：2800kg
• Loading Capacity：10000kg
• Power：0.75kw or Manual
• Min. Height：1.0m
• Max. Height：1.8m
• Color：Blue or Yellow, Black or as Customer′s Demand
• Adjusting：Manual
• Moving Mode：Pulled
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Product Name：Container Ramp
• Transport Package：40FT Container
• Specification：11.2*2*1.4m
• Trademark：MORN LIFT
• Origin：Shandong, Jinan
• HS Code：8479899990
• Production Capacity：100 Units Per Month

ModelMDR-10Capacity10000kgLip size0.4*2.0m(L*W)Level plate size2.465*2.0m (L*W)Inclined ramp size9.0*2.0m(L*W)Lead board size1.0*2.0m(L*W)Adjustable height1.0-1.8m(L*W)PowerManualOverall size11.2*2*1.4m(L*W*H)Weight2800kg

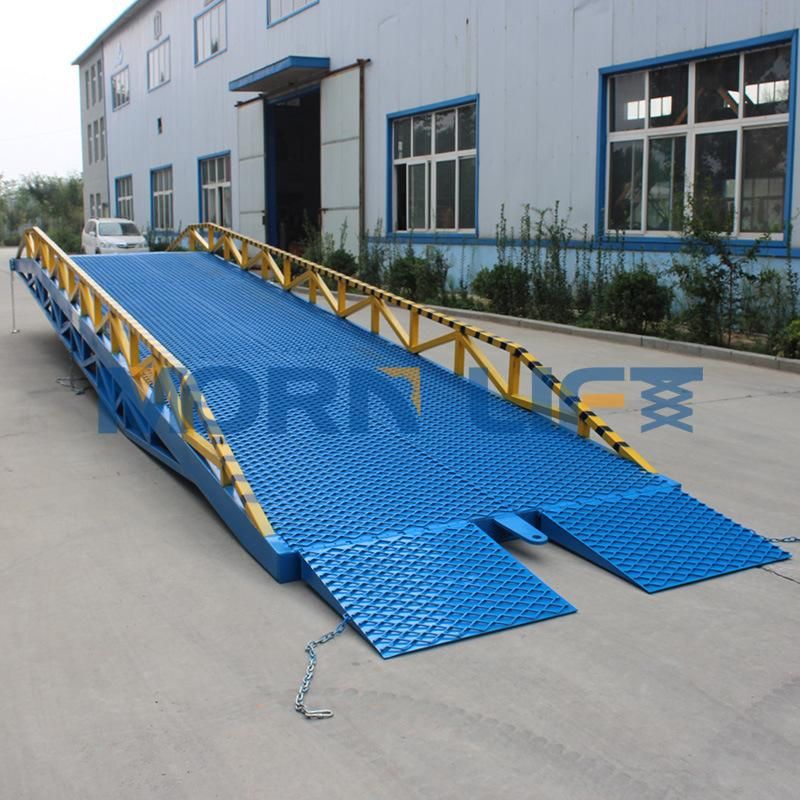

Yard ramp detailed parts are showing in the below photo.
Besides the strong performance ramp frame, we designed the truss structure guardrails for stress disperse. By the way, electric control for this mobile dock ramp is also optional for your choice.

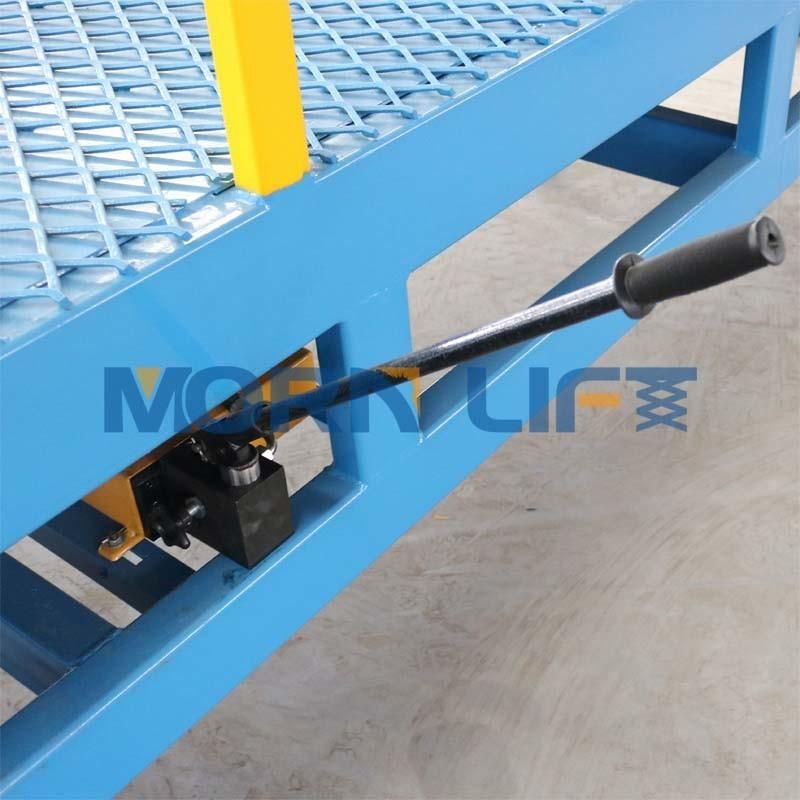

Adjusting bar
It's one hydraulic pump handle, to adjust the height of the loading ramp. One worker can easily lift up the ramp up to the bottom surface of container or truck.  DC power is optional.

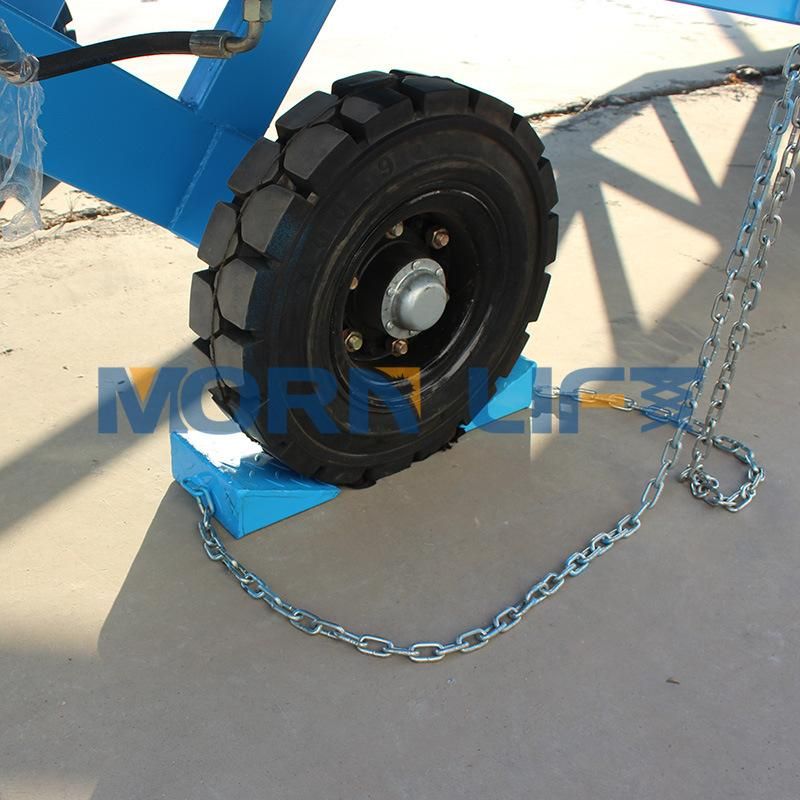

Wheel block
To stabilize the wheels in case the ramp begins to move while working. Guaranteed forklift and worker move safely on the ramp.

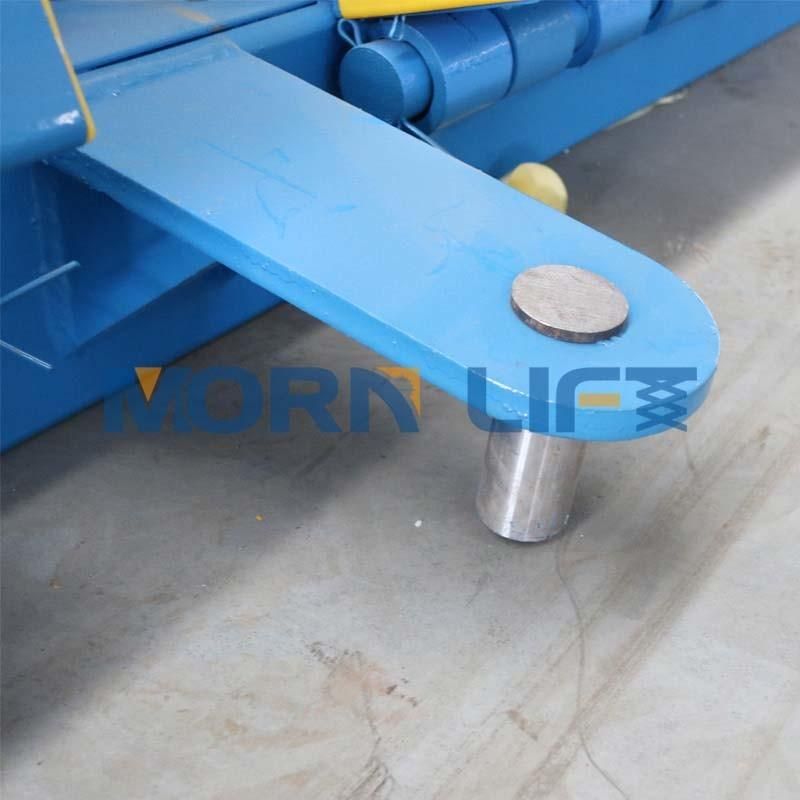

Traction device
It joints truck or trailer to move ramp to different workplaces, convenient and flexible.

Operation process
1. Fasten the return valve and press the handle to move the ramp over the truck soleplate. Unfold the landing legs to working height.
2. Drive the car under the plate.
3. Release the return valve, and the ramp will fall down onto the afterbody of the truck, then fasten the ramp and the truck with the chain.  The hydraulic system and the tires of the ramp do not carry the weight.
4. Operating starts.
5.When the operation finishes, untie the fixing chains. Lifting the ramp by the handle stick, and then drive out the truck.
6. Uplifting the afterbody of the ramp to move around hang on the truck.
