• Model NO.：MG900-2S
• Driven Type：Hydraulic
• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：CE, ISO 9001
• Platform Height：9m
• Working Height：11m
• Loading Capacity：150kg
• Platform Size：1.00*0.70m
• Gradeability：25%
• Driving Motor：2*24V,0.5kw
• Lifting Motor：24V,2kw
• Power Source：2*12V,115ah
• Charger：24V,12A
• Weight：1345kg
• Transport Package：PVC Film Wrapped in Pallet
• Specification：1.55*1.00*2.08m
• Trademark：CHEN LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：3000 Units Per Year

Basic Info.

Model NO. MG900-2S Driven Type Hydraulic Running Mode Moving Feature Explosion-Proof, Insulating Certification CE, ISO 9001 Platform Height 9m Working Height 11m Loading Capacity 150kg Platform Size 1.00*0.70m Gradeability 25% Driving Motor 2*24V/0.5kw Lifting Motor 24V/2kw Power Source 2*12V/115ah Charger 24V/12A Weight 1345kg Transport Package PVC Film Wrapped in Pallet Specification 1.55*1.00*2.08m Trademark CHEN LIFT Origin China HS Code 8428909090 Production Capacity 3000 Units Per Year

Product Description

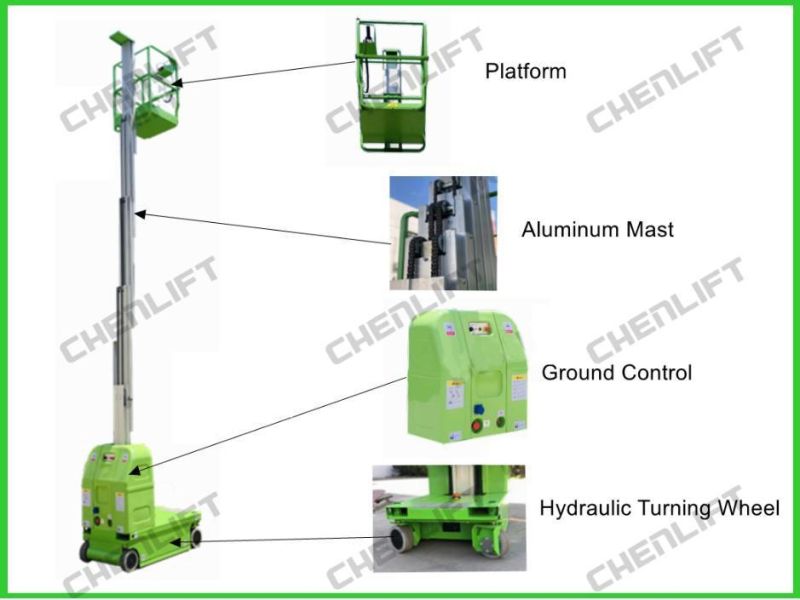

Self-Propelled Aluminum Aerial Work Platform with Hydraulic Turning Wheels
Self-Propelled Economical Vertical Lift is light and exquisite, convenient and flexible. It can pass through the general foyer, can enter and exit the elevator at will, save energy and electricity, and work without hurting the ground. It can be used for wall-mounted work and exploration work, and is widely used in hotels, hospitals, stations, airports, warehouses and other occasions.
Safe and reliable operation performance, the base pothole protection device gives you a hundred times peace of mind.

Specification:
Swivel Turning Type

Model	MG600-1	MG750-1	MG750-2	MG900-2
Lift Capacity	125Kg	125Kg	200Kg	150Kg
Platform Height Max	6m	7.5m	7.5m	9m
Stowed Length	1.36m	1.36m	1.5m	1.5m
Stowed Width	0.79m	0.79m	1.0m	1.0m
Stowed Height	1.98m	1.98m	1.99m	1.99m
Platform Size	0.78*0.70m	0.78*0.70m	1.00m*0.70m	1.00m*0.70m
Ground Clearance	0.05m	0.05m	0.05m	0.05m
Wheelbase	1.15m	1.15m	1.28m	1.28m
Gradeability	25%	25%	25%	25%
Maximum Working Slope	1.5°	1.5°	1.5°	1.5°
Driving Wheel	0.23*0.08m	0.23*0.08m	0.25*0.08m	0.25*0.08m
Front Tire	8in	8in	8in	8in
Driving Motor	0.4Kw	0.4Kw	0.5Kw	0.5Kw
Lifting Motor	2Kw	2Kw	2Kw	2Kw
Power Source	2*12V/120Ah	2*12V/120Ah	2*12V/120Ah	2*12V/120Ah
Charger	24V/12A	24V/12A	24V/12A	24V/12A
Weight	850Kg	880Kg	1100Kg	1250Kg

Hydraulic Turning Type

Model	MG600-1S	MG750-1S	MG750-2S	MG900-2S
Lift Capacity	125Kg	125Kg	200Kg	150Kg
Platform Height Max	6m	7.5m	7.5m	9m
Stowed Length	1.44m	1.44m	1.55m	1.55m
Stowed Width	0.82m	0.82m	1.0m	1.0m
Stowed Height	2.09m	2.09m	2.09m	2.09m
Platform Size	0.78*0.70m	0.78*0.70m	1.00m*0.70m	1.00m*0.70m
Ground Clearance	0.05m	0.05m	0.05m	0.05m
Wheelbase	1.15m	1.15m	1.28m	1.28m
Gradeability	25%	25%	25%	25%
Maximum Working Slope	1.5°	1.5°	1.5°	1.5°
Driving Wheel	0.23*0.08m	0.23*0.08m	0.305*0.1m	0.305*0.1m
Front Tire	8in	8in	8in	8in
Driving Motor	0.8Kw	0.8Kw	0.8Kw	0.8Kw
Lifting Motor	2Kw	2Kw	2Kw	2Kw
Power Source	2*12V/105Ah	2*12V/105Ah	2*12V/105Ah	2*12V/105Ah
Charger	24V/15A	24V/15A	24V/15A	24V/15A
Weight	1100Kg	1200Kg	1350Kg	1500Kg

Details:
Swivel Turning Type
Hydraulic Turning Type

Standard Configuration for Self-Propelled Economical Vertical Lift
1. Proportional controls
2. DC power supply
3. Drivable at full height
4. Beacon
5. Non marking tyre
6. 2WD
7. Automatic braking system
8. Anti burst valve on cylinder
9. Emergency stop button
10. Auxiliary lowering
11. On board Diagnostic system
12. Tilt sensor with alarm
13. Forklift pockets
14. Charger protection
15. All motion alarm
16. Horn
17. Double wheel brake
18. Hydraulic braking release
19. Anti-dust cover on the mast
20. Powder coating painting


Optional Configuration for Self-Propelled Economical Vertical Lift
1. AC power to platform
2. Overload sensor with alarm
3. Platform working light
4. Air tube to the platform
5. Platform extension
6. Self -lock gate on platform(Hinge type top open door)
7. Hour meter
8. Machine Body cover
9. Wireless tracking

Company Introduction
Chenlift (Suzhou) Machinery Co Ltd. is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.


Certificates


Factory Equipment


Customer Visiting

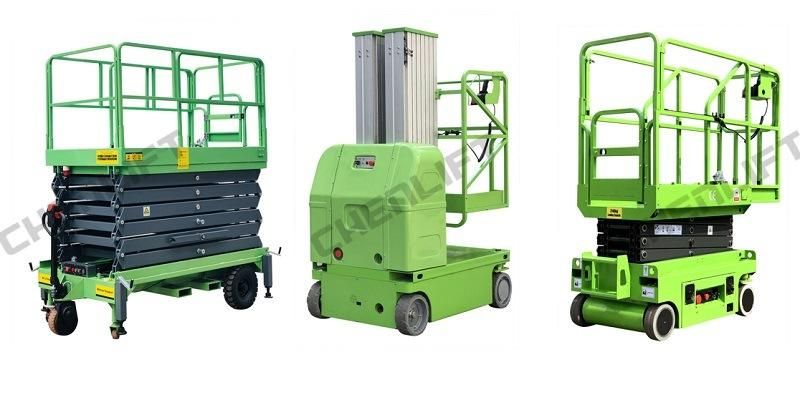

Other Related Products
