• Model NO.：TS0.5-6
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Leg：Manual Supporting Legs
• Paint：Epoxy Paint
• Tyre：Four Solid Tyres
• Platform：Anti-Skid
• Power Source：AC, DC or Diesel
• Color：Blue or Yellow
• Move：Trailing
• Transport Package：Stretch Film & Veneer Cases
• Specification：2250*950*1200mm
• Trademark：MORN
• Origin：Shandong
• HS Code：842890
• Production Capacity：50,Month

Basic Info.

Model NO. TS0.5-6 Feature Explosion-Proof Certification CE, ISO 9001 Leg Manual Supporting Legs Paint Epoxy Paint Tyre Four Solid Tyres Platform Anti-Skid Power Source AC, DC or Diesel Color Blue or Yellow Move Trailing Transport Package Stretch Film & Veneer Cases Specification 2250*950*1200mm Trademark MORN Origin Shandong HS Code 842890 Production Capacity 50/Month

Product Description

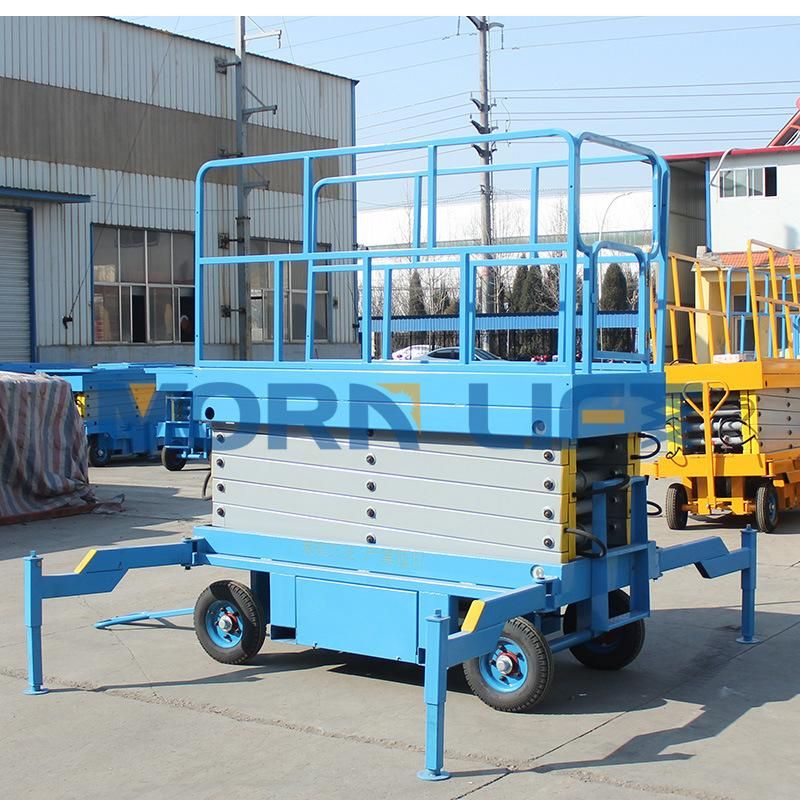

Mobile scissor lift  is a scissor structure man lift for aerial work which can be towed by man power.

It is widely used in equipment installation and maintenance, construction sites, workshops, warehouses, granaries, car/train stations, hotels, airports, gas stations, and overhead pipelines.



Detailed Images



supporting legs.

Four legs, keep the machine balanced and keep the workers safe during the operation

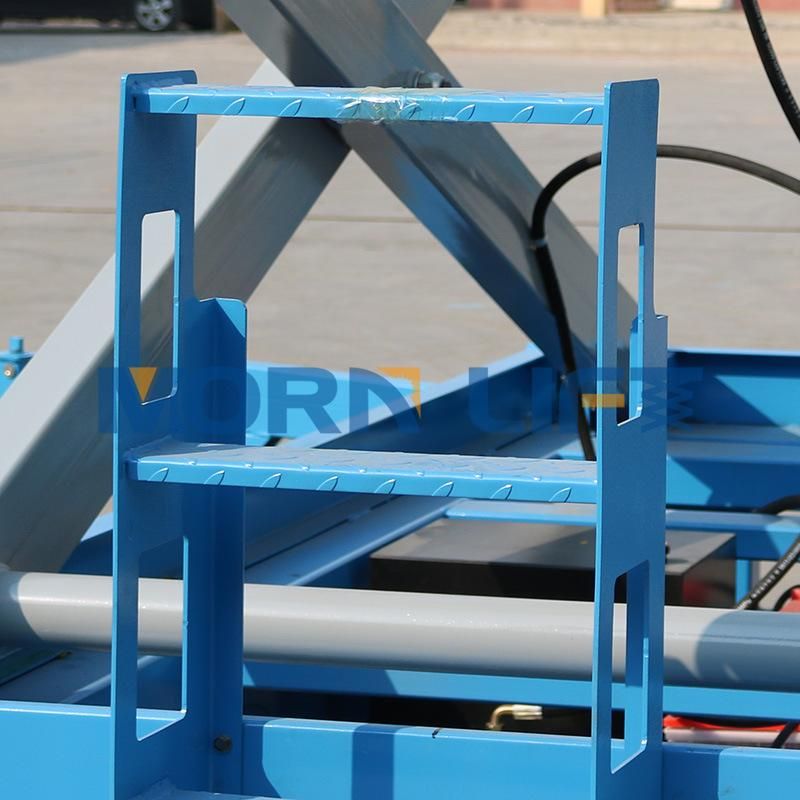

Boarding ladder:
The Boarding ladder make it easier for workers to climb from the ground to the platform.


the balance sensor.
Judge the balance of the lift and ensure the safety of the workers.

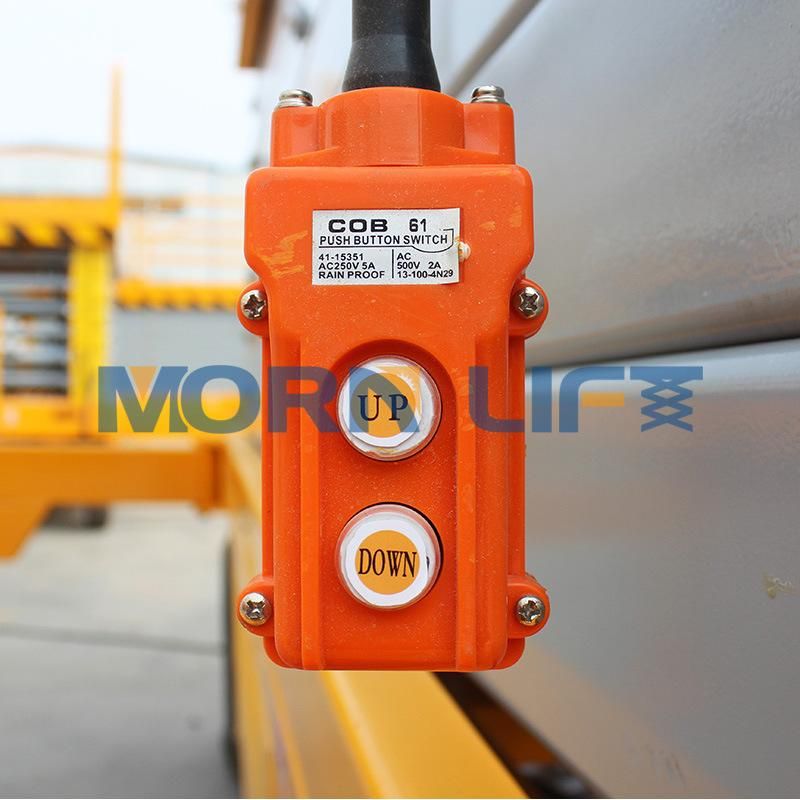

Control Panel .
Both ground and platform equipped with control panel to offer most convenient operation.


Trailing Bar
Trailing bar to lead the direction of movement. Operaton is very simple


Packing & Delivery

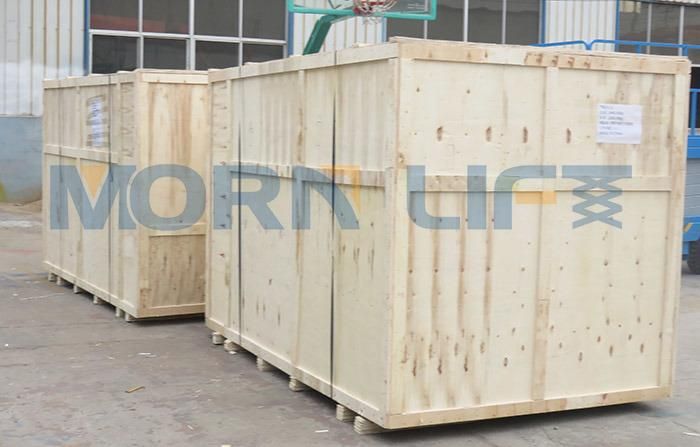

Veneer cases.
Protect the lift from damage during shipping

Model

Model	Capacity	platform height	max working height	platform size	Demension	Total weight
TS0.5-4	500kg	4m	6m	2100*830mm	2250*950*1100mm	800kg
TS0.5-6	500kg	6m	8m	2100*830mm	2250*950*1200mm	880kg
TS0.5-7	500kg	7m	9m	2100*830mm	2250*950*1280mm	970kg
TS0.5-8	500kg	8m	10m	2100*930mm	2250*1060*1380mm	1050kg
TS0.5-9	500kg	9m	11m	2100*930mm	2250*1060*1500mm	1165kg
TS0.5-10	500kg	10m	12m	2100*1230mm	2250*1350*1530mm	1360kg
TS0.5-11	500kg	11m	13m	2100*1230mm	2250*1350*1650mm	1400kg
TS0.5-12	500kg	12m	14m	2550*1530mm	2796*1670*1750mm	2260kg
TS0.5-14	500kg	14m	16m	2812*1530mm	3067*1730*1810mm	2400kg
TS0.5-16	500kg	16m	18m	2812*1600mm	3067*1810*2080mm	3500kg
TS0.5-18	500kg	18m	20m	3070*1600mm	3321*1810*2080mm	3900kg
