3ton 100 500 Ton Double Acting Hydraulic Lift Electric Jack Cylinder
Shanghai Yiying Crane Machinery Co., Ltd.- Type：Hydraulic Cylinder Jack
- Structure：Hydraulic Cylinder Jack
- Capacity (Load)：10ton-100ton
- Power Source：Hydraulic
- Max Height：351-400mm
- Certification：CE
Base Info
- Condition：New
- Material：Carbon Steel
- Cylinder Capacity：10-100ton
- Cylinder Effective Area：6, 5-198, 1cm2
- Oil Capacity：4-317cm3
- Collapsed Height(a)：32-100mm
- Extended Height(B)：38-116mm
- Weight：1-26.3kg
- Transport Package：Carton
- Specification：FCY
- Trademark：hugo
- Origin：China
- HS Code：8425421000
- Production Capacity：5000pieces,Month
Description

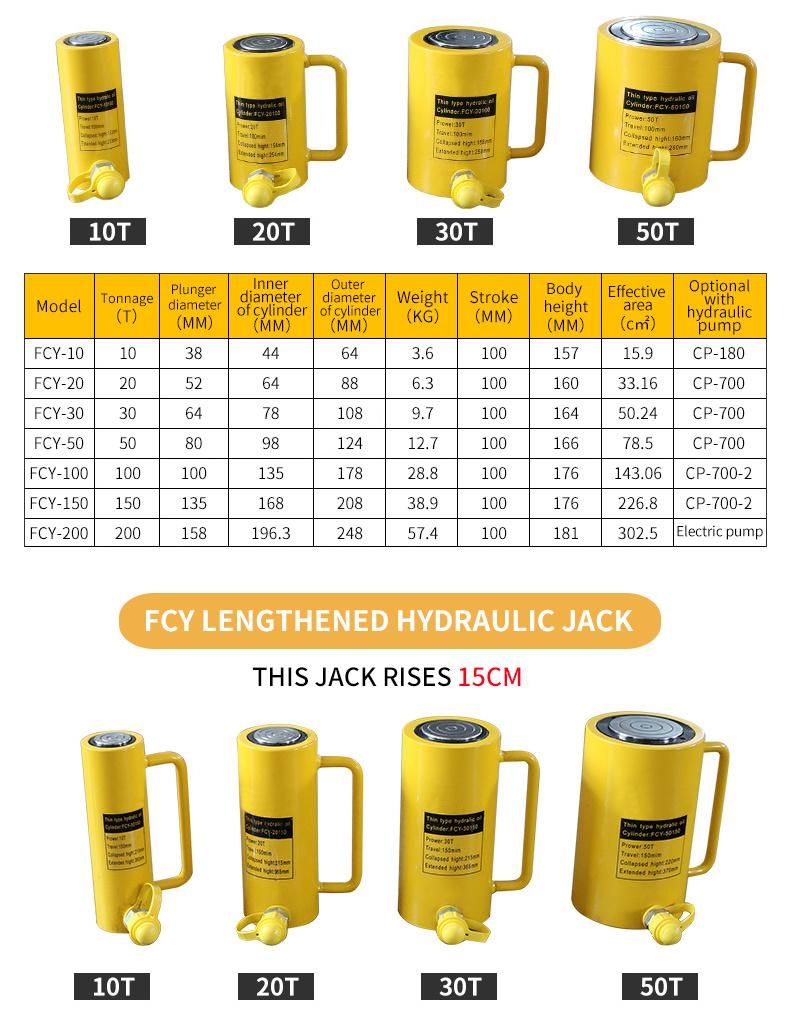

Model
Tonnage
(T)
Stroke
(mm)
Oil capacity
(cc)
Matching pump
Closed height
(mm)
G.W.
(kg)
FCY-1050
10
50
72
HHB-700C
97
2.5
FCY-10100
10
100
145
HHB-700C
147
4.5
FCY-10150
10
150
217
HHB-700C
226
5.8
FCY-2050
20
50
141
HHB-700C
105
5
FCY-20100
20
100
282
HHB-700
165
7.5
FCY-20150
20
150
423
HHB-700
230
9.8
FCY-3050
30
50
210
HHB-700C
108
5.5
FCY-30100
30
100
418
HHB-700
167
9
FCY-30150
30
150
627
HHB-700A
233
11.7
FCY-5050
50
50
318
HHB-700
113
9
FCY-50100
50
100
635
HHB-700A
173
13
FCY-50150
50
150
953
HHB-700A
243
18
FCY-10050
100
50
623
HHB-700
136
19
FCY-100100
100
100
1246
HHB-700A
232
34
FCY-100150
100
150
1869
HHB-700A
282
40.5
