• Model NO.：UVL-700-S
• Certification：CE, ISO 9001
• Motor Power：0.8kw
• Pressure：2500psi
• Voltage：12V,24V
• Max. up/Down Stroke：430mm,540mm
• Len & Width of Platform：751mm*1220mm
• Length Required to Install Liftt：1867mm
• Height of Lift Front/Rear End：167mm,133mm
• Cylinder Diameter&Stroke：60X70 Unidirectional Operation
• Transport Package：Plywood Case
• Specification：CE
• Trademark：Xinder
• Origin：Changzhou Jiangsu China
• HS Code：8428909090
• Production Capacity：500 Sets Per Month

Basic Info.

Model NO. UVL-700-S Certification CE, ISO 9001 Motor Power 0.8kw Pressure 2500psi Voltage 12V/24V Max. up/Down Stroke 430mm/540mm Len & Width of Platform 751mm*1220mm Length Required to Install Liftt 1867mm Height of Lift Front/Rear End 167mm/133mm Cylinder Diameter&Stroke 60X70 Unidirectional Operation Transport Package Plywood Case Specification CE Trademark Xinder Origin Changzhou Jiangsu China HS Code 8428909090 Production Capacity 500 Sets Per Month

Product Description

INFORMATION

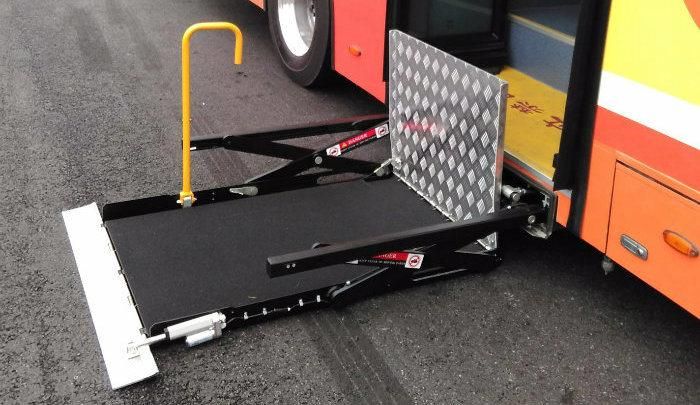

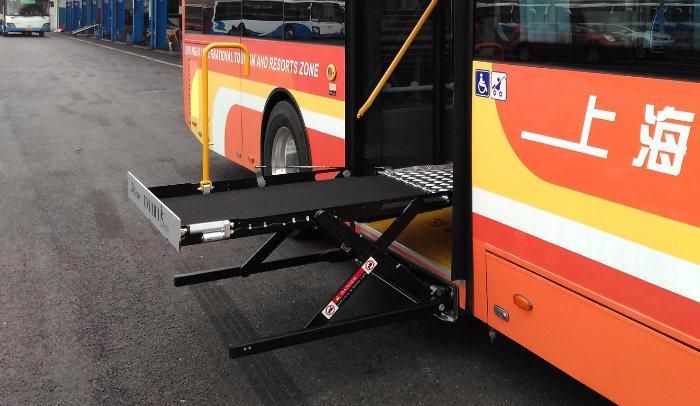

WL-UVL Series wheelchair lift is installed under vehicle floor. It is operated easily, safe and reliable, with load capacity 300KG. The wheelchair occupant, attendant or driver can operate it by operating switches.

The main function of this lift is to help the wheelchair to get into/get out of vehicle, and help wheelchair user to have a freedom movement.
This lift has a super thin cassette, and it can be installed under vehicle step, so it doesn't take any room of vehicle.
Here are many safe equipment. The platform is anti-skip with safety side baffle, front rollstop and rear rollstop. Drive mode of front rollstop is electric, and drive mode of rear rollstop is automatic mechanical.
Lift power is supplied from electric-hydraulic system which is safety, stable, easy operated.
Loading capacity can be 300kg.
This lift is operated by remote control. Meanwhile, this lift can be operated manually for emergency.

ADVATANGES
Has super thin cassette;
Platform is anti-skip with side baffle, electric front rollstop and automatic mechanical rear rollstop;
Use self-lubricating bearings at main hinge joint points;
Surface treatment is powder painting with high level rust protection;
Full electric-hydraulic system which is safety, stable, easy operated;
Manual operation for emergency
Warning sound during working

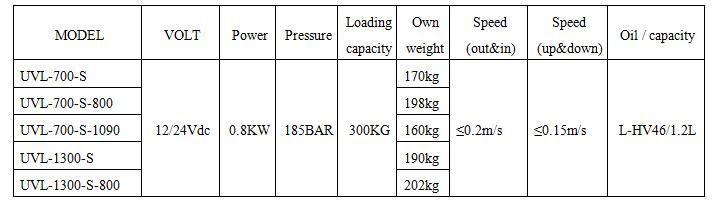

TECHNICAL

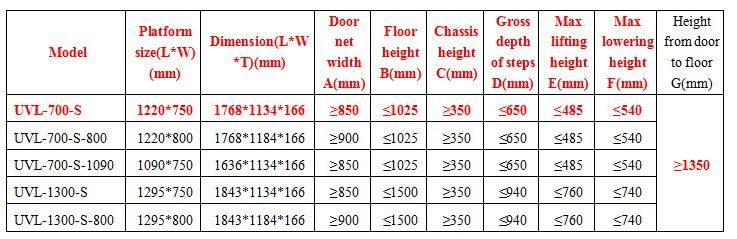

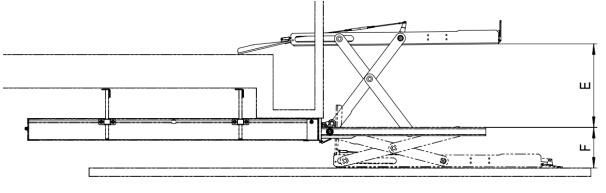

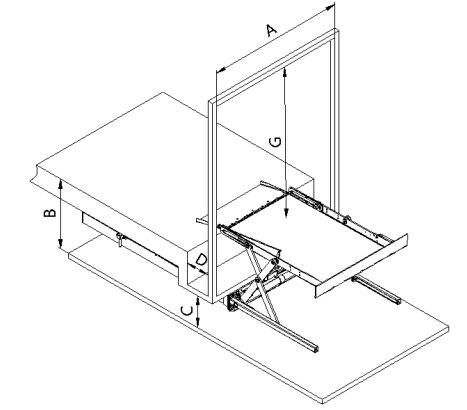

DIMENSIONS
