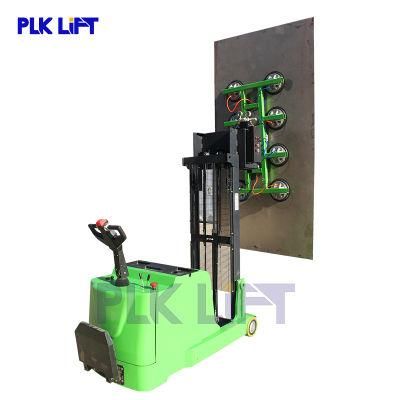

600kg Glass Lifter Robot Electric Vacuum Glass Lifter
Jinan PLK Machinery Co., Ltd.- After-sales Service：Online Service, Free Express Accessories.
- Warranty：12 Months
- Product Name：Glass Lifter
- Model：HD
- Package：Wooden
- Operation：DC Battery
Base Info
- Model NO.：GL-HD
- Rotary：Manual
- Key：Lifter
- Moves：Moving
- Driven Type：DC
- Running Mode：Moving
- Feature：Explosion-Proof, Insulating
- Certification：GS, CE, RoHS, ISO 9001
- Lift Mechanism：Vacuum
- Carrying Capacity：600kg-800kg
- Transport Package：Wooden Package
- Specification：6CBM
- Trademark：PLK LIFT
- Origin：China
- HS Code：8428909090
- Production Capacity：500sets
Description
Model
GL-HD-4015(4x30)
GL-HD-4015(6x25)
GL-HD-4015(6x30)
GL-HD-4015(8x25)
Max. Load Capacity
400kgs
400kgs
400kgs
400kgs
Safe Load Capacity
200kgs
200kgs
200kgs
200kgs
Lifting Height
1500mm
1500mm
1500mm
1500mm
QTY of Caps (customized)
4pcs
6pcs
6pcs
8pcs
Cap Diameter
Ø300mm
Ø250mm
Ø300mm
Ø250mm
Plate Size (customized)
1220x1830mm
1220x1830mm
1220x1830mm
1220x1830mm
Load Center
650mm
650mm
650mm
650mm
Drive Motor
24V/500W
24V/500W
24V/500W
24V/500W
Hydraulic Motor
24V/2000W
24V/2000W
24V/2000W
24V/2000W
Battery
2x12V/70Ah
2x12V/70Ah
2x12V/70Ah
2x12V/70Ah
Charger
24V/10A
24V/10A
24V/10A
24V/10A
Functions:
- Self-propelled drive. Manual rotating.
- Electric lift up to 2.5M
- Higher lift cap. is available upon request.
- Electric side shift 100mm both right & left.
- Electric tilting forwards & backwards from vertical to horizontal or reverse.
