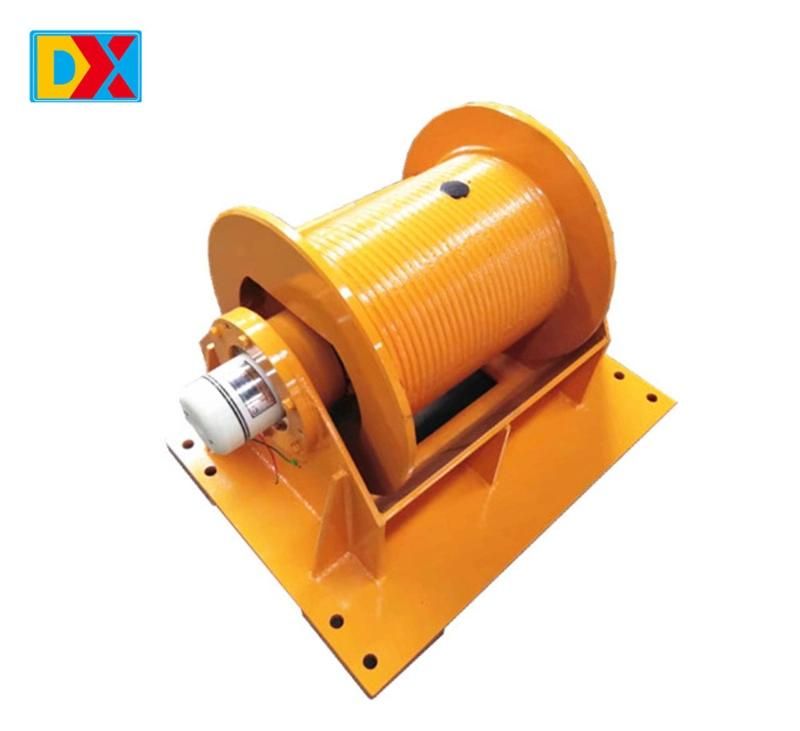

12 Ton Crane Part Dq5b30e Lifting Winch of 5000 Nm Torque Speed Reducer

Shandong Daixin Intelligent Technology Co., Ltd.
  • After-sales Service：Yes
  • Warranty：1 Year
  • Type：Construction Winch
  • Driven Type：Hydraulic
  • Speed：Fast
  • Carrying Capacity：Middle-Level

Base Info

  • Model NO.：DQ5B30E
  • Tonnage：3T
  • Reel Number：1
  • Running Mode：Moving
  • Certification：ISO 9001
  • Standard：National Standards
  • Product Name：Hydraulic Hoisting Winch
  • Model：Dq10b38e
  • Rated Line Pull：5 Ton
  • Pulling Force(4th Layer)：43 Kn
  • Max. Output Torque：10500 Nm
  • Rope Capacity：160 M
  • Rope Diameter：17 mm
  • Drum Diameter：385 mm
  • Input Speed：3196 Rpm
  • Output Speed：51 Rpm
  • Rope Press：Optional
  • Application：Truck Crane, Crane, Crawler Crane
  • OEM：Acceptable
  • Max. Input Torque：294 Nm
  • Ratio：37.6:1
  • Transport Package：Polywood Box
  • Specification：668*600*600 mm
  • Trademark：DX
  • Origin：China
  • Production Capacity：10000 PCS,Year

Description

ProductHydraulic hoisting winchModelDQ10B38ELine pull capacity (1st layer)5 tonPulling force (4th layer)43 KNDrum output torque10500 NmWire rope capacity160 mWire rope diameter17 mmDrum diameter385 mmDrum width 541 mmRope tensionerOptional spring Applicationhoisting works for truck crane, wrecker, recovery truck, tow truck, self loader platform, etcOEM Acceptable  Product features:
 1.Compact size
2.Low noise
3.High start-up and working efficiency
4.Easy installation, operation and maintenance
5.Various models for wide applications
6.One year warranty
7.Free components for replacement within warranty period
8.Professional and tailored solution for different requirements
9.Free technical support at any time

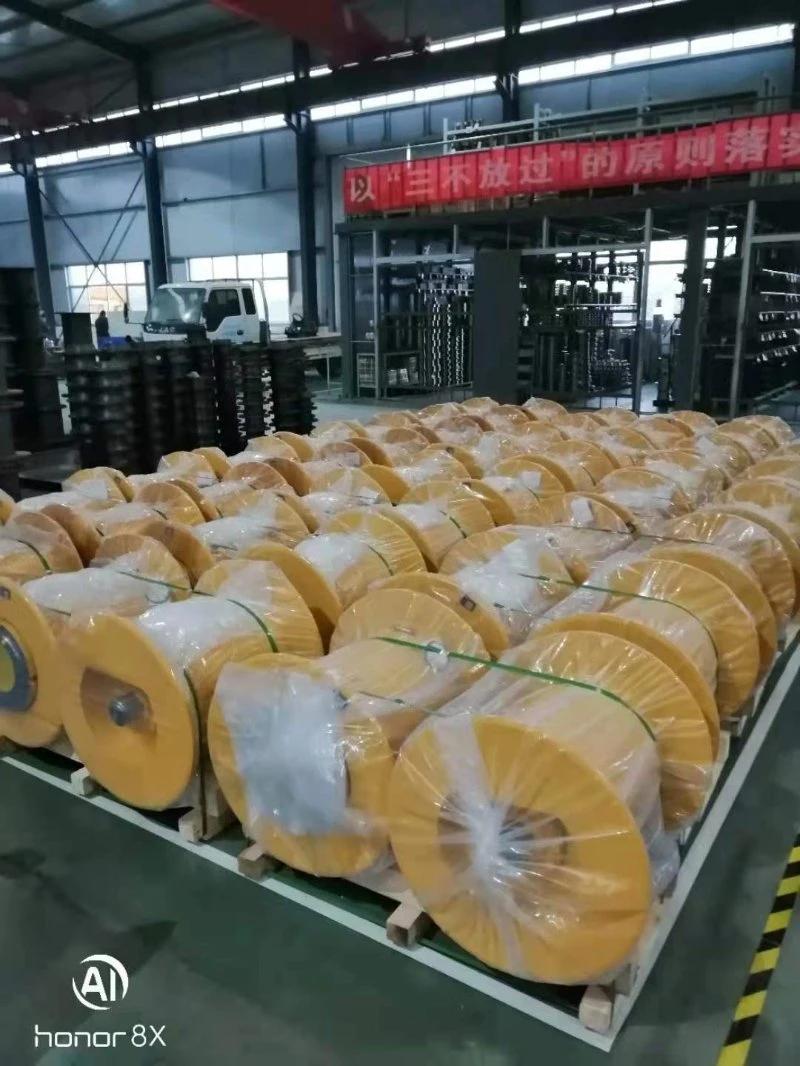

10.Customer training is available. 12 Ton Crane Part Dq5b30e Lifting Winch of 5000 Nm Torque Speed ReducerPacking and delivery details:

Packing method: plywood box (1 pc / box)

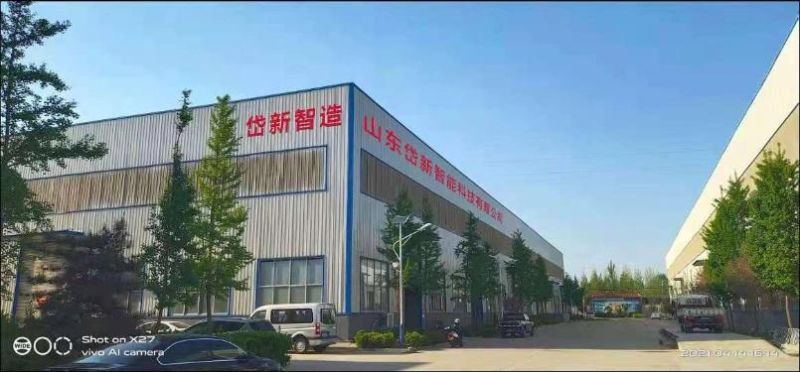

 12 Ton Crane Part Dq5b30e Lifting Winch of 5000 Nm Torque Speed Reducer 12 Ton Crane Part Dq5b30e Lifting Winch of 5000 Nm Torque Speed Reducer  Company details:

Shandong Daixin Intelligent Technology Co., Ltd is a scientific and technological enterprise engaged in the research, development and production of planetary gear transmission products, like slewing reducers, Travel drive reducers, lifting winch reducers, hydraulic winches, etc.

The company has always put quality management as the top priority of the company's development. The products are manufactured not only meet the international ISO 4301 and ISO9001 standards, but also meet the US SAE J706 and the European Union CE standards.

Daixin Intelligent Technology relies on quality, reputation and service to develop, cultivate and consolidate the national and global markets. Be our partners and be our friends.
 12 Ton Crane Part Dq5b30e Lifting Winch of 5000 Nm Torque Speed Reducer 12 Ton Crane Part Dq5b30e Lifting Winch of 5000 Nm Torque Speed Reducer  Our clients:

The company relies on quality, reputation and service to develop, cultivate and consolidate the national and global markets.

Currently, the cooperative customers include: the famous construction machinery manufacturers Sany and Zoomlion, the largest wrecker manufacturer Guangdong Yuehai Company, and the largest high-altitude vehicle manufacturer Xuzhou Handler Company.

Products are also exported to Russia, Belarus, Spain, UK, Canada, Australia, India, Malaysia and other countries.
 12 Ton Crane Part Dq5b30e Lifting Winch of 5000 Nm Torque Speed Reducer 12 Ton Crane Part Dq5b30e Lifting Winch of 5000 Nm Torque Speed Reducer 12 Ton Crane Part Dq5b30e Lifting Winch of 5000 Nm Torque Speed Reducer
FAQ:

1.How to choose the product which meets our requirement?
A) Look through our shop, find a proper item, send me an inquiry, I quote details for you.
B) In case no suitable item in our shop, send me an inquiry with your requirements, we can customize for you.

2.What is payment term?
A) For regular design: 30% deposit, the balance before loading.
B) For customized design: 50% deposit, the balance before loading.
Payment term is negotiable according to order.

3.What is delivery time?
A) For common models in stock, delivery time are 5-7 days.
B) For customized models and new production, delivery time are 30-40 days.

5.How about after-sale service?
A) Within warranty, all spare parts are delivered for free.
B) Exceed warranty, all spare parts are offered with the lowest production cost.
Warranty period is one year, but our servicing is for the whole lifetime of product, so no worry for reselling and personal resell.

 Thank you for the time. For any question or requirements, please contact me :-)
