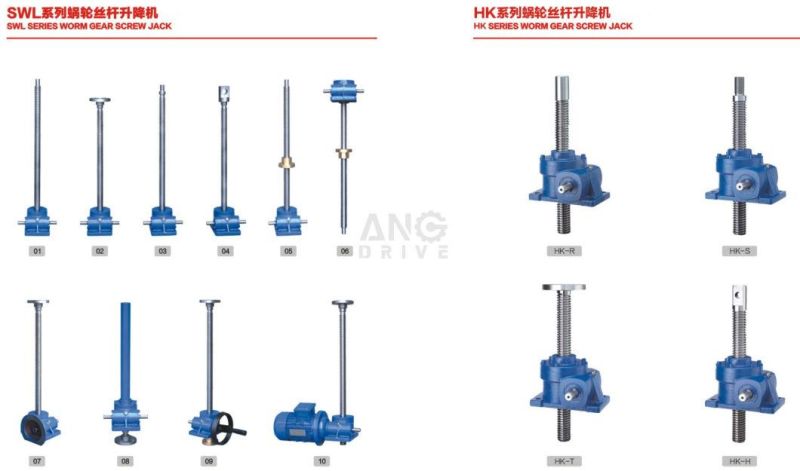

Swl Mechanical Screw Lifter Speed Reduction Worm Gears Heavy Duty Screw Jacks Screw Reducer Manual Lifting Jacks Lifter
Hangzhou ANG Drive Co., Ltd.- Warranty：12 Months
- Type：Mechanical Jack
Base Info
- Model NO.：SWL
- Structure：Screw Jack
- Capacity (Load)：1 to 120 Ton
- Power Source：Manually Operated, Motor Driven
- Max Height：>400mm
- Certification：CE, ISO 9001:2008
- Condition：New
- Worm Gear Ratios：5:1, 6:1, 8:1, 9:1, 10:1, 12:1, 20:1, 24:1, 32:1
- Lifting Screw Ends：Top Plate, Clevis End, Threaded End, Plain End
- Mount Types：Upright Mount, Inverted Mount
- Input Types：Input Shaft, Motor Flange, or Both
- Lifting Screw Diameter：14mm to 160mm
- Travel Length：10mm - 10000mm
- Lifting Screw Designs：Translating Screw, Keyed Screw, Rotating Screw

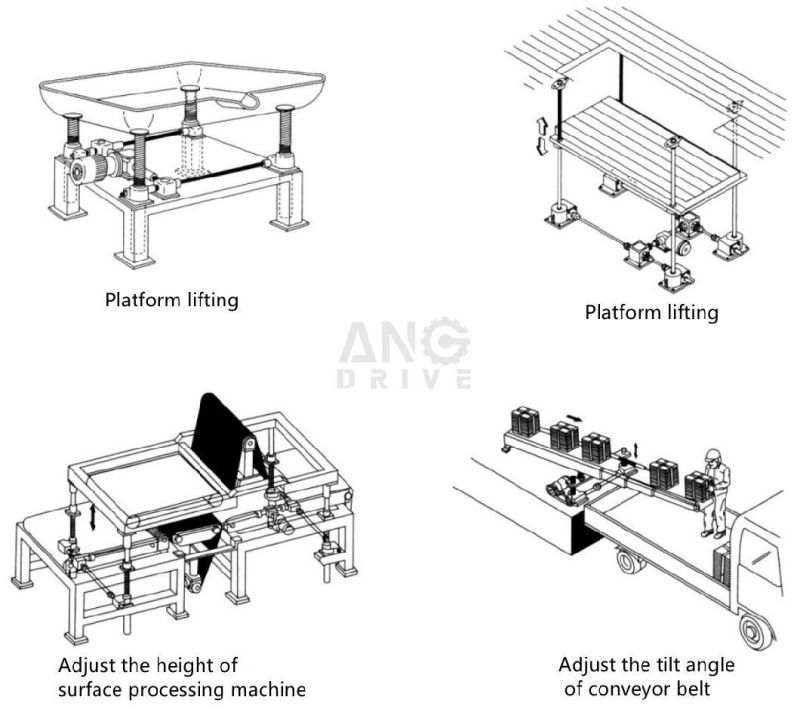

- System Arrangements：Pair, Three, Four, Six, Eight Jacks Lifting System
- Transport Package：Carton+Wooden Case
- Specification：SWL2.5-120
- Trademark：ANG Drive
- Origin：China
- HS Code：8483409090
- Production Capacity：30000PCS Per Month
- Package size per unit product：110.00cm * 110.00cm * 110.00cm
- Gross weight per unit product：800.000kg
Description
Overview

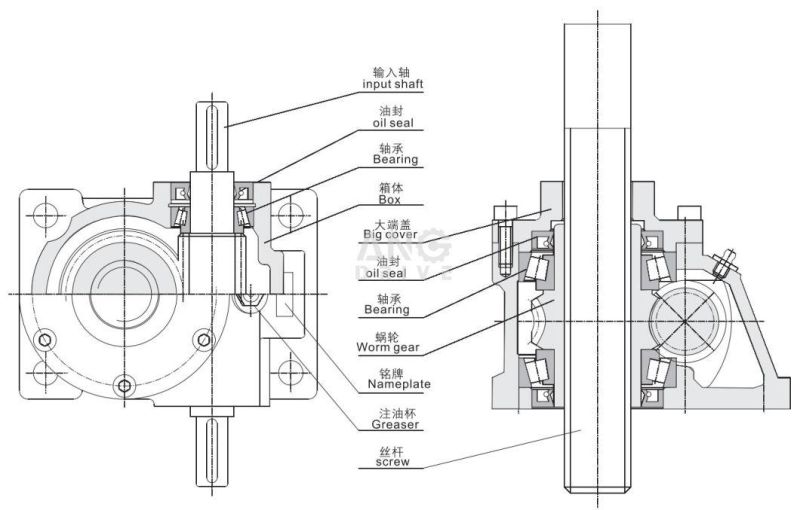

Product DescriptionProduct structure
CertificationsFAQ
Q: Can you make the reducer with customization?
A: Yes, we can customize per your request, like flange, shaft, configuration, material, etc.
Q: Do you provide samples?
A: Yes. A sample is available for testing.
Q: What is your MOQ?
A: It is 10pcs for the beginning of our business.
Q: What's your lead time?
A: Standard products need 5-30days, a bit longer for customized products.
Q: Do you provide technical support?
A: Yes. Our company have design and development team, we can provide technical support if you
need.
Q: How to ship to us?
A: It is available by air, or by sea, or by train.
Q: How to pay the money?
A: T/T and L/C are preferred, with a different currencies, including USD, EUR, RMB, etc.
Q: How can I know the product is suitable for me?
A: >1ST confirm drawing and specification >2nd test sample >3rd start mass production.
Q: Can I come to your company to visit?
A: Yes, you are welcome to visit us at any time.
Q: How shall we contact you?
A: You can send an inquiry directly, and we will respond within 24 hours.
Detailed PhotosProduct Parameters
CertificationsFAQQ: Can you make the reducer with customization?
A: Yes, we can customize per your request, like flange, shaft, configuration, material, etc.
Q: Do you provide samples?
A: Yes. A sample is available for testing.
Q: What is your MOQ?
A: It is 10pcs for the beginning of our business.
Q: What's your lead time?
A: Standard products need 5-30days, a bit longer for customized products.
Q: Do you provide technical support?
A: Yes. Our company have design and development team, we can provide technical support if you
need.
Q: How to ship to us?
A: It is available by air, or by sea, or by train.
Q: How to pay the money?
A: T/T and L/C are preferred, with a different currencies, including USD, EUR, RMB, etc.
Q: How can I know the product is suitable for me?
A: >1ST confirm drawing and specification >2nd test sample >3rd start mass production.
Q: Can I come to your company to visit?
A: Yes, you are welcome to visit us at any time.
Q: How shall we contact you?
A: You can send an inquiry directly, and we will respond within 24 hours.
