Shanding Aerial Work Table Electric Hydraulic Lift Aluminium Lifting Platform
Shandong Davoo Machinery Co., Ltd.- After-sales Service:Interview,Video Show
- Warranty:6 Month
- Application:Workshop Crane, Shipboard Crane, Warehouse Crane
- Lift Mechanism:Scissor Lift
- Carrying Capacity:Light Level
- Moves:Self-propelled
Base Info
- Model NO.:GTWY- SERIES
- Driven Type:AC
- Running Mode:Moving
- Feature:Explosion-Proof
- Certification:ISO 9001
- Rated Loading:100~300kg
- Rated Lifting Height:4-20m
- Table Size:650*650mm
- Rated Power:2kw
- MOQ:1 Unit
- Transport Package:Poly Wood Box
- Specification:4M-16M
- Trademark:SHANDING
- Origin:Shandong, China
- HS Code:8428109000
- Production Capacity:100pieces Per Week
Description
Basic Info.
Model NO. GTWY- SERIES Driven Type AC Running Mode Moving Feature Explosion-Proof Certification ISO 9001 Rated Loading 100~300kg Rated Lifting Height 4-20m Table Size 650*650mm Rated Power 2kw MOQ 1 Unit Transport Package Poly Wood Box Specification 4M-16M Trademark SHANDING Origin Shandong, China HS Code 8428109000 Production Capacity 100pieces Per WeekProduct Description

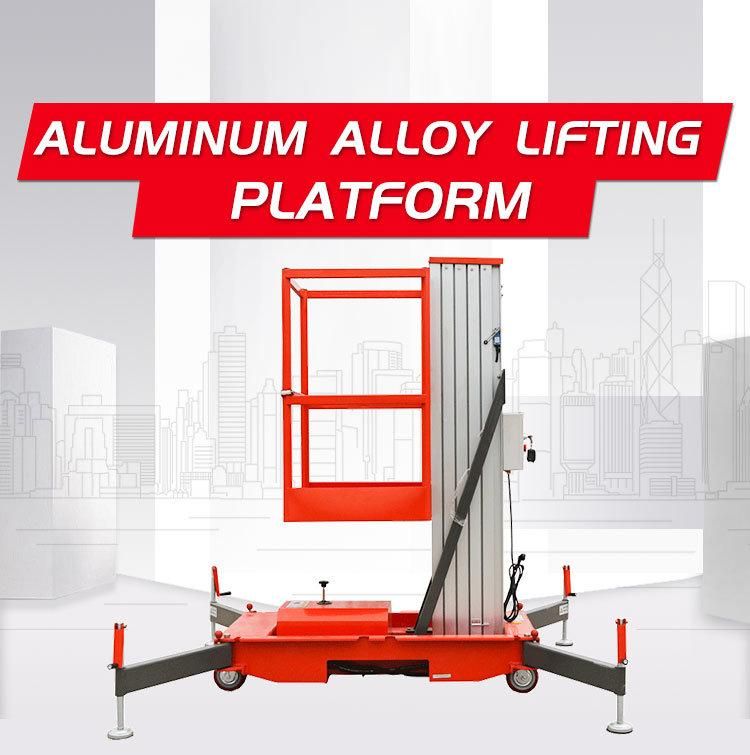

SHANDING GTWY-SERIES LIFTING TABLE
Our Lift Table is designed off the feedback of numerous workshops around the country in need of a lift table that is smaller and not so high price point. With the small table, it's much easier to move around within the shop and much easier to find a storage location for it. What makes it unique? It's made to work on WALMARKER,BESTBUY and many other manufactures, making this table versatile for any job!
MAIN PARAMETERS:

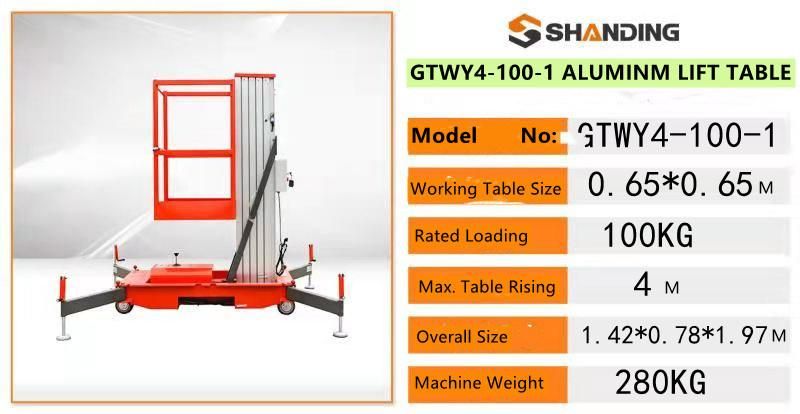

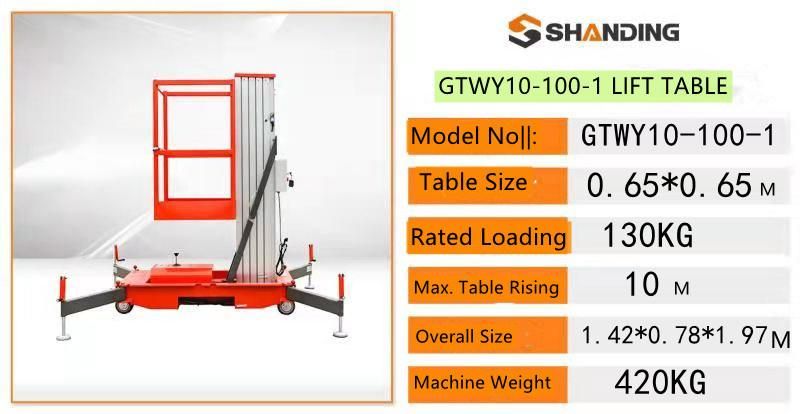

MODEL NO | GTWY4-100-1 | GTWY6-100-1 | GTWY8-100-1 | GTWY10-100-1 |
MAX WORKING HEIGHT | 6M | 8m | 10m | 12m |
MAX HEIGHT OF WORKING TABLE | 4m | 6m | 8m | 10m |
RATED LOADING | 100kg | 150kg | 130kg | 130kg |
WORKING TABLE SIZE | 650*650*1100MM | 650*650*1100mm | 650*650*1100mm | 650*650*1100mm |
OVERALL SIZE | 1420*780*1970mm | 1420*780*1970mm | 1420*780*1970mm | 1420*780*1970mm |
MIN GROUND CLEARANCE | 50mm | 50mm | 50mm | 50mm |
WHEELBASE | 1..29m | 1.29m | 1.29m | 1.29m |
RATED POWER OF DRIVING MOTOR | 220V/1.1kw | 220V/1.1kw | 220V/1.1kw | 220V/1.1kw |
RATED POWER OF RISING MOTOR | 24V/3.0kw | 24V/3.0kw | 24V/3.0kw | 24V/3.0kw |
SPEED OF RISE &DECLINE | 3-5m/min | 3-5m/min | 3-5m/min | 3-5m/min |
WEIGHT | 340kg | 360kg | 380kg | 420kg |
