Electric Mobile Scissor Lift Scaffolding Mobile Scissors Lifting Platform
Jinan PLK Machinery Co., Ltd.- After-sales Service:Online Service, Free Express Accessories.
- Warranty:12 Months
- Application:Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism:Scissor Lift
- Carrying Capacity:500kg-2000kg
- Moves:Moving
Base Info
- Model NO.:SJY
- Driven Type:DC
- Running Mode:Moving
- Feature:Explosion-Proof, Insulating
- Certification:GS, CE, RoHS, ISO 9001
- Marketing Type:Hot Product
- Core Components:Pressure Vessel, Motor, Bearing
- Color:Customers′ Requirements
- Material:High-Duty Steel Structure
- Lift Drive:Hydraclic
- Customizable Area:Platform Size
- Motor Power:380V etc
- Certificate:CE
- After-Sales Service Provided:Free Spare Parts
- Control:Controller
- Rated Loading:200kg
- Working Condition:Indoor Outdoor
- Function:Carry
- Video:Standard
- Transport Package:Standard
- Specification:500-2000
- Trademark:PLK LIFT
- Origin:China
- HS Code:8428909090
- Production Capacity:500sets
Description
Basic Info.
Model NO. SJY Driven Type DC Running Mode Moving Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Marketing Type Hot Product Core Components Pressure Vessel, Motor, Bearing Color Customers′ Requirements Material High-Duty Steel Structure Lift Drive Hydraclic Customizable Area Platform Size Motor Power 380V etc Certificate CE After-Sales Service Provided Free Spare Parts Control Controller Rated Loading 200kg Working Condition Indoor Outdoor Function Carry Video Standard Transport Package Standard Specification 500-2000 Trademark PLK LIFT Origin China HS Code 8428909090 Production Capacity 500setsProduct Description

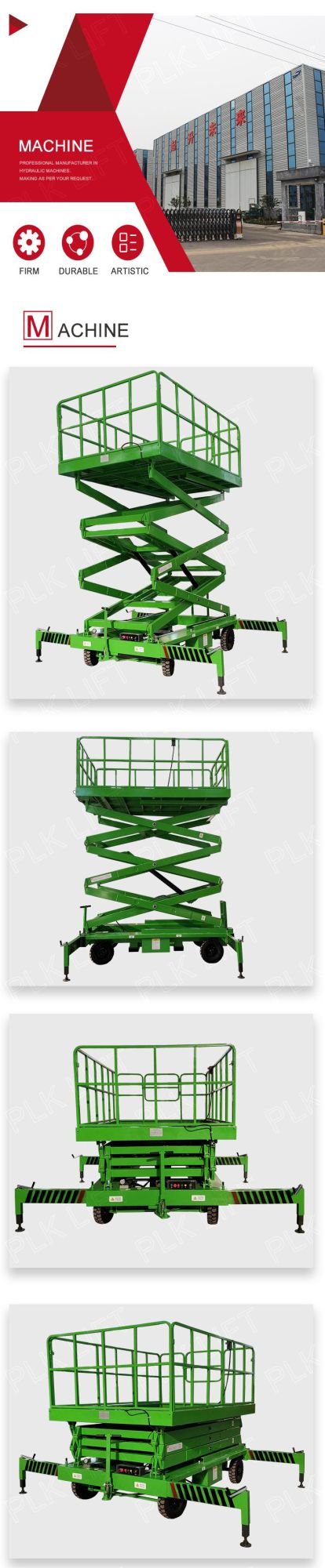

Electric Mobile Scissor Lift Scaffolding Mobile Scissors Lifting Platform
Electric scissor lift has CE certificate which is popular in Aerial working industry, Manual dragging,two universal wheels,two fixed wheels,convenient for moving and turning.
It has power failure self locking function and emergency descent system which can guarantee the worker safe.
There is AC DC or both AC&DC power option let you select, flexible power source which can make your work more efficient.
Model No. | Loading Capacity (kg) | Lifting Height (m) | Platform Size (m) | Overall size (m) | Motor (kw) | Wheels(φ) | Net Weight (kg) |
SJY4506-H | 450 | 6 | 1.85*0.88 | 1.95*1.08*1.1 | 1.5 | 200 PU | 800 |
SJY4507-H | 450 | 7.5 | 1.8*1.0 | 1.95*1.2*1.54 | 1.5 | 400-8 Rubber | 1000 |
SJY4509-H | 450 | 9 | 1.8*1.0 | 1.95*1.2*1.68 | 1.5 | 400-8 Rubber | 1200 |
SJY4511-H | 450 | 11 | 2.1*1.15 | 2.25*1.35*1.7 | 2.2 | 500-8 Rubber | 1580 |
SJY4512-H | 450 | 12 | 2.45*1.35 | 2.5*1.55*1.88 | 3 | 500-8 Rubber | 2450 |
SJY4514-H | 450 | 14 | 2.45*1.35 | 2.5*1.55*2.0 | 3 | 500-8 Rubber | 2650 |
SJY1006-H | 1000 | 6 | 1.8*1.0 | 1.95*1.2*1.45 | 2.2 | 500-8 Rubber | 1100 |
SJY1009-H | 1000 | 9 | 1.8*1.25 | 1.95*1.45*1.75 | 3 | 500-8 Rubber | 1510 |
SJY1012-H | 1000 | 12 | 2.45*1.35 | 2.5*1.55*1.88 | 4 | 500-8 Rubber | 2700 |
SJY0316-H | 300 | 16 | 2.75*1.5 | 2.85*1.75*2.1 | 3 | 500-8 Rubber | 3200 |

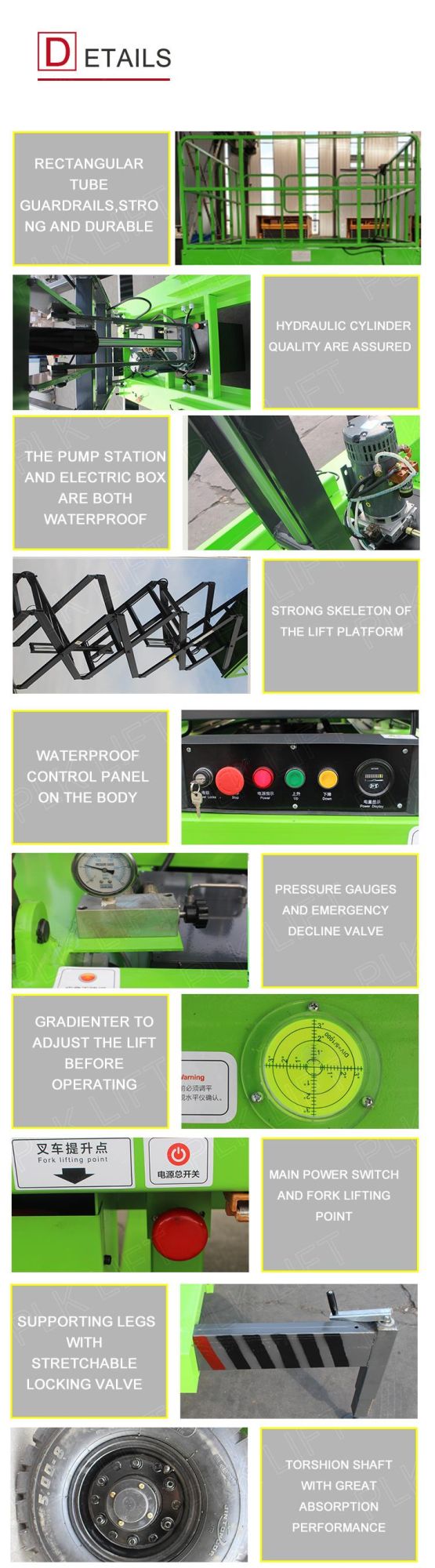

Simple structure, easy to maintain.
Manual dragging, two universal wheels, two fixed wheels, convenient for moving and turning
Moving by man manually or towed by tractor. Lifting by AC(without battery) or DC (with battery).
Electrical protection system:
a. The main circuit is equipped with main and auxiliary double contactors, and the contactor is faulty.
b. With rising limit, emergency limit switch
c. Equipped with emergency stop button on the platform
Power failure self-locking function and Emergency descent system
