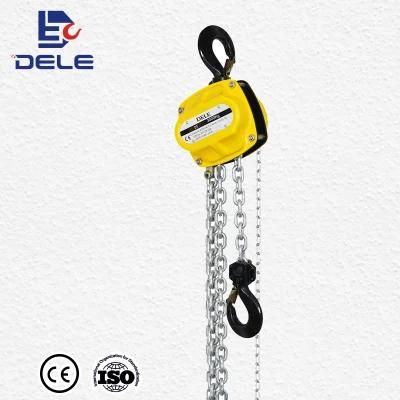

China Manufacturer Chain Hoist with Hand Pulling Chain Block Price
Shanghai Yiying Crane Machinery Co., Ltd.- Application：Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
- Type：Chain Hoist
- Sling Type：Chain
- Lift Speed：2~8m,min
- Maximum Lifting Height：3m
- Chain Falls：1
Base Info
- Model NO.：VC
- Certification：CE, ISO9001:2000
- Condition：New
- Color：Yellow
- Hook：Forged
- Chain：G80
- Loading Port：Shanghai Port or Tianjin Port
- Payment Term：T,T L,C
- Request Lifting Capacity：5 Ton
- Request Lifting Height：3m-12m
- Zinc Hand Chain：Available
- Delivery Time：10 Days
- Brand Name：Hugo
- The Numbers of Chains：2
- Transport Package：Carton, Plywood, Pallet
- Specification：CE, ISO, TUV
- Trademark：HUGO
- Origin：Shanghai, China
- HS Code：8425190000
- Production Capacity：10000,Month
Description
Product ParameterModel VC-A0.5 VC-A1 VC-A1.5 VC-A2 VC-A3 VC-A5 VC-A10 VC-A20 VC-A30 VC-A50 Capacity(t) 0.5 1 1.5 2 3 5 10 20 30 50 Standard
lift(m) 2.5 2.5 2.5 3 3 3 3 3 3 3 Running test load(t) 0.75 1.5 2.25 3 4.5 7.5 15 30 45 75 No.of falls of load chain 1 1 1 1 2 2 4 8 12 24 Load chain diameter(mm) 5 6.3 7.1 8 7.1 9 9 9 9 9 Dimension(mm) A 129 149.5 157.5 161.5 151.5 163 207 215 350 406 B 136 145 164.5 187 164.5 211 398 650 680 962 C 270 317 399 414 465 636 798 890 1380 2578 Net weight(kg) 8.4 12 16.2 20 24 41 79 193 220 1092 Packing(L*W*H)(cm) 22x14x15 25x19x16 33x24x16 33x24x19 34.5x24x16 40x30x19 48x4218.5 78x68x20 85x67x30 110x100x130
Application
Widely used in factories, mines, Bridges, construction and other work place for materials handling, equipment installation, etc. Especially be suitable for high-rise building construction and welding storage tank with a number of crane.
FAQ
1. What's the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
2. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
3.The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
4. What's the information should I provide when inquiry?
a. What's the lifting material?
b. How much is the maximum lifting weight of the hoist?
c. Have you installed the rails? Do you need us supply the rails? How long is it?
d. Where are the working environment?
