• Model NO.：SPS-14
• Driven Type：Hydraulic
• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Lifting Height：14 M
• Platform Height：14 M
• Working Height：16 M
• Load Capacity：227 Kg
• Extend Platform Length：900 mm
• Extend Platform Load：120 Kg
• Platform Size：2670*1130*1100
• Travel Speed：3.2,0.8 Km,H
• Grade Ability：14°(25%)
• Wight：3320kg
• Driver：Double Front-Wheel
• Hydraulic Drive：Double Rear-Wheel
• Way of Control：Electro-Hydraulic Proport
• Maximum Allowable Working Angle：1.5°,3°
• Working Height Range：3.8-16m
• Transport Package：Nude Packing in Container or Veneer Case by LCL
• Specification：CE, ISO
• Trademark：MORN
• Origin：China
• HS Code：8428909090
• Production Capacity：50,Month

Basic Info.

Model NO. SPS-14 Driven Type Hydraulic Running Mode Moving Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Lifting Height 14 M Platform Height 14 M Working Height 16 M Load Capacity 227 Kg Extend Platform Length 900 mm Extend Platform Load 120 Kg Platform Size 2670*1130*1100 Travel Speed 3.2/0.8 Km/H Grade Ability 14°(25%) Wight 3320kg Driver Double Front-Wheel Hydraulic Drive Double Rear-Wheel Way of Control Electro-Hydraulic Proport Maximum Allowable Working Angle 1.5°/3° Working Height Range 3.8-16m Transport Package Nude Packing in Container or Veneer Case by LCL Specification CE, ISO Trademark MORN Origin China HS Code 8428909090 Production Capacity 50/Month

Product Description

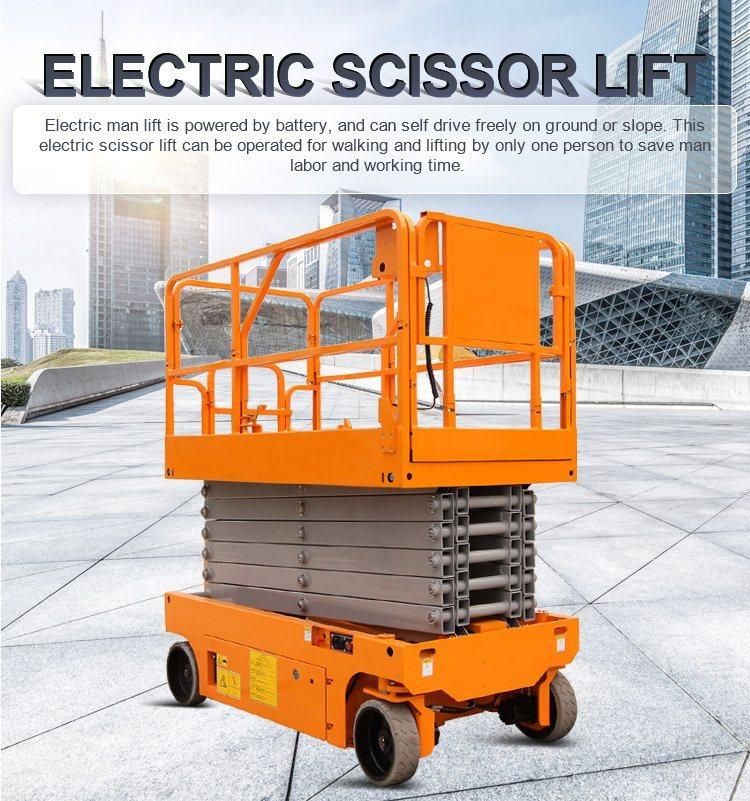

MORN China 12m 6m 8m 10m 14m hydraulic mobile scissor aerial lift/lifting work/working light platform
With the advantage of energy saving,low noise and environmental working and easy & flexible operation, electrical scissors are widely used in the indoor environment like workshops , warehouses, hotel,etc. Quiet and Convenient Devices Compact Structure Larger Working Space Swing-out Tray.

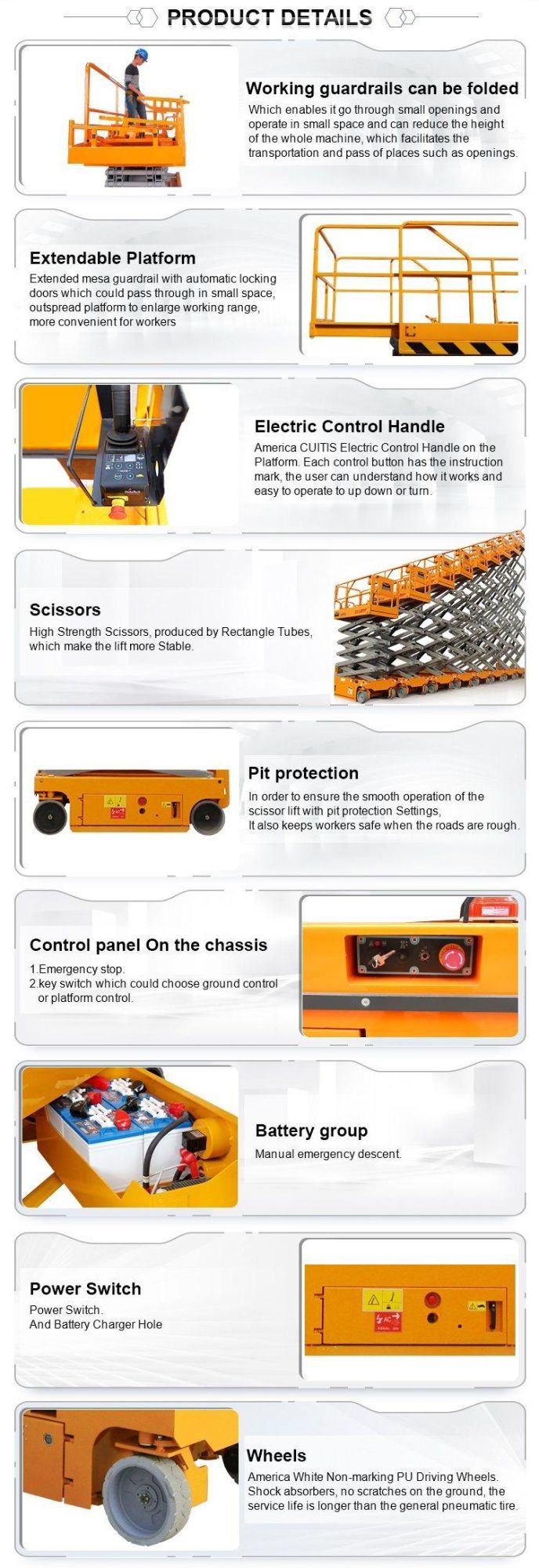

1, Extendable Platform
Extended mesa guardrail with automatic locking doors which could pass through in small space, outspread platform to enlarge working range, more convenient for workers
2, Working guardrails can be folded
Which enables it go through small openings and operate in small space and can reduce the height of the whole machine, which facilitates the transportation and pass of places such as openings.
3, Electric Control Handle
America CUITIS Electric Control Handle on the Platform. Each control button has the instruction mark, the user can understand how it works and easy to operate to up down or turn.
4, Scissors
High Strength Scissors, produced by Rectangle Tubes, which make the lift more
Stable.
5, Pit protection
In order to ensure the smooth operation of the scissor lift with pit protection Settings,
It also keeps workers safe when the roads are rough.
6, Control panel on the chassis
1.Emergency stop
2.key switch which could choose ground control or platform control
7, Battery group
America TORJAN Battery Group and Shanghai SHINENG Intelligent Charger
8, Power Switch
Power Switch.
And Battery Charger Hole

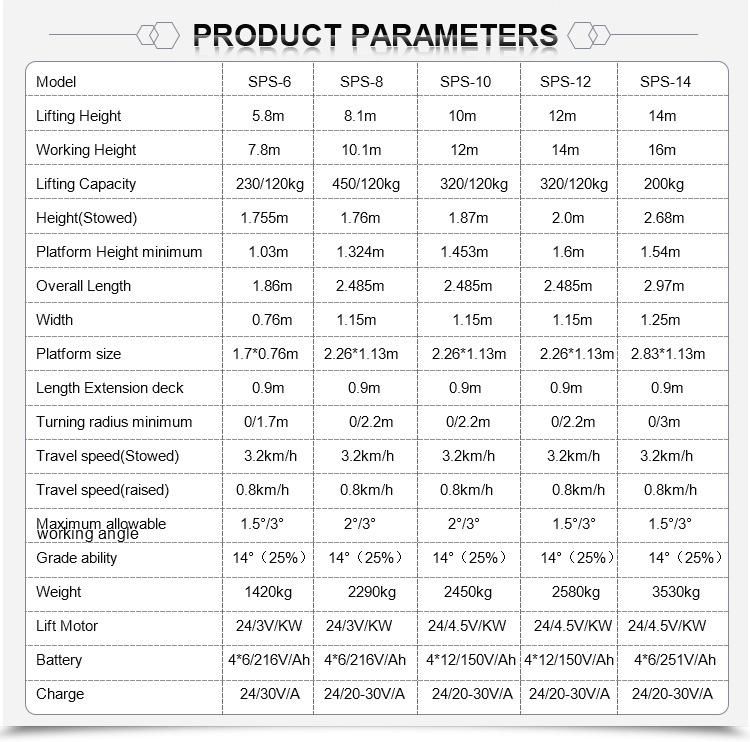

Model	SPS-6	SPS-8	SPS-10	SPS-12	SPS-14
Lifting Height	5.8 m	8 m	10m	11.8 m	13.8 m
Working Height	7.8 m	10m	12m	13.8m	15.8m
Lifting capacity	230/113 kg	450/113kg	320/113kg	320/113kg	227/1130kg
Height(Stowed)	1.84m	1.836m	1.964m	2.094m	2.058m
Platform Height minimum	1.08m	1.186m	1.314m	1.442m	1.49m
Overall Length	1.86m	2.475m	2.475m	2.475m	2.84m
Width	0.76m	1.15m	1.15m	1.15m	1.39m
Platform size	1.67*0.74m	2.26*1.13m	2.26*1.13m	2.26*1.13m	2.64*1.13m
Length extension deck	0.9m	0.9m	0.9m	0.9m	0.9m
Turning radius Minimum	0/1.7m	0/2.2m	0/2.2m	0/2.2m	0/3m
Travel speed(stowed)	3.2km/h	3.2km/h	3.2km/h	3.2km/h	3.2km/h
Travel speed(raised)	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h
Maximum allowable working angle	1.5°/3°	2°/3°	2°/3°	1.5°/3°	1.5°/3°
Grade ability	14°(25%)	14°(25%)	14°(25%)	14°(25%)	14°(25%)
Tire	Φ305*100mm	Φ381*127mm	Φ381*127mm	Φ381*127mm	Φ381*127mm
Wight	1435kg	2190kg	2430kg	2960kg	3320kg
Lift Motor	24/3V/KW	24/3V/KW	24/4.5V/KW	24/4.5V/KW	24/4.5V/KW
Battery	4*6/225V/Ah	4*6/216V/Ah	4*12/150V/Ah	4*12/150V/Ah	4*6/251V/Ah
Charge	24/30V/A	24/30V/A	24/30V/A	24/30V/A	24/30V/A
