Low Headroom Chain Hoist

Shanghai Yiying Crane Machinery Co., Ltd.
  • Warranty：1 Year
  • Application：Double Beam Crane, Gantry Crane, Single Grinder Crane, Small Crane, Lifting Equipment
  • Type：Electric Hoist
  • Sling Type：Chain
  • Lift Speed：7.2m,Min
  • Maximum Lifting Height：12m

Base Info

  • Chain Falls：4
  • Certification：CE, ISO9001:2000, TUV,SGS
  • Condition：New
  • Color：Orange
  • Name：Hsy Electric Hoist
  • Chain：Fec or Made in China
  • Brake：Electromagnetic Brake
  • Limiter：Yes
  • Single Speed：Yes
  • Cooling Fan：Yes
  • Low Headroom Type：Available
  • Trolley Type：Available
  • Volt：220V-440V
  • Transport Package：Wooden Case, Pallets, and So on
  • Specification：CE, ISO, TUV
  • Trademark：HUGO
  • Origin：Shanghai
  • HS Code：8425110000
  • Production Capacity：60000 Sets,Month

Description

 Product parametersModel
  HSYCapacity
  TONLifting
Height
MLifting
Speed
M/MINLifting  motor Drive  motorPower
KWRotational
Speed
  R/MINPh
aseVoltage
VFrequency
HZ/SPower
KWRotational
Speed
R/MINRunning
speed
M/MINPh
aseVoltage
VFrequency
HZ/S01-0113/96.81.514403380/22050/600.4144011/213380/22050/6002-0223/93.41.514403380/22050/600.4144011/213380/22050/602.5-012.53/96.83.014403380/22050/600.75144011/213380/22050/6003-0233/95.83.014403380/22050/600.75144011/213380/22050/6005-0253/92.83.014403380/22050/600.75144011/213380/22050/60

Features for the electric chain hoist HSY
1. Hooks
Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.
2. Power
Operating voltage 220-440V, 50/60Hz, 1-3 phase.
Low voltage control 36V is standard.
3. Motor
High efficient energy-saving motor, asbestos free brake system. 2-speed motor available.

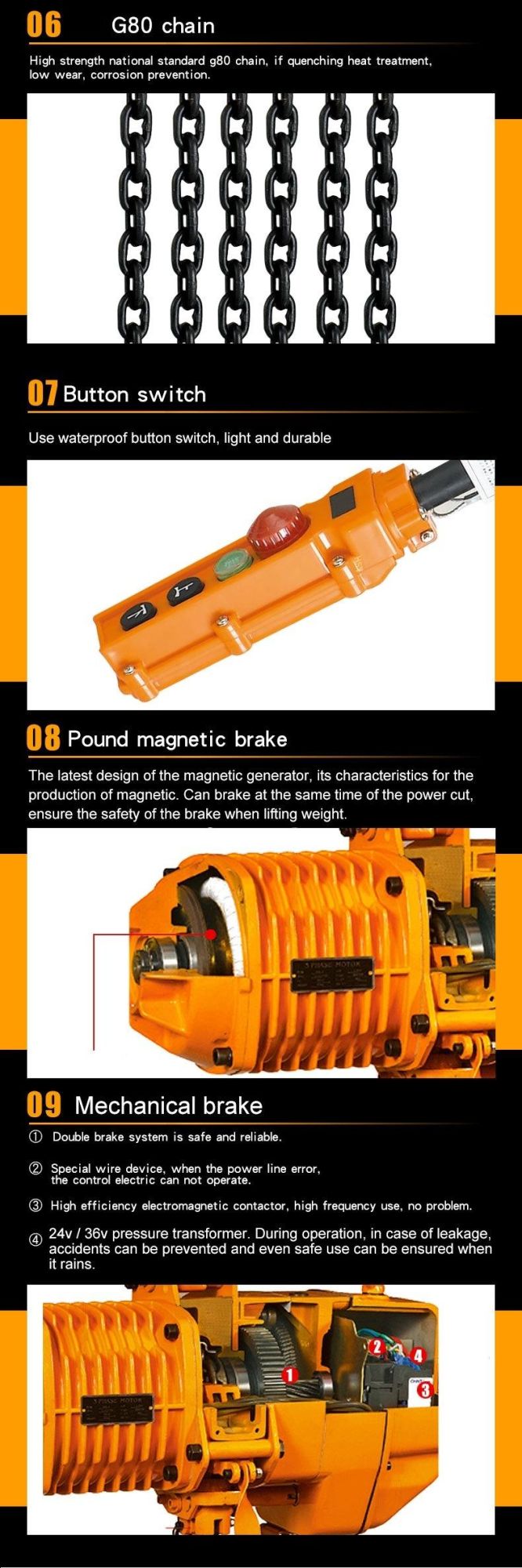

4. Chain
Alloy steel chain super strong surface hardened for optimum strength and wear resistance.
5. Chain Bucket
Solid chain bucket as standard part for safer operation
6. Limit Switch
Limit switch devices fitted at both top & bottom ends, switch off power automatically to prevent load chain from running out.
7. Phase Error Relay
Phase error relay, a specially designed current-post, prevents motor from running at incorrect wire connection.
8. Pushbutton Swith
Pushbutton swith is rain-proof plastic for severe impact and corrosive atmosphere resistance and mechanically interlocked.
9. Safety Latches
Top and bottom hooks are fitted with safety latches as standard.

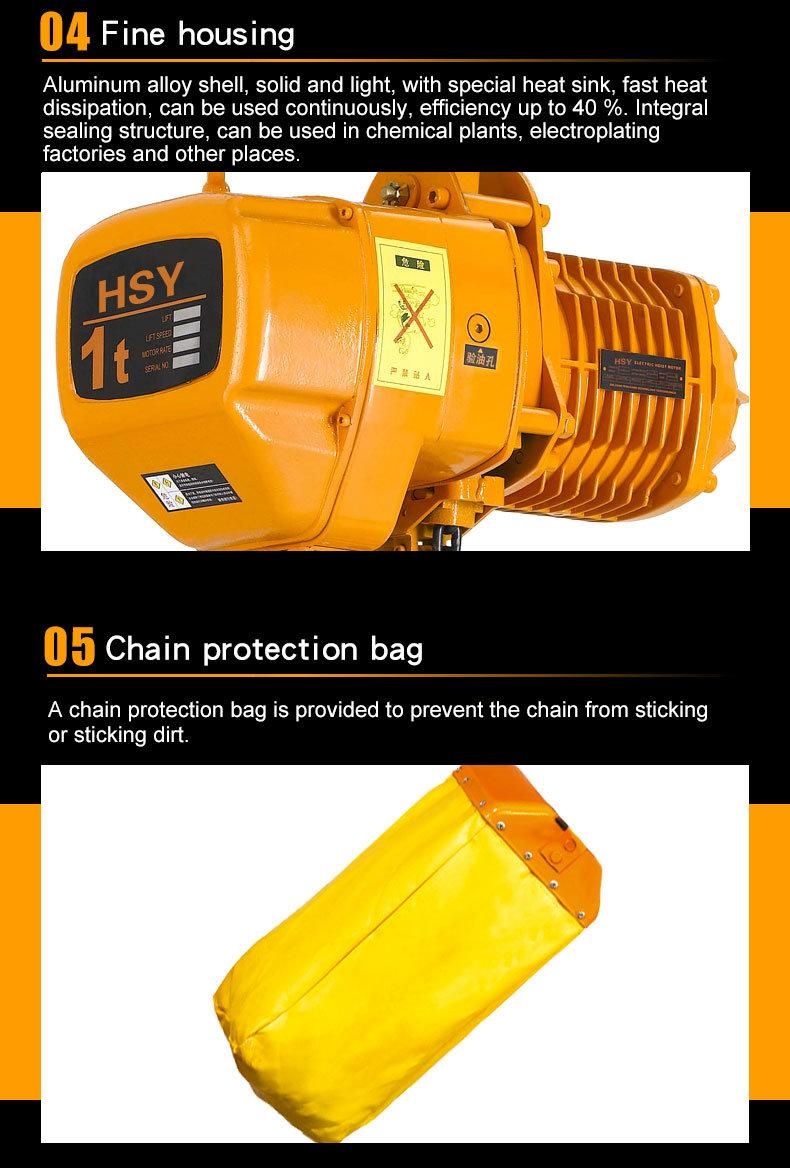

10. Light Wight
Light weight, compact and solid body case.
11. Push Button Control
Low Headroom Chain Hoist

Low Headroom Chain Hoist
Low Headroom Chain Hoist
Low Headroom Chain Hoist


Our Services Service Payment term:   T/T or L/C Warranty Period:  1 year Delivery time:  5 days after order Packing:  export carton and pallet
