• Model NO.：QUY55
• Grade Ability：30%
• Engine Power：200kw
• Max Mass of Single Unit in Travel：39ton
• Dimension：12.6*3.32*3.23m
• Transport Package：Nude(RO~RO and Container)
• Specification：Exporting standard
• Trademark：SMT
• Origin：Xuzhou, China
• Production Capacity：50000sets,Months

Item
Unit
Data
Max. rated load weight
t
60
Boom length
m
10.8-38
Jib length
m
7.4
Max. length of boom+jib
m
38+7.5
Luffing angle
°
-2~80
Working speed
m/min
m/min
130
m/min
130
130
m/min
130
r/min
0~1.8

Km/h
0~2.4

Hoisting multiple

12
Grade ability
%
40
Motor output power/rev.
Kw/rpm
155/2300
Total weight
t
58
Counterweight
t
18
Overall size
mm
14386X4760X3020
Unit pressure of ground
Kg/cm2
0.7

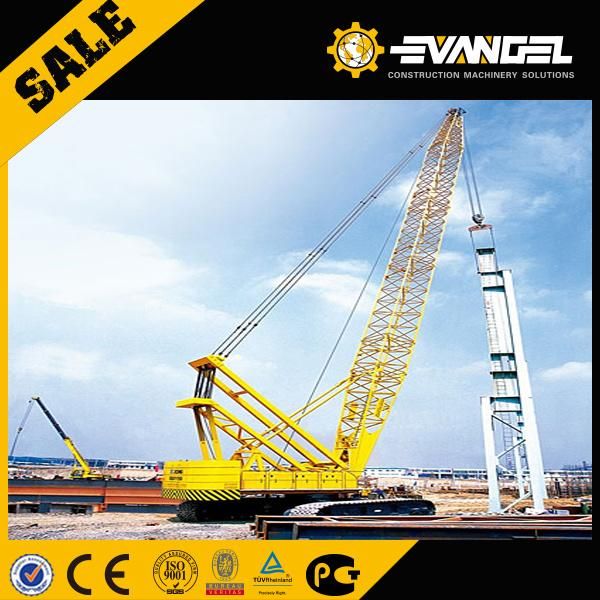

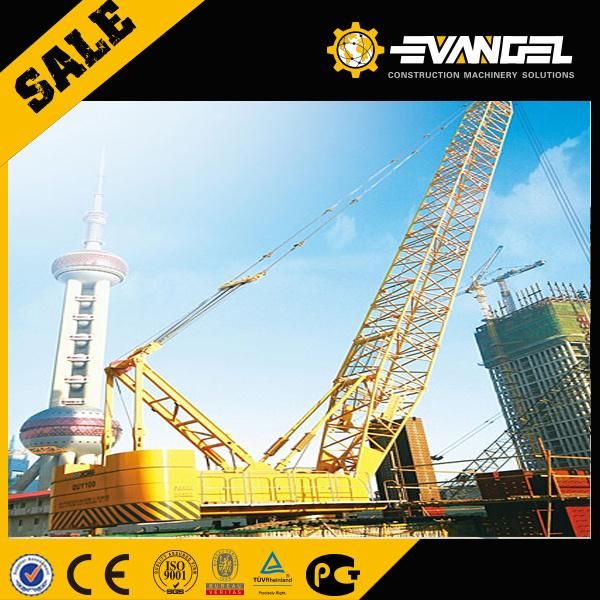

Main Features of SMT crawler crane



1.The boom system is no need to disassemble;

 2.The  telescopic boom can suit height -restric sites such as bridge constructio site;

3. Travelling with load;

4.The crane can work in sites of uneven and slope type;

5.The working range is more close to load;

6.Crane can be modified into drilling rigs or others.

 Why we choose  your crane?

1.We  are state-owned company and well-funded;

2.State-level R&D department;

3.Competetive price and great quality;

4.Complete after-service system;

5.Experienced in the import&export business
Features
1.Advanced technology
2.Most Popular truck in differet fields
3.Anti-rust&high reliable
4.Direct sale

ParametersItemValueRemarksMax. lifting capacity /RadiusWithout superlift
counterweight t×m400×6 With superlift
counterweight t×m400×8 Main boom length m24~84 Length of main boom with light boom headWithout superlift
counterweight m48~102 With superlift
counterweight m78~126 Deadweight with basic boom t350 Fixed jib length m12~36 Max. lifting capacity of fixed jib t80 Offset angle of Fixed jib°°10,30 Max. length of main boom
with fixed jibWithout superlift
counterweight m72+36 With superlift
counterweight m84+36 Luffing jib lengthWithout superlift
counterweight m24~66 With superlift
counterweight m24~84 Max. lifting capacity of
luffing jibWithout superlift
counterweight m140 With superlift
counterweight m180 Main boom angle under
luffing jib working condition °65,75,85 Max. length of main boom
with luffing jibWithout superlift
counterweight m54+66 With superlift
counterweight m84+84 Max. speed of single rope on drumMain winchm/min0~140 Auxiliary winchm/min0~140 Derricking winchm/min2×0~60 Luffing winchm/min0~125 Superlift derricking
winch m/min0~146 Hoisting winch for
tip boom m/min0~110 Overall dimensions (L×W×H) of basic machine in transportation
condition mm13900×3100×3240With mastEngineRated power/ rotational
speedkW/rpm343/1800 Torque/ rotational
speedNm/rpm2150/1100~1500 Emission standardEU Stage II Crawler gauge ×ground contact length ×track shoe width mm7800×9500×1200


Our Services
We can supply kinds of service to customers according to customers' request:
1,We Will Check Again Before Sending.

2,Spare Parts Supply:
We have our own spear parts departments,have strong production and distribution capability. We can satisfy your demand within 2-7 days. We always do our best to solve the problems, and put our customers' interests in the first place. And We can Supply Spare Parts For Many Brands, Such as SINOTRUK, BEIBEN, FAW, FOTON, IVECO, SHACMAN, SHANTUI, CIMC, DONGFENG and so on.
