• Model NO.：SSL2-3
• Driven Type：Hydraulic
• Running Mode：Stationary
• Feature：Explosion-Proof, Insulating, No
• Certification：CE, ISO 9001
• Platform：Antiskid
• Max Load Capacity：2000kg
• Installation：in a Pit
• Lifting Height：3m
• Guardrail(Optional)：1100mm
• Lift Speed：3-5m,Min
• Surface：Rust-Proof
• Painting：Epoxy Paint
• Voltage：220V,380V, AC Power, 1 or 3 Phase, Can Also Be Mad
• Color：Yellow, Blue, Green, Black as Your Requirement
• Transport Package：Plywood Case
• Specification：CE
• Trademark：Morn
• Origin：Jinan, China
• HS Code：84289090
• Production Capacity：10, 00PCS,Years

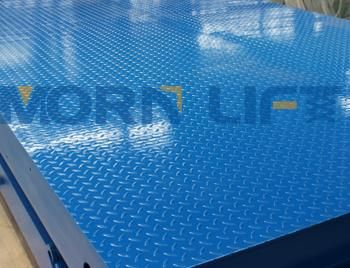

Skidproof Platform
Checkered steel plate for the table board, which could  prevent people and goods slipping down.

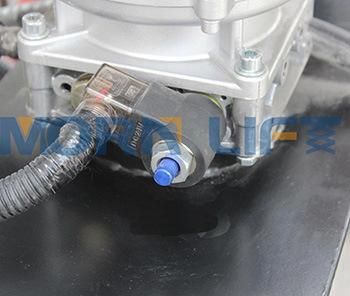

Manual Decline Valve
In case of the failure of electricity supply, the platform will be suspended in midair. Then we could manually make the platform come down to ground floor by the Manual Decline Valve. prevent potential danger.

Dismountable Guardrail
The guardrail is dismountable. we could assemble or disassemble the guardrail according to real application. It counld prevent prople from
injury if the goods fall down when lift moving.

Safety trip barThe safety trip bar is mounted under the platform as the photo shows.When the lift decline, if safety trip bar touch anything,the lift will stop immediately. So the safety trip bar will protect people or something else from being crushed by the platform.Overload warning deviceIt can prevent the lift working if overload, the light will brighten and warn, while lifts will stop moving. It prevent the accident resulting from overload.Interlocking systemWhen the door open, interlocking system will help cut off the power. Lip

We have two kinds of lips. manual lip and automatic lip. When loading and unloading goods from truck and container, we could put the lip down onto the truck and container.

Then it is an ideal connection and integrity between hydraulic trunk unloading lift and trunks.Safety skirtIf you need it,we can make it according to your requirements.It can prevent people getting into the lift casually. It also has a dustproof fuction.

Other technical Model:

ModelLoad capacityLifting heightWeightPlatform sizeMin heightMax heightSSL1-31000kg3000mm16001600x1200mm782mm3782mmSSL1-4.81000kg4800mm20002000x1500mm782mm5582mmSSL1-6.31000kg6300mm32803000x2385mm836mm7136mmSSL1-7.91000kg7900mm31002000x1800mm984mm8884mmSSL2-4.52000kg4500mm33002500x2200mm850mm5350mmSSL2-6.32000kg6300mm34002800x2000mm918mm7218mmSSL2-52000kg5000mm30004500x2160mm850mm5350mmSSL3-6.43000kg6400mm85007000x4000mm910mm7310mm

Please do not be confined to above listed models, as the staionary scissor lift is customizable in loading capacity, platform size, and lifting height for your individual requirements. So please inform your specific need.
