Factory Direct Sales Mini Electric Hoist PA200--PA1000 for Construction Lift
Shanghai Yiying Crane Machinery Co., Ltd.- Application：Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
- Type：Electric Hoist
- Sling Type：Chain
- Lift Speed：2~8m,min
- Maximum Lifting Height：>20m
- Chain Falls：2
Base Info
- Certification：CE, ISO9001:2000
- Condition：New
- Color：Optional
- Material：Forged
- OEM：Yes
- Usage：Construction Hoist
- Brand：Hugo
- Delivery Time：10 Days
- Voltage：380V 440V
- Capicity：200kg 500kg 1000kg
- Height Lifting：30m
- Input Power：450-1600W
- Packing Dimension：44*38*20cm
- Transport Package：Indivadually Packed
- Specification：55*35*45
- Trademark：Hugo
- Origin：China
- HS Code：842517000
- Production Capacity：20000,Month
Description
Basic Info.
Certification CE, ISO9001:2000 Condition New Color Optional Material Forged OEM Yes Usage Construction Hoist Brand Hugo Delivery Time 10 Days Voltage 380V 440V Capicity 200kg 500kg 1000kg Height Lifting 30m Input Power 450-1600W Packing Dimension 44*38*20cm Transport Package Indivadually Packed Specification 55*35*45 Trademark Hugo Origin China HS Code 842517000 Production Capacity 20000/MonthProduct Description
500kg mini wire rope electric winch
500kg mini wire rope electric winch Main specifications
1)The emergency stop switch
2)Upper limit function
3)Thermal protection terminal
4)Protection class IP54
5)Insulation class B
6)Group of mechanisms M1
7)Work Duty: S3-25%-10min
8)Rated Volt: 220/230V ~ 50Hz
9)Rated Current: 2.0A
10)Input Power: 550W
11)Lifting Weight: 100kg (Single-line), 200kg (Double-line)
12) Lifting Height: 12m (Single-line), 6m (Double-line)
13)Lifting Speed: 10m/min (Single-line), 5 m/min (Double-line)
14)Diameter of wire rope: 3.0mm
15)Tensile strength of wire rope ≥ 1870N/mm2
500kg mini wire rope electric winch Technical parameters:
| Model | PA200 | PA250 | PA400 | PA500 | PA600 | PA800 | PA1000 |
| Rated Volt(V) | 230~50HZ S3 20% 10MIN | 230~50HZ S3 20% 10MIN | 230~50HZ S3 20% 10MIN | 230~50HZ S3 20% 10MIN | 230~50HZ S3 20% 10MIN | 230~50HZ S3 20% 10MIN | 230~50HZ S3 20% 10MIN |
| Input power(W) | 450 | 5000 | 750 | 900 | 1050 | 1300 | 1600 |
| Retad lifting(kg) | 100/200 | 125/250 | 200/400 | 250/500 | 300/600 | 400/800 | 500/1000 |
| Lifting height(m) | 12/6 | 12/6 | 12/6 | 12/6 | 12/6 | 12/6 | 12/6 |
| Lifting speed(m/min) | 10/5 | 10/5 | 10/5 | 10/5 | 10/5 | 10/5 | 10/5 |
| Packing dimensions(cm) | 44*38*20 | 44*37*25 | 44*37*25 | 44*37*25 | 53*45*19 | 53*28*35 | 53*28*35 |
| GW/NW | 24/22 | 25/24 | 33/25 | 36/34 | 41/38 | 38/36 | 40/38 |
| QTY/CTN(PCS) | 2 | 2 | 2 | 2 | 2 | 1 | 1 |

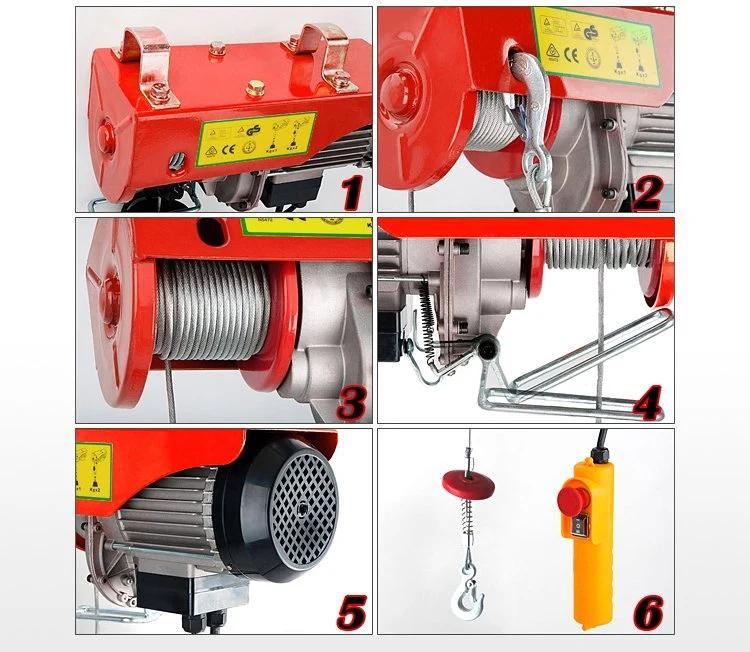

Component advantage

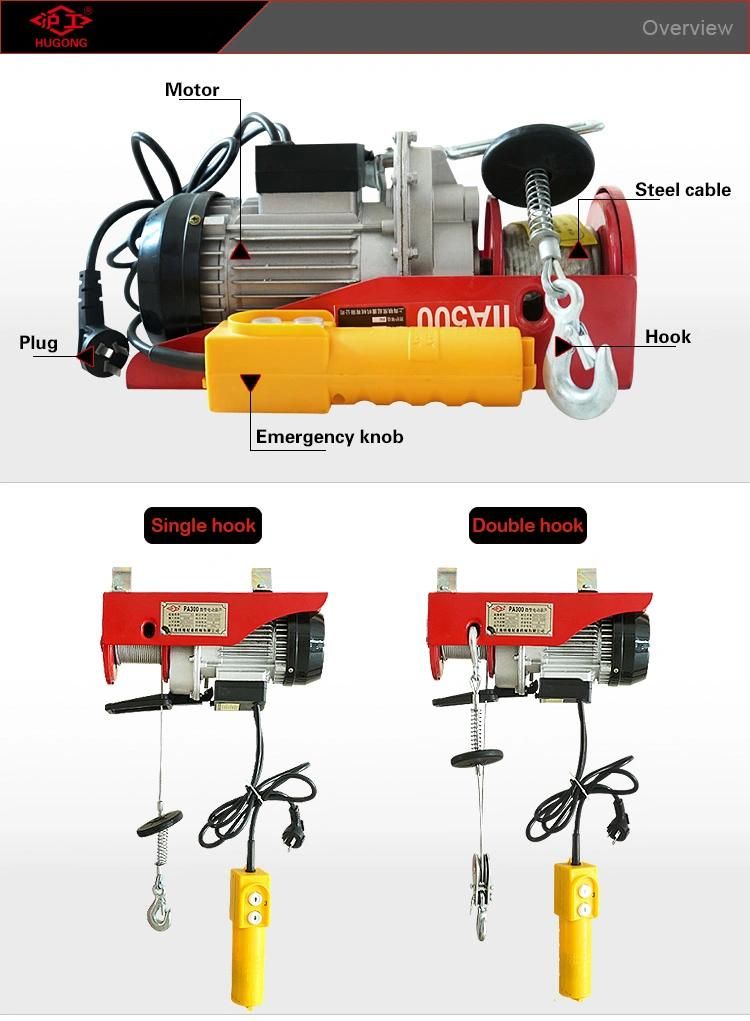

500kg mini wire rope electric winch
Certificate:
