• Model NO.：HKG08DQ
• Driven Type：Hydraulic
• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：CE, ISO 9001
• Maximum Platform Height：8000mm
• Maximum Height for Machine：9100mm
• Lowest Height for Platform：1200mm
• Foundation Ground Clearance：20mm
• Loading Capacity：300kg
• Loading Capacity for Platform Extension：100kg
• Working Platform Size：1880*900mm

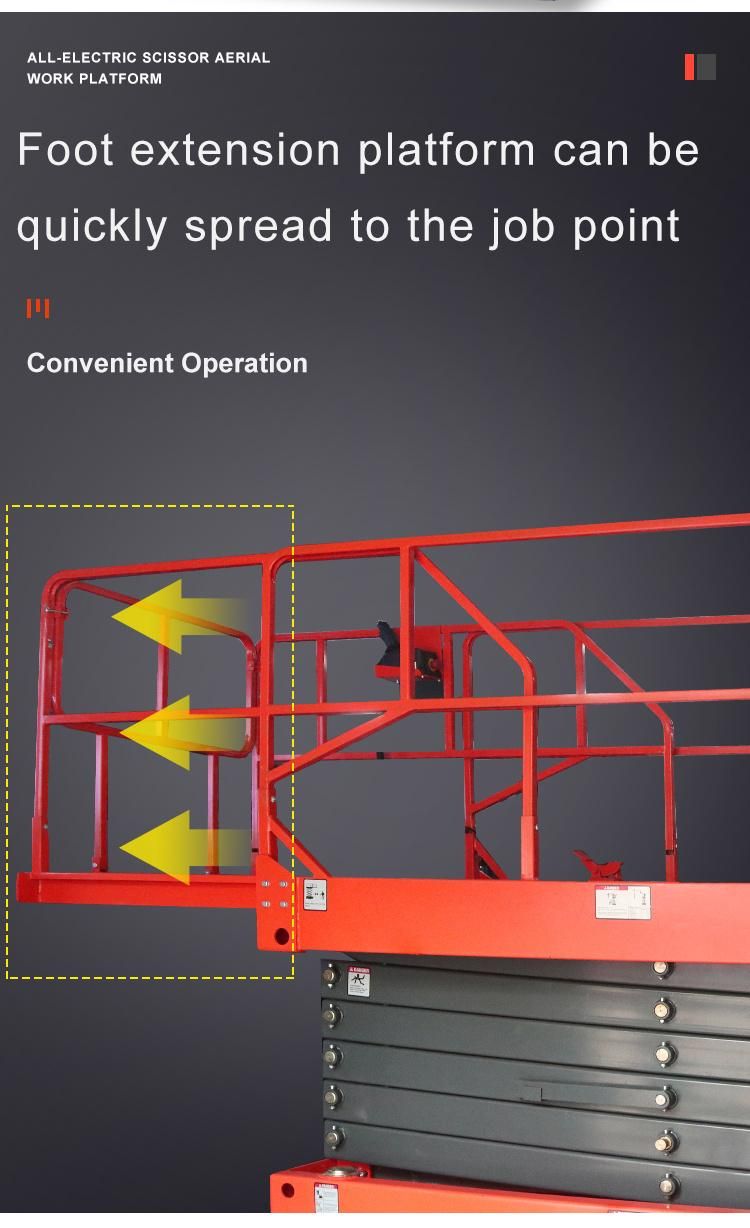

• Platform Extension Length：900mm
• Minimum Turning Radius：2000mm
• Maintenance-Free Battery：2*12V,150ah
• Charger：24V,15ah
• Whole Length：2050mm
• Whole Width：900mm
• Whole Height：2270mm
• Total Weight：1700kg
• Transport Package：by Sea,by Air
• Specification：Work Height: 8m~10m
• Trademark：Haulke
• Origin：China
• HS Code：8427900000
• Production Capacity：1000000units,Year

Basic Info.

Model NO. HKG08DQ Driven Type Hydraulic Running Mode Moving Feature Explosion-Proof, Insulating Certification CE, ISO 9001 Maximum Platform Height 8000mm Maximum Height for Machine 9100mm Lowest Height for Platform 1200mm Foundation Ground Clearance 20mm Loading Capacity 300kg Loading Capacity for Platform Extension 100kg Working Platform Size 1880*900mm Platform Extension Length 900mm Minimum Turning Radius 2000mm Maintenance-Free Battery 2*12V/150ah Charger 24V/15ah Whole Length 2050mm Whole Width 900mm Whole Height 2270mm Total Weight 1700kg Transport Package by Sea/by Air Specification Work Height: 8m~10m Trademark Haulke Origin China HS Code 8427900000 Production Capacity 1000000units/Year

Product Description

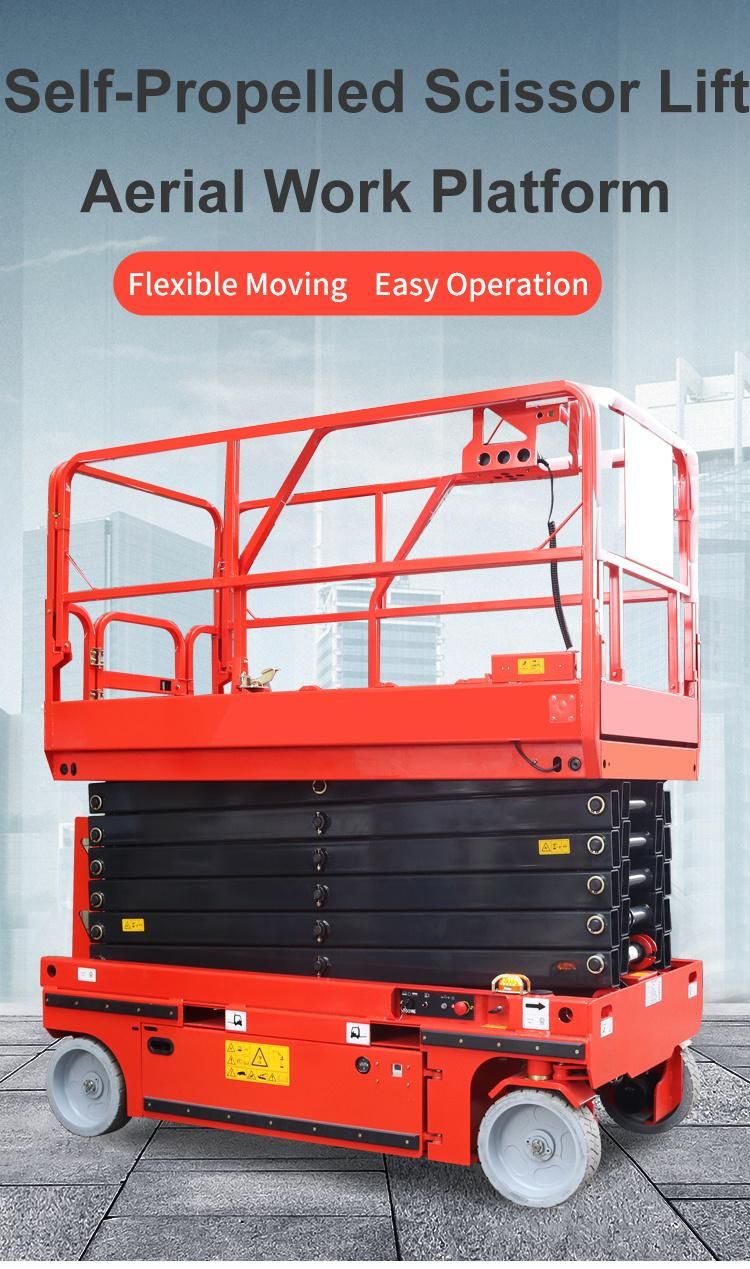

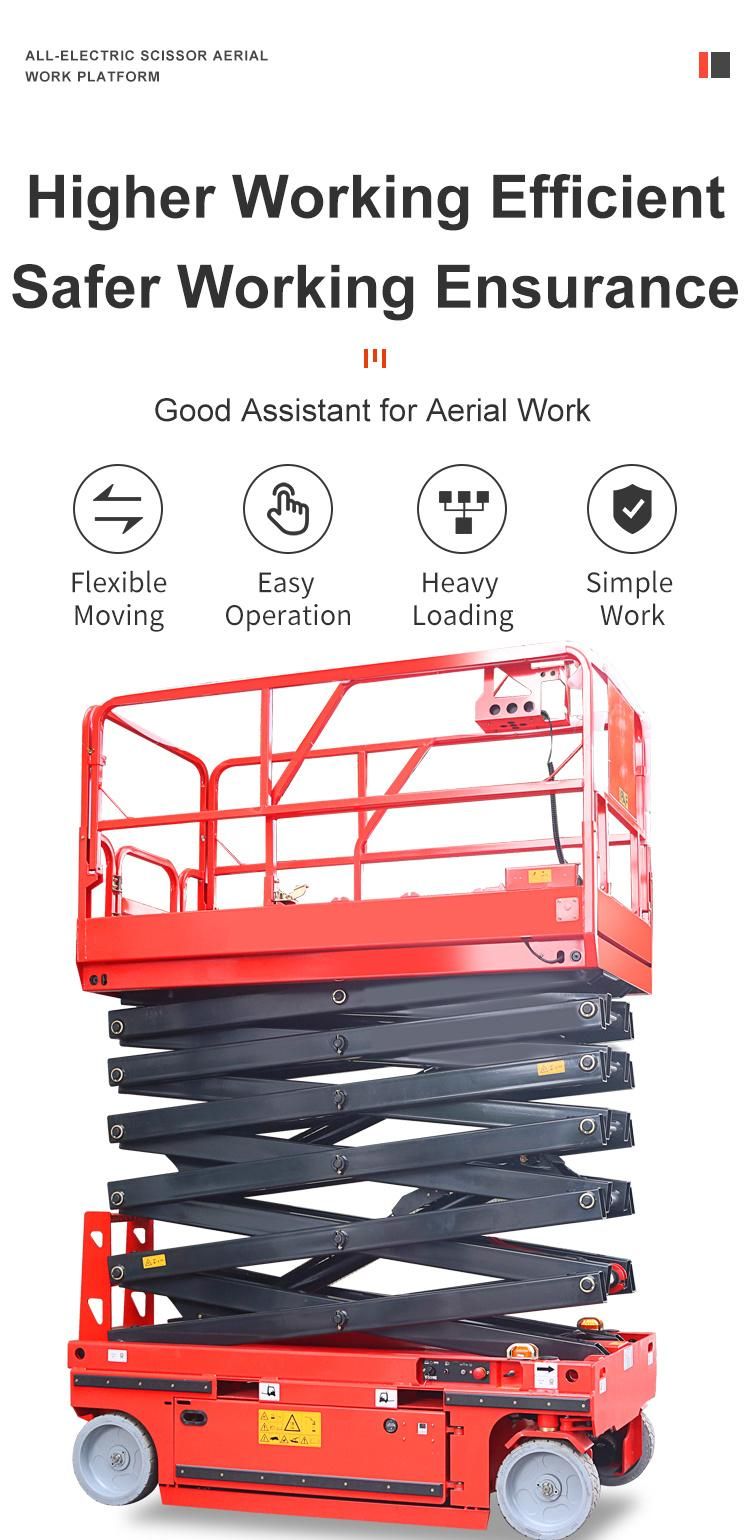

Product Description:


Technical Specification:

Model		HKG06DQ	HKG08DQ
Maximum platform height	mm	6000	8000
Maximum height for machine	mm	7100	9100
Lowest height for platform	mm	1080	1200
Foundation ground clearance	mm	20	20
Loading capacity	kg	300	300
Loading capacity for platform extension part	kg	100	100
Working platform size	mm	1880×900	1880×900
Platform extension length	mm	900	900
Maximum rriding speed (platform down)	km/h	3~4	3~4
Maximum riding speed (platform lifting)	km/h	0.6~1	0.6~1
Minimum turning radius	mm	2000	2000
Maximum gradeability	%	10~15	10~15
Driving wheel size	mm	φ305×100	φ305×100
Universal wheel size	in	φ305×100	φ305×100
Driving motor	v/kw	2×24/0.5	2×24/0.5
Lifting motor	v/kw	24/2.2	24/2.2
Maintenance-free battery	v/Ah	2×12/150	2×12/150
Charger	V/A	24/15	24/15
Pit protection system		Machine Control	Machine Control
Whole length	mm	2050	2050
Whole width	mm	900	900
Whole height	mm	2150	2270
Total weight	kg	1500	1700

Packaging & Shipping:

After Sales Service:

24-hours online consult service is available here. Once you have any questions, just contact us and our professional staff will reply very quickly.

Market information also will be provided. Since we are an experienced supplier of lift table. For seller, the market information would be very pleased to offer as long as you contact us and ask for it.

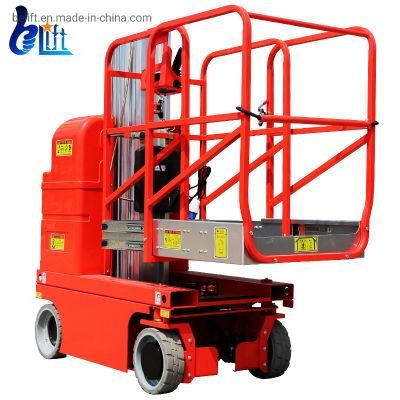

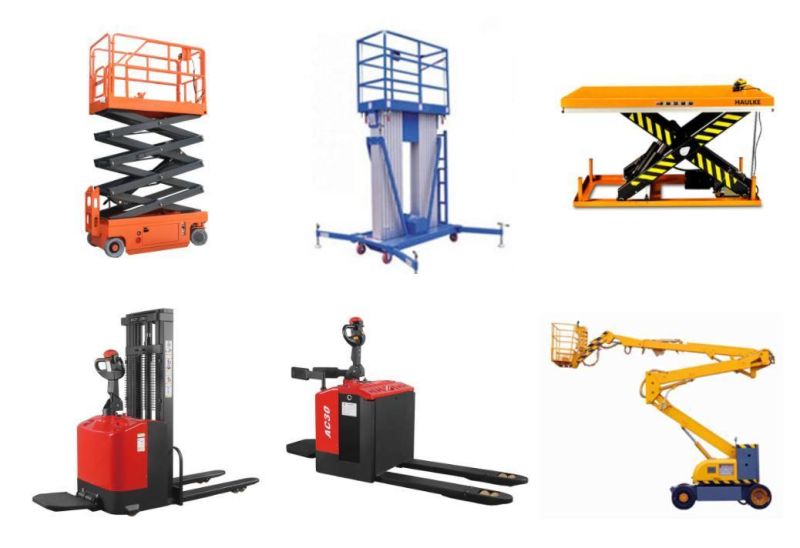

Related machines:

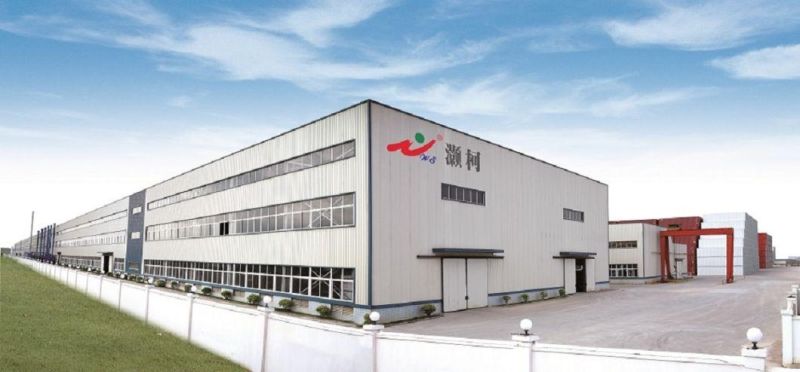

Company Profits:

Haoke is a research and development, production, sales and service in one of the professional manufacturer. Our products mainly include: aerial working platform, scissor type aerial working platform, electric lifting platform, fixed lifting platform,stacker series, lift table series, pallet truck series, forklift attachments series etc.

Our company's products have been certified by a lot of international quality certification, covering an area of 20000 square meters, the annual output has been grown to 30%. In order to better develop overseas market, we had established branch office in Russia, Japan, South Korea, Taiwan, Vietnam.

Haoke would continue to innovate and transform new technologies into products and services with international influence. With pioneering and enterprising spirit of "dare to be the first in the world", which will constantly improves its management methods to precipitate a profound enterprise.



Certificate:

FAQ:

1: How long does it take to execute my order?

Please tell us the quantity and model number of the products you are about to order, so that we will give you a detailed schedule.

2: How can I know the completion of my order?

Upon receipt of the deposit, we will immediately arrange for the shippment, after the order is completed, we will also send you the detection images of your order before delivery for you to confirm.

3: Can you arrange to deliver the goods for us?

Yes. When finish the orders, we will inform you and also we can arrange the shipping in the same time. There is LCL shipping and FCL shipping for different order term,the buyer also can choose Air-transport or Ocean shipping for your requirement. When your
orders reach your local nearest Sea port or River port, the logistics company will inform you.

4: Can you guarantee your products?

Yes, we guarantee your 100% satisfaction on all our products. Please feel free to feed back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.

5: Can I visit your company?

Of course, We always with great pleasure at your service. We have office in Shanghai, China. If you want to order our products and visit our company, please contact us to make an appointment.
