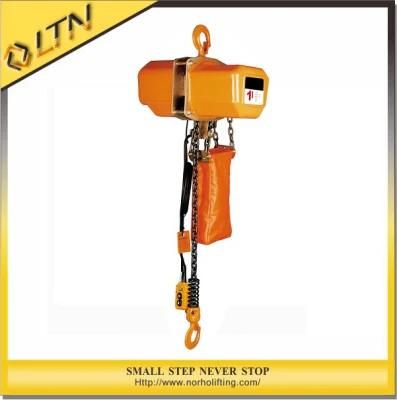

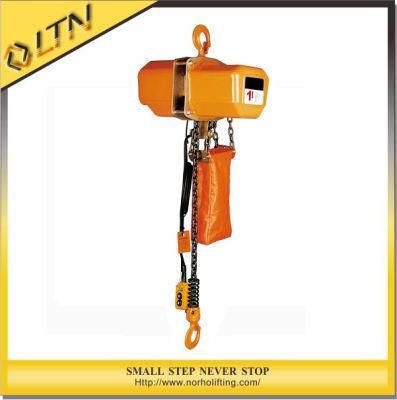

Hoist Electric (ECH-JD)
Hangzhou Nuohao Industry Co., Ltd.- Application：Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
- Type：Electric Hoist
- Sling Type：Chain
- Lift Speed：2~8m,min
- Maximum Lifting Height：12m
- Chain Falls：1
Base Info
- Model NO.：ECH-JD
- Certification：CE, ISO9001:2000, GS TUV
- Condition：Used
- Color：Yellow
- Capacity：0.5t to 3 Ton
- Transport Package：Wooden Pallet Packing
- Specification：CE GS and TUV
- Trademark：LTN Or OEM
- Origin：China
- HS Code：8425110000
- Production Capacity：5000sets,Month
Description
| Model | ECH-JD003 | ECH-JD005 | ECH-JD010 | ECH-JD020 | ECH-JD030 | ECH-JD020S | ECH-JD025 | ECH-JD03D | ECH-JD050 | ECH-JD075 | ECH-JD100 | ECH-JD150 | ECH-JD200 |
| Capacity(Ton) | 0.3 | 0.5 | 1 | 2 | 3 | 2 | 2.5 | 3 | 5 | 7.5 | 10 | 15 | 20 |
| Standard lift(M) | 3--9 | 3--9 | 3--9 | 3--9 | 3--9 | 3--9 | 3--9 | 3--9 | 3--9 | 3--9 | 3--9 | 3--9 | 3--9 |
| Proof Load(Kn) | 3.75 | 6.25 | 12.5 | 25 | 37.5 | 25 | 31.25 | 37.5 | 62.5 | 93.75 | 125 | 187.5 | 250 |
| Lifing Speed(m/min) | 8.0/4.0 | 7.8/3.9 | 6.8/3.4 | 3.4/1.7 | 2.3/1.2 | 6.8/3.4 | 5.6/2.8 | 5.6/2.8 | 2.8/1.4 | 1.9/1 | 2.8/1.4 | 1.9/1 | 1.4/0.7 |
| Travelling Motor(Kw) | 0.12 | 0.12 | 0.4 | 0.4 | 0.75 | 0.4 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75X2 | 0.75X2 | 0.75X2 |
| Travelling Speed(m/min) | 12.2 | 12.2 | 21.0/11 | 21.0/11 | 21.0/11 | 21.0/11 | 21.0/11 | 21.0/11 | 21.0/11 | 21.0/11 | 21.0/11 | 21.0/11 | 21.0/11 |
| Motor Power(Kw) | 0.55 | 0.8 | 1.5 | 1.5 | 1.5 | 3 | 3 | 3 | 3 | 3 | 3.0X2 | 3.0X2 | 3.0X2 |
| Load Chain Diamter(MM) | 6.3X19 | 6.3X19 | 7.1X21 | 7.1X21 | 7.1X21 | 10X30 | 11.2*34 | 10X30 | 11.2*34 | 11.2*34 | 11.2*34 | 11.2*34 | 11.2*34 |
| Load Chain Folls: | 1 | 1 | 1 | 2 | 3 | 1 | 1 | 2 | 2 | 3 | 4 | 6 | 8 |
| Main Diamensions(MM) A | 340 | 340 | 526 | 526 | 526 | 630 | 630 | 630 | 630 | 630 | 630 | 630 | 630 |
| B | 170 | 170 | 263 | 263 | 263 | 315 | 315 | 315 | 315 | 315 | 315 | 315 | 315 |
| C | 170 | 170 | 263 | 263 | 263 | 315 | 315 | 315 | 315 | 315 | 315 | 315 | 315 |
| D | 240 | 240 | 324 | 324 | 430 | 430 | 430 | 430 | 430 | 587 | 900 | 1050 | 1280 |
| E | 115 | 115 | 162 | 162 | 200 | 230 | 230 | 230 | 310 | 388 | 450 | 525 | 640 |
| F | 125 | 125 | 162 | 162 | 230 | 200 | 200 | 200 | 120 | 199 | 450 | 525 | 640 |
| H | 570 | 570 | 640 | 840 | 1050 | 800 | 960 | 960 | 980 | 1050 | 1250 | 1290 | 1290 |
| L | 30 | 30 | 35 | 40 | 50 | 40 | 50 | 50 | 50 | 75 | 75 | 80 | 106 |
| J | 30 | 303 | 35 | 40 | 50 | 40 | 50 | 50 | 50 | 75 | / | / | / |
